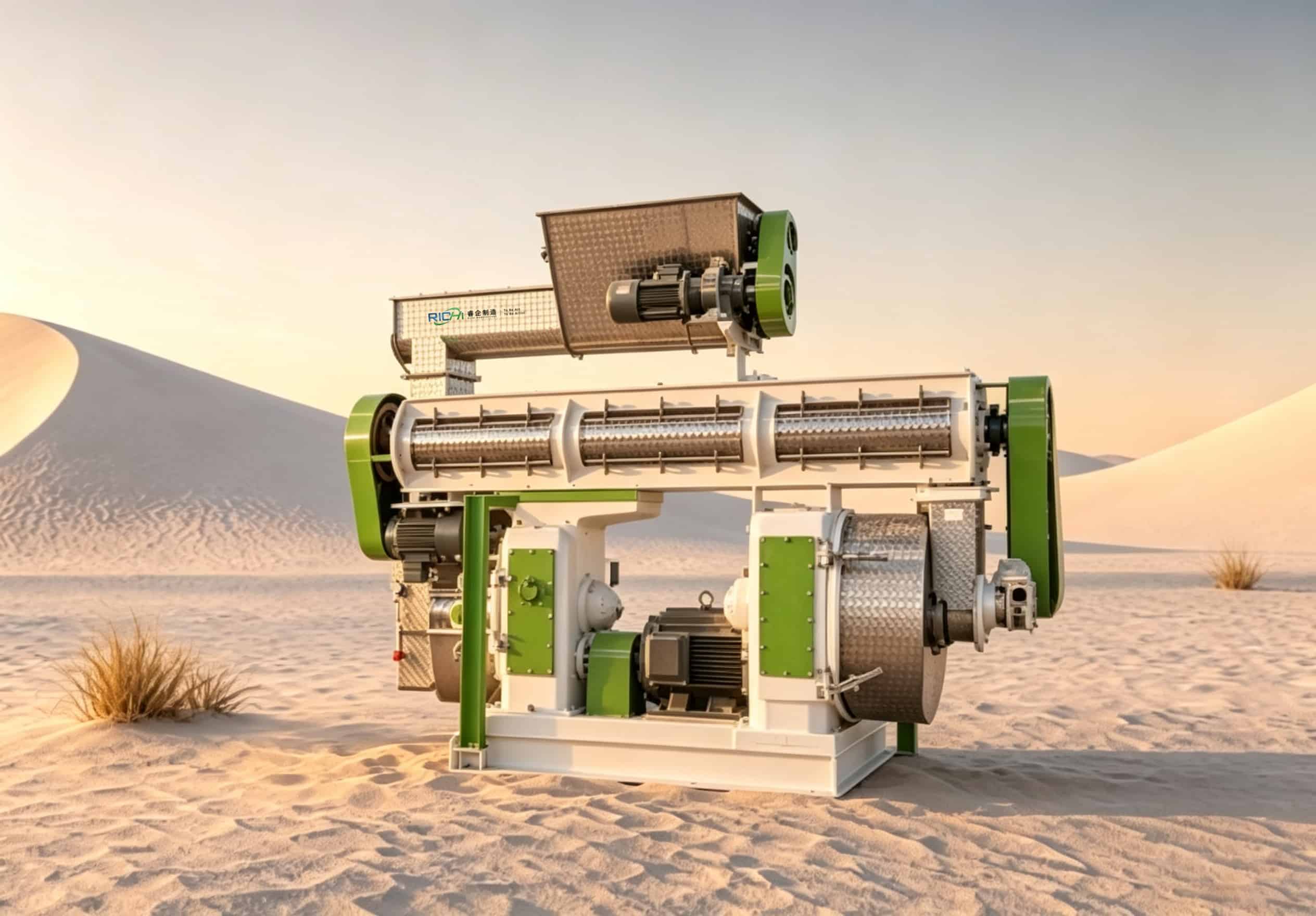

alfalfa pellet machine
production process video of alfalfa pellet machine
Environmental Production & High-Value Pellets.
The RICHI alfalfa pellet making machine can turn a variety of alfalfa into clean energy pellets with different sizes, ranging from 4mm to 12mm in diameter. We have experienced engineers and advanced equipment to ensure the entire production process is clean and efficient. Relying on premium-quality manufacturing, the pellet hardness, size, powder content, and combustion efficiency all meet industrial standards. This video shows the basic pelleting process.
Production Capacity:
0.5-8T/H
Pellet Diameter:
4-12mm
parameters of
alfalfa pellet machine
RICHI has many models of alfalfa pelleting machines with varying production performance. You can select the models that perfectly match your production requirements.
| Model | CZLH320 | CZLH350 | CZLH420 | CZLH520 | CZLH678 | CZLH768 |
| Output (t/h) | 0.5-0.6 | 1.0-1.2 | 1.8-2.0 | 2.8-3.0 | 4-5 | 6-8 |
| Main Motor Power (kw) | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking Feeder Power (kw) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Ring Die Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
applications of formed alfalfa pellet
The RICHI alfalfa pelletizer machine has wide applications, covering feeding animals, heating, generating electricity, and serving as organic fertilizer. The following applications may offer you some reference.
Animal Bedding
Alfalfa can serve as animal bedding pellets for cats, hamsters, guinea pigs, rabbits, etc. The finished pellets have high water absorption performance, which can provide a clean and comfortable environment. Our alfalfa pellet machine can supply different pellet sizes.
Animal Feed
Alfalfa is a kind of premium raw material for producing animal feed. Animals, especially ruminants, such as cattle and sheep, are all fond of eating alfalfa pellets. The finished pellets will help them stimulate and maintain a good digestive system.
Organic Fertilizer
Alfalfa is a kind of superior organic fertilizer. The alfalfa pellets contain abundant trace elements, including nitrogen, phosphorus, potassium, calcium, etc. It can degrade naturally, helping retain moisture and suppress weed growth to improve soil quality.
Clean fuel energy
The finished alfalfa pellets can be used as an optimal clean energy source. The heating companies and enterprises can use them to heat or generate power. They can achieve higher heat output than traditional fuels with low particulate pollution.
Main Components of
RICHI Alfalfa Pellet Machine

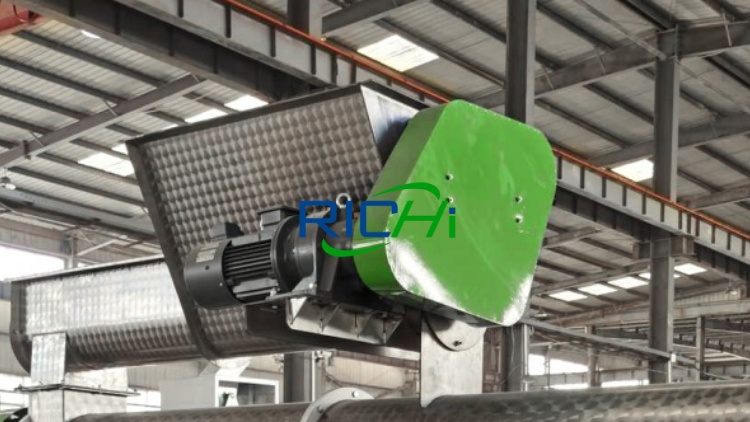

Variable Frequency feeder
The RICHI variable frequency feeder is equipped with a variable frequency motor. When raw materials enter the feed inlet, it will help feed stably and uniformly. This design effectively prevents the problem of some alfalfa being too light to feed properly.

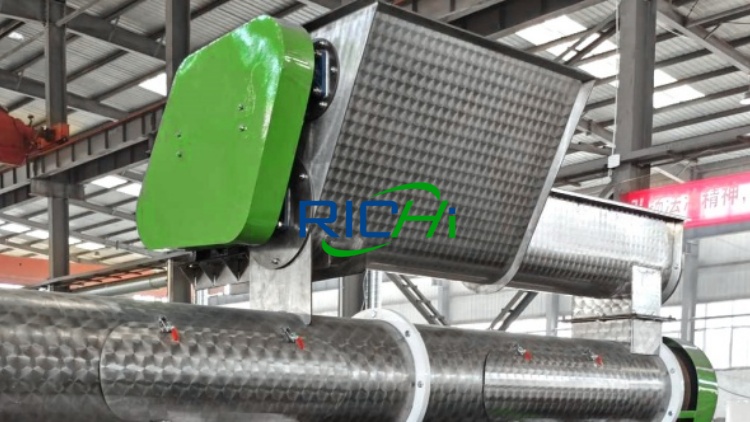

Arch-Breaking Feeder
The freshly crushed raw materials are usually light, which results in the problem of arching easily. The arch-breaking feeder can prevent the raw materials from arching or clumping into large lumps. This will improve the utilization rate of raw materials.

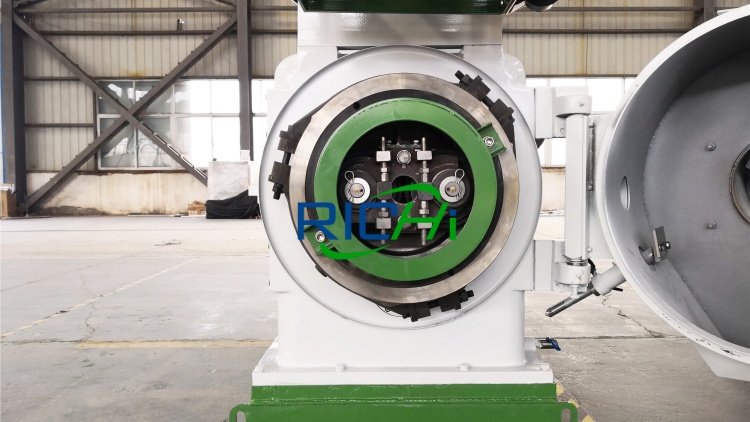

Ring Die & Roller
The ring die and rollers are the key devices of pelleting. By controlling the different ring die specifications and compression ratios, you can get various sizes of alfalfa feed pellets. Our ring die adopts many innovative designs, which can efficiently prevent cracking under high pressure and increase output.

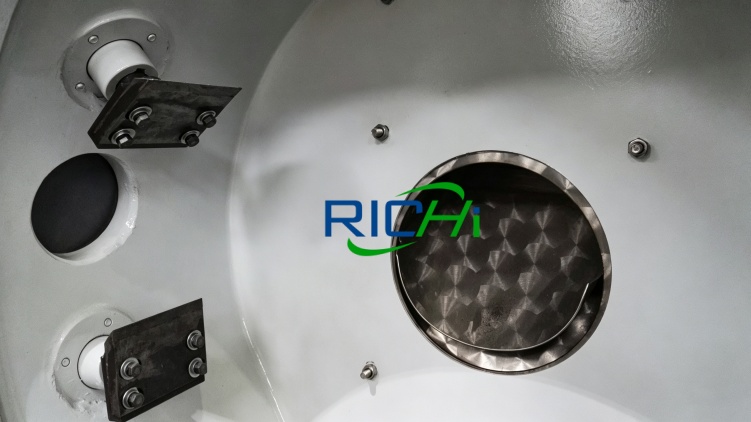

Cutting Blade Device
The cutting blade device will help control the length of formed pellets. By adjusting the different sizes of the cutting blade device, you will get various finished pellet sizes. You can freely adjust it based on different production needs.

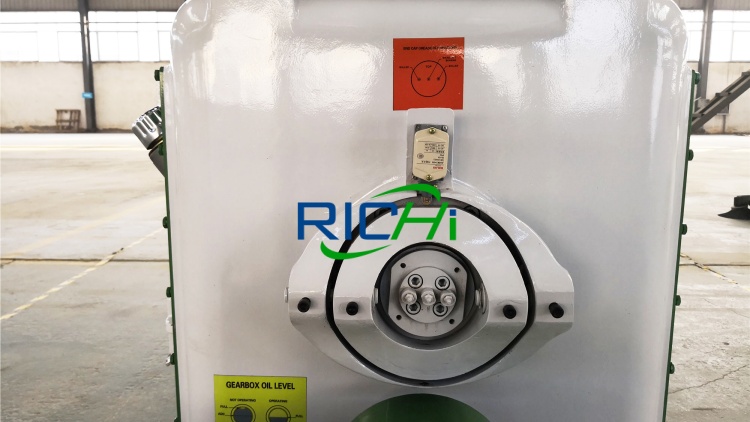

Safety Pin Device
The RICHI alfalfa pellets machine has a safety pin device. It will shut off automatically if the pressure is excessive. In addition, it will help disconnect the power. This will protect critical parts from serious damage.
global project cases
Our alfalfa pellet machine has been widely used in over 90 countries and regions. The following cases intuitively show the real effectiveness and application value. This will provide a valuable reference for your equipment selection and application.

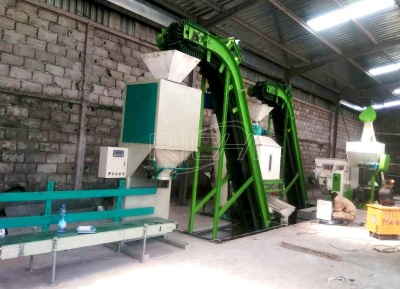

1-2 T/H Alfalfa Pellet making machine In Bangladesh
The client is a local biomass processing plant. The raw materials they process are very varied, covering alfalfa, grass, straw, wood, rice husk, etc. The client wants a complete and fully automated biomass production line. We dispatched 3 engineers to help them complete the entire production line. The production line has excellent production efficiency and stable output.
- Raw materials: alfalfa, grass, straw.
- Finished Pellet Diameter: 4-9 mm
- Pellet Machine Model: CZLH-420

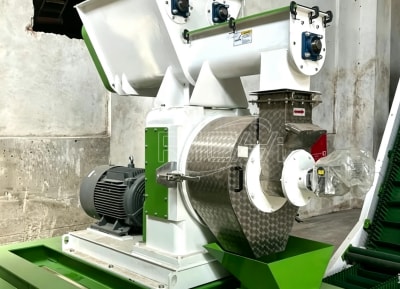

0.6-1.5 T/H Alfalfa Pellet making machine In Italy
The main raw material that the client owns is alfalfa, along with smaller amounts of straw. They have an existing production line, but with serious arching problems and lower pellet integrity. We redesigned the production line based on these issues and equipped it with an arch-breaking feeder, pellet mill, and other related equipment. The client was very satisfied with the result.
- Raw materials: alfalfa, wheat straw, etc.
- Finished Pellet Diameter: 6-8 mm
- Pellet Machine Model: CZLH-350

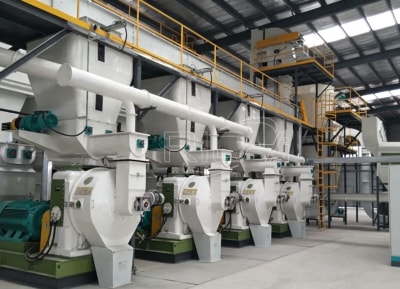

3-5 T/H Alfalfa Pellet making machine In Georgia
The client is a specialized grass pellet production plant. They mainly supply pellets to power plants, heating companies, and livestock farms in the surrounding areas and countries. Their existing issue is uneven pellet size. We provide them with a new pellet machine, along with remote online installation and operation guidance. The final pellets are uniform in size and high in density.
- Raw materials: alfalfa, straw, sawdust.
- Finished Pellet Diameter: 6-12 mm
- Pellet Machine Model: CZLH-678
Advantages of alfalfa pellet machine
Wear-Resistant Alloy Steel Design
The entire alfalfa pellet mill1 is equipped with high-efficiency Siemens motors and high-wear-resistant alloy steel rings. These designs provide our machines with a lower failure probability, lower maintenance costs, and longer service life.
Energy Saving & Environmentally Friendly
Except for alfalfa, our alfalfa pellets machine can process various raw materials, such as straw, rice husks, peanut shells, etc. The machine will change these wastes into clean energy. In addition, we use high-quality imported bearings and oil seals, ensuring efficient, stable, and low-noise operation.
Simplified Maintenance Design.
The RICHI alfalfa pellet mill for sale adopts a fully modular construction. All components can be assembled and maintained easily. If the key components are out of order, you can only replace or maintain the damaged parts. This will minimize equipment maintenance costs.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
