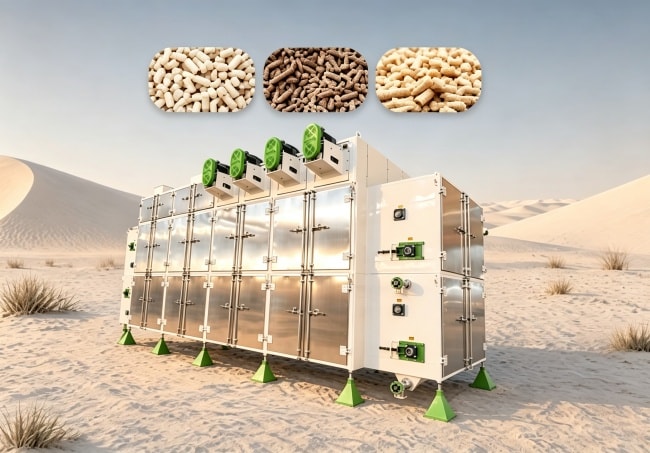

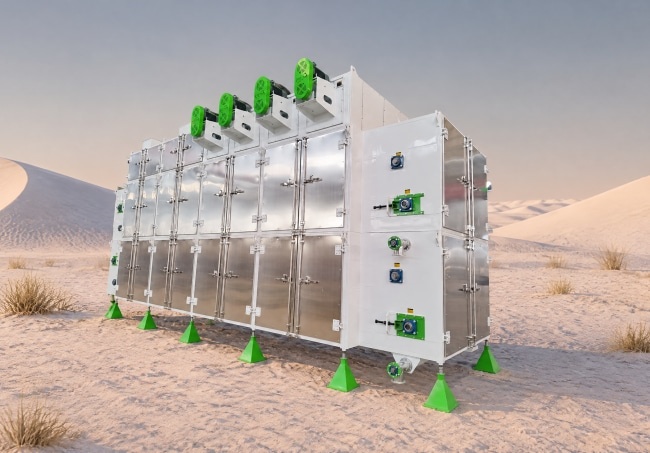

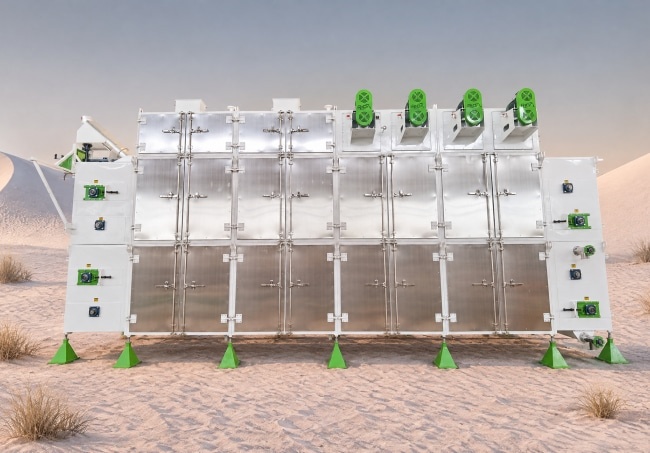

Animal Feed Dryer
production process videos of Animal Feed Dryer
Excellent flexibility and adjustability.
Our feed dryers are very flexible. They can dry various animal feeds with almost no damage. The dried feed pellets are denser and more integrated, ensuring low powder content. What’s more, we have a complete feed dryer system. The water content of the formed feed pellets will be maintained at a level between 2%-10%. The real drying degree can be adjusted based on your production needs. You can learn about the specific drying process from these videos.
production Capacity:
2-12 T/H
drying power:
44.3-71.8 kw
main auxiliary equipment
of RICHI feed dryer system

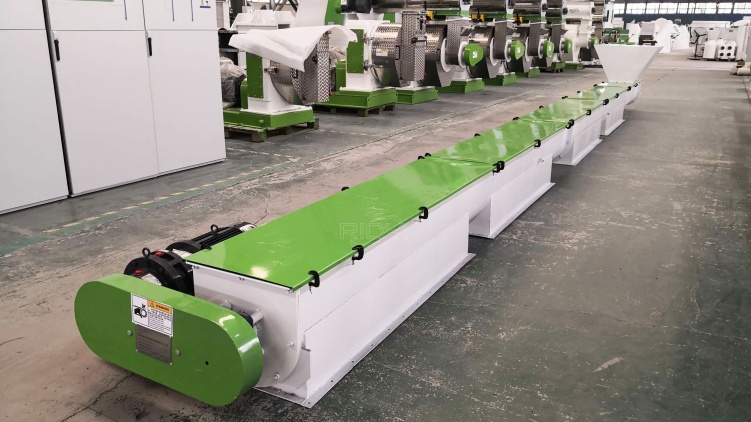

screw conveyor
The screw conveyor can help convey various raw materials to the animal feed dryer machine. It features large capacity, dust control, low noise, and reliable operating performance.

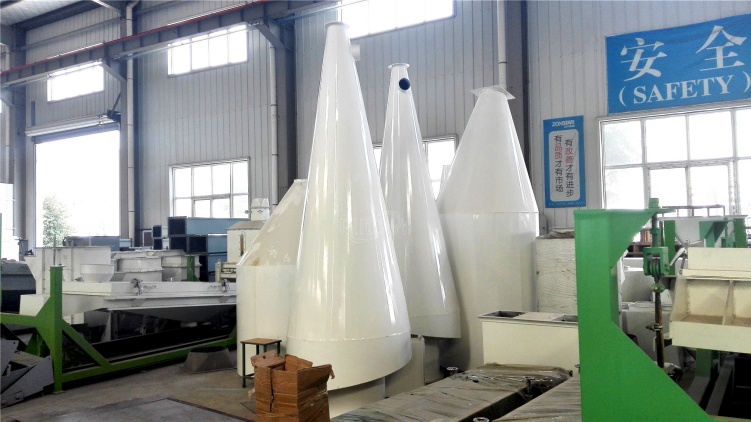

cyclone separator
The main function of the cyclone separator is to help remove powder during the production process. This is helpful to ensure clean production. In addition, this will improve the finished feed quality.

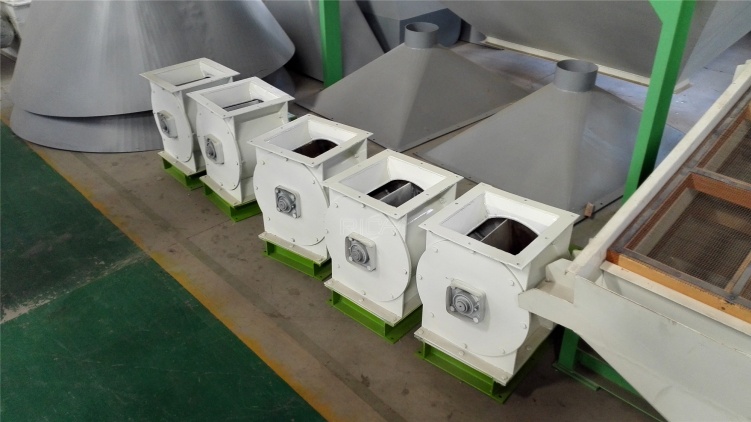

rotary valve
It can prevent a large amount of external air from being drawn back into the dust collector, maintaining stable air pressure. This will guarantee that the material discharge is quantitative and uniform.

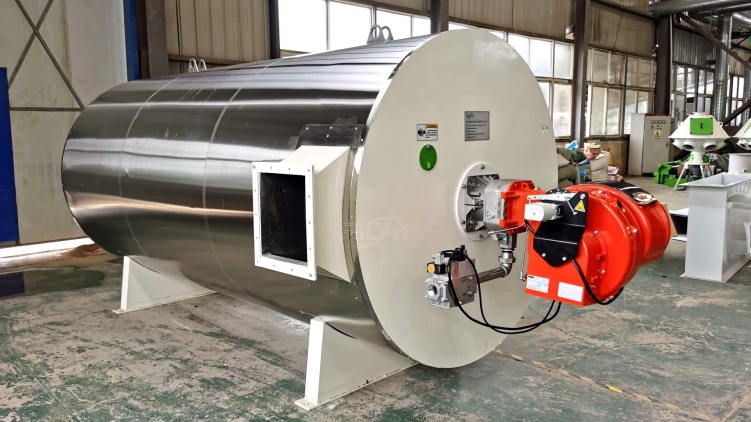

Hot blast stove
The hot blast stove can heat cold air and then transport hot air to the feed dryer. This gradual heating method can ensure high drying quality. In addition, it will prevent formed feed pellets from cracking.

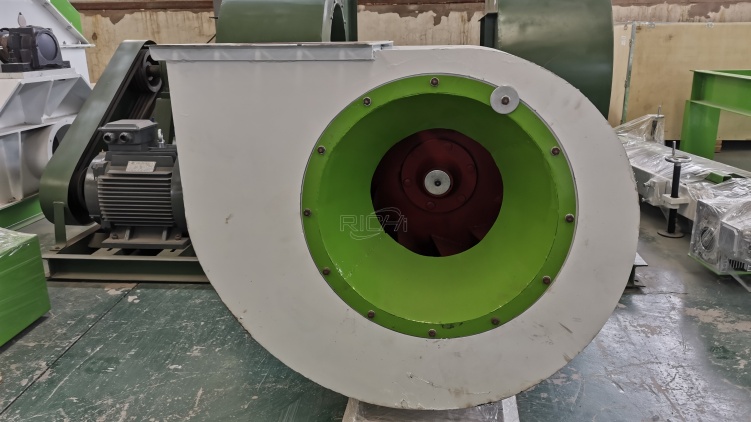

Centrifugal fan
On the one hand, the centrifugal fan can help convey materials stably and efficiently. On the other hand, it can assist in conveying powder into dust removal device, preventing dust from escaping.
parameters of
animal feed dryer
Mesh-belt circulating dryer
| Model | WDHG150-4/2 | WDHG200-4/2 | WDHG200/4-4 | WDHG220/6-4 |
| Power（kw） | 44.3 | 49.80 | 61.65 | 71.80 |
| Steam Consumption | The steam consumption for expanded feed is 140–160 kg per tonne, with a steam pressure of 0.5–0.6 MPa. | |||
| Number Of Mesh Belt Layers | 2 | 2 | 4 | 4 |
| Mesh Belt Width (m) | 1.5 | 2 | 2 | 2.2 |
| Drying Area (m²) | 30 | 40 | 80 | 124 |
Mesh-belt dryer
| Model | DHG-400 | DHG-500 | DHG-1000 | DHG-2000 | QHG-500 | QHG-1000 | QHG-2000 |
| Heating Method | Electric heating | Electric heating | Electric heating | Electric heating | Steam heating | Steam heating | Steam heating |
| Power（kw） | 40+0.55*4+0.55 | 50+2.2*2+0.75 | 70+2.2*3+1.5 | 132+2.2*3+1.5 | 2.2*2+0.75 | 2.2*3+1.5 | 2.2*3+1.5 |
| Number Of Mesh Belt Layers | 5 | ||||||
| Mesh Belt Width (m) | 0.8 | 1.0 | 1.2 | 1.6 | 1.0 | 1.2 | 1.6 |
| Drying Area (m²) | 13 | 21 | 43 | 58 | 21 | 43 | 58 |
Types of animal feed we can dry
The RICHI animal feed dryer can process various feed types, including but not limited to poultry, ruminants, pets, and aquatic animal feed. The following are some specific animal feeds and their final drying effects.
poultry feed
The poultry includes various chickens, ducks, geese, etc. These animal feed pellets need to be dried before packaging. The dried poultry feed will be denser, smoother, more integrated, and fragrant.
ruminant feed
The ruminant feed needs a lot of fiber raw materials to promote the digestive systems of cattle, sheep, or other ruminants. After drying, the formed feed pellets are easier to store and transport.
pet feed
The water content of dried pet feed pellets will be controlled below 12%. The dried pet feed pellets are suitable for dogs, cats, and other pets to eat. What’s more, the nutrients will be preserved to the maximum extent.
aquatic animal feed
During drying, Salmonella and Escherichia coli will be removed due to the high temperature. This will make the finished pellets safer and more nutritious. They meet the feeding preferences of aquatic animals.
advantages of animal feed dryer
High-efficiency drying.
Our animal feed drying machine uses a multi-layer mesh belt design. This design can add drying area and prevent material caking efficiently. In addition, we adopt an imported PET woven conveyor belt. The actual drying efficiency increases by over 25%.
Automatic Control.
The hot air temperature can be adjusted automatically. You only need to input the maximum and minimum temperatures. Then the solenoid valve will help precisely control the amount of steam that flows to the dryer. This will achieve efficient drying and low labor costs.
Dry evenly.
The hot drying air utilizes a circulation method featuring opposing left-right flows and vertical convection. This will improve the drying uniformity of feed pellets. The actual moisture error rate can be maintained below 2%. The dried feed pellets always have higher quality and integrity.
global project cases for reference
The RICHI animal feed dryer has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This may provide a valuable reference for your equipment selection.

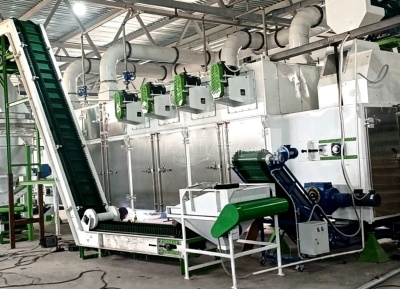

10-12 T/H animal feed production line dryer in India
This is a ruminant feed production line. The client has abundant agricultural resources. Their main raw materials are wheat, corn, soybean meal, and rich straw. We provided them with a crusher, mixer, granulator, dryer, and conveying system. The feed dryer is a mesh-belt dryer with hot circulating air. It has a large drying area, ensuring high drying efficiency. What’s more, it is very energy-saving.
Feed Dryer Models: WDHG200/4-4
Feed Dryer Power: 61.65 kw
Finished Pellet Diameter: 4-12 mm

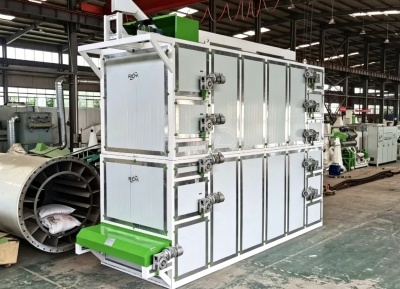

6-8 T/H animal feed production line dryer in Italy
This is a customized poultry feed production line. It can supply both pellet and powdered feed. The client has an existing production line. However, the finished pellet drying effect is poor. Many finished pellets crack very easily. This new production line is equipped with a high-efficiency dryer. It can achieve granular and uniform drying. The dried pellets are smooth, dense, and integrated.
Feed Dryer Models: WDHG150-4/2
Feed Dryer Power: 44.3 kw
Finished Pellet Diameter: 1-8 mm

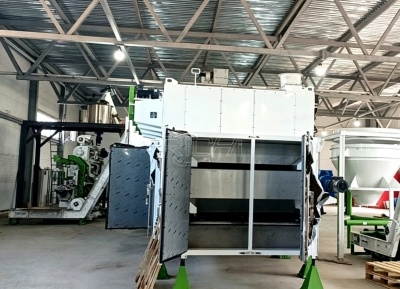

1.5-3 T/H animal feed production line dryer in Costa Rica
The client is a local chicken feed supplier. Their existing line is not easy to achieve uniform and thorough drying. We provided them with a mixer, granulator, and a dryer. This is a multi-layer drying oven. Its drying process IS gentle and efficient. The finished feed pellets can maintain a suitable drying level with high integrity. The drying temperature is adjustable. The client is very satisfied.
Feed Dryer Models: QHG-500
Feed Dryer Power: 2.2*2+0.75 kw
Finished Pellet Diameter: 2-10 mm
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
Previous
NEXT
Frequently Asked Questions
Below is a compilation of frequently asked questions from customers regarding the purchase of our pellet-making machine. If you have any questions, please feel free to contact us.
