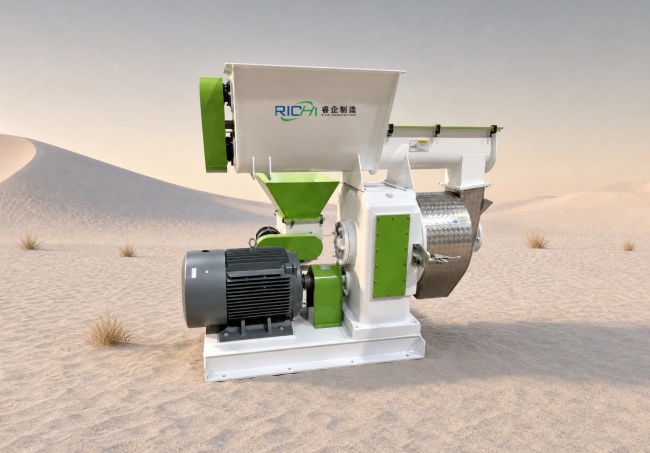

Cat Litter pellet Machine
Production process video of cat litter Pellet machine
High Safety & excellent environmental Performance.
The RICHI cat litter machine persists in adopting natural, non-toxic raw materials such as corn cob, birch wood shavings, or poplar wood shavings. They usually have superior safety and deodorizing performance. What’s more, our cat litter has a high-efficiency dust removal system with low environmental impact. Even if the animals chew on the bedding, it has no negative impact on them. The video shows its entire pelleting process.
Production Capacity:
1-40T/H
Pellet Diameter:
2-12mm
Parameters of
Cat Litter Pellet Machine
We have a minimum output capacity of 1.0 T/H and a maximum of 40 T/H. You can select the pellet machine models that perfectly match your production requirements. The following are some specific parameters of our cat litter making machine.
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Motor Power (kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Output (t/h) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
types of Cat Litter we can provide
The RICHI cat litter pellet machine can produce a variety of cat litter, including but not limited to bentonite, tofu, and wood cat litter. The following types of cat litter may give you some references.
Bentonite Cat Litter
Bentonite cat litter has high water absorption performance. It can promote cat litter clumping rapidly. What’s more, it is soft and comfortable, which highly meets the preferences of cats.
Tofu Cat Litter
The tofu cat litter is made mainly of soy pulp, corn flour, pea fiber, etc. The finished cat litter pellets can degrade naturally. They are very environmentally friendly. They are beneficial for the cat’s health.
Wood Pellet Cat Litter
Wood pellet cat litter is made of various woods or grasses. These raw materials have superior clumping and deodorizing performance with low powder content. They can ensure a clean living environment.
Mixed Cat Litter
This type of cat litter is made of various raw materials, such as wheat starch, activated carbon, cassava, corn cobs, paper waste, and minerals. The finished pellets are very economical.
main components of
Cat Litter Pellet Machine

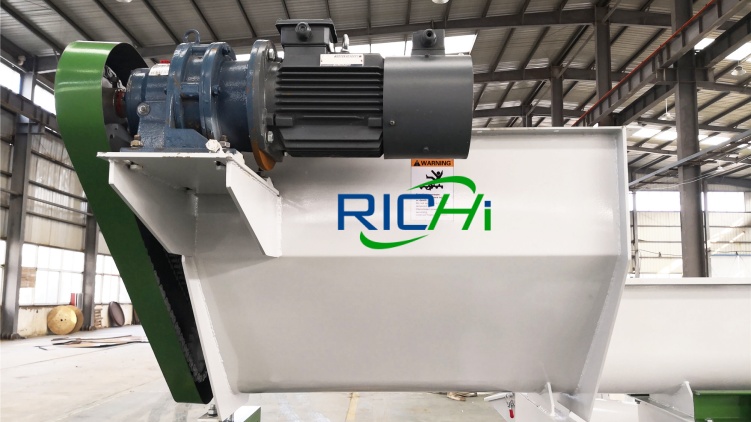

Variable Frequency Feeder
The RICHI cat litter pellet mill is equipped with a variable frequency feeder. It can control the feeding speed to ensure that all raw materials can be pushed uniformly into the granulator. You can adjust the variable frequency feeder to control the actual feeding speed.

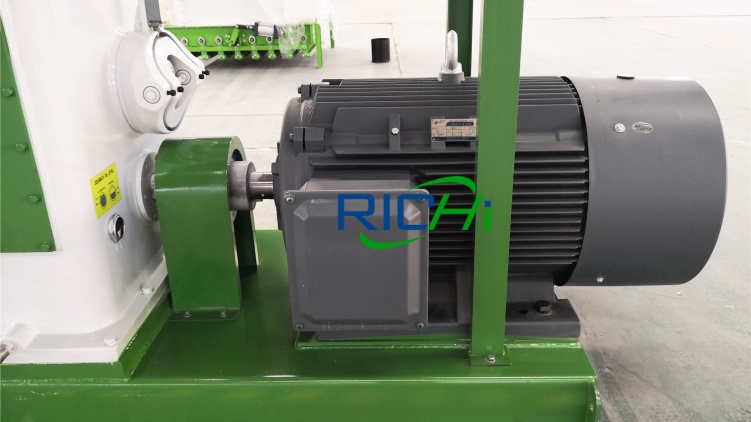

Siemens Motor
Our cat litter pellet mill adopts superior Siemens motors. They provide our machine with a low wear rate and a long service life. What’s more, the motors have a strong load-bearing capacity. They can maintain stable operation even in an excessive pressure environment.

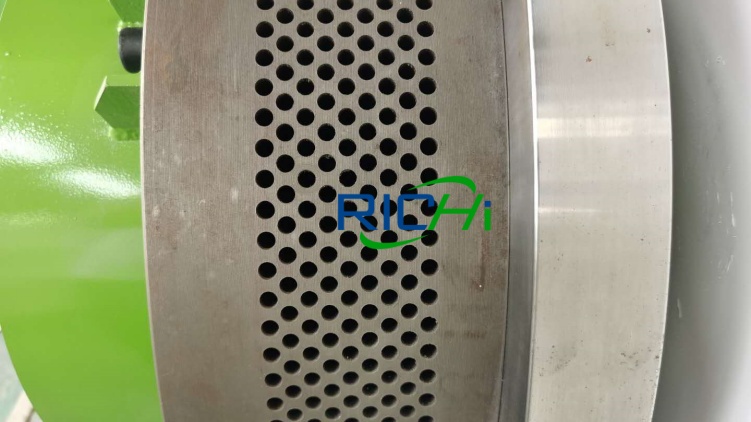

Ring Die
The RICHI cat litter pellet machine adopts high-quality stainless steel ring dies. We have different diameters of ring dies. You will get different cat litter pellet sizes by changing the specifications of the ring dies. The diameter of the finished pellets ranges from 2mm to 12mm.

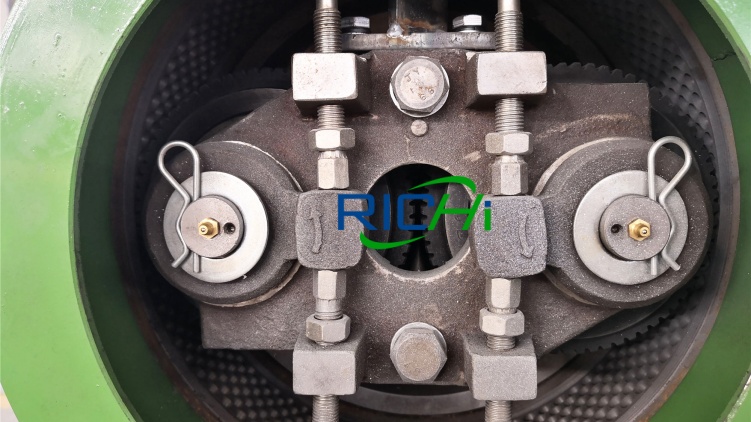

Pressure Roller
The pressure rollers will help push the raw materials into different die holes. They can control the compactness of finished cat litter pellets. They will help produce high-quality pellets in collaboration with ring dies. You can adjust the compression ratio to control the pellet density.

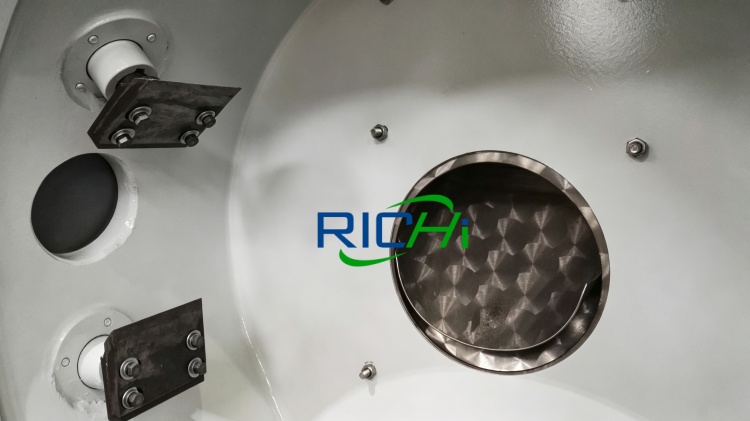

Cutting Blade Device
The cutting blade device can be used for controlling the length of finished cat litter pellets. You can customize the cutting blade with different shapes. They can help you get different cat litter pellet sizes.
global Project cases
Our cat litter pellet machine has been widely used in many countries and regions. The following cases intuitively show the real effectiveness and application value. This provides a valuable reference for your equipment selection and application needs.

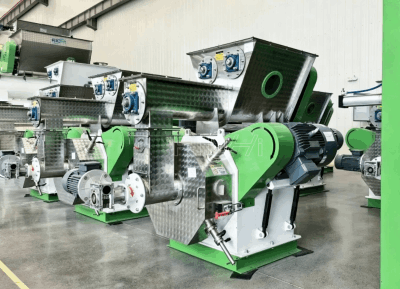

1.5 T/H paper scraps Cat Litter Pelletizing Project In Turkey
The client is a local wood processing plant. They have a stable supply of waste paper. These raw materials were mainly thrown away as waste. However, the client now wants to add cat litter production equipment to improve resource utilization. We designed a complete cat litter production project for them, which can also produce bedding pellets suitable for rabbits, hamsters, and other small animals.
- Raw materials: waste newspapers, wrapping paper, discarded packaging boxes, etc.
- Finished Pellet Size: 2-7 mm
- Pellet Machine Model: MSZLH-250

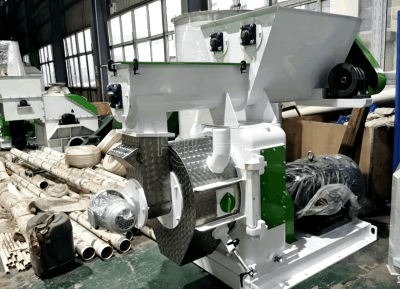

1-2 T/H Cat Litter Pelletizing Project In Malaysia
The client has abundant agricultural resources, mainly cassava and corn. Due to the limitations of the equipment, the cat litter usually had high dust content and uneven pellet size, which limited their market competitiveness. They wanted an automated cat litter pelletizer that could effectively process cassava, corn, and other crops. The finished pellet must be accompanied by low dust, a soft texture, and uniform pellet size.
- Raw materials: cassava, corn, wheat, bentonite, etc.
- Finished Pellet Size: 2-10mm
- Pellet Machine Model: MSZLH-250

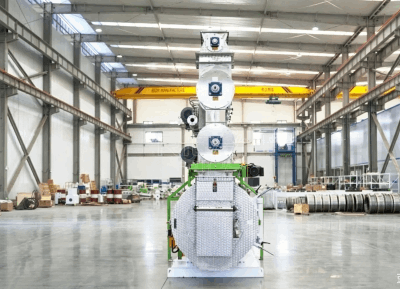

0.8-1.5 T/H Tofu Cat Litter Pelleting Project In Sweden
The client is a large local animal bedding processing plant with abundant bentonite resources. However, traditional bentonite cat litter has a high dust content. With the booming pet economy, the client wanted a fully automated cat litter making machine with low dust and strong odor control. We helped them improve the formulas. In addition, our technical team provided them with remote guidance on operation.
- Raw materials: soybean, bentonite, cassava, corn, etc.
- Finished Pellet Size: 4-10mm
- Pellet Machine Model: MSZLH-250
Advantages of Cat Litter Pellet Machine
Strengthen Safety Production
The RICHI cat litter pellet mill is equipped with a vibration-damping structure, ensuring the spindle system can continuously operate over 72 hours. In addition, the mill has a safety device. It will automatically shut off power in case of excessive pressure or resistance, preventing damage to critical components.
Stable and Adjustable Output
We have many models of the cat litter making machine. They have high-efficiency Siemens motors and high-quality bearings. They can ensure stable operation and output. You can also freely adjust the ring die diameters and compression ratios to produce different pellet sizes. We also offer customized pelleting solutions according to your production needs.
High Environmental Performance
We have pulse dust collectors to remove dust. Our entire production line operates in an enclosed environment. This can effectively prevent cross-contamination. What’s more, the finished pellets have low powder content, which will have almost no impact on the environment.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
