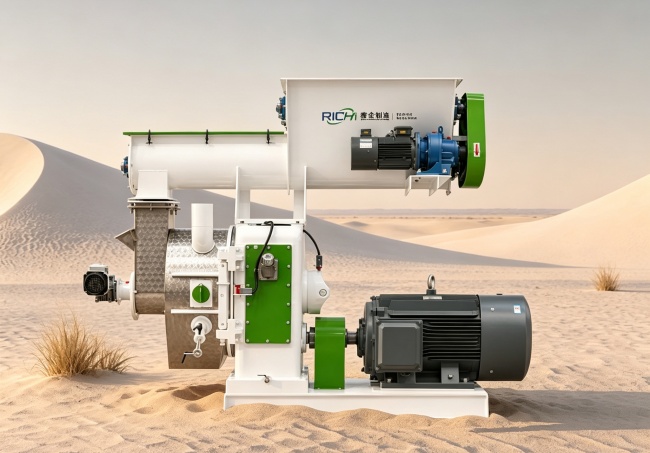

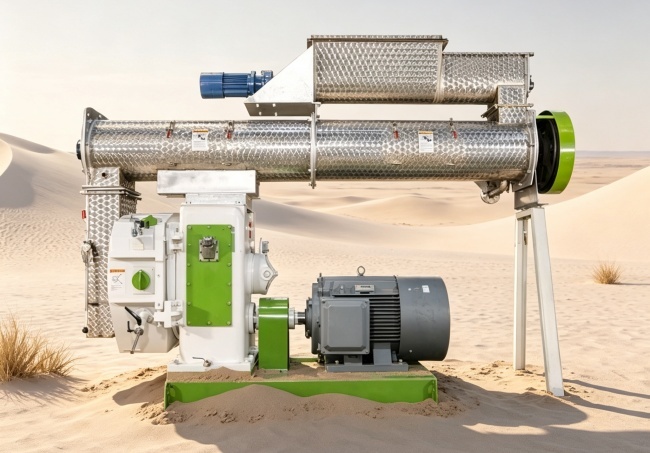

Cattle Feed Pellet Mill
Production process video of Cattle Feed Pellet Mill
wide raw materials and formulas compatibility.
Our cattle pellet machine is compatible with a wide range of raw materials, including corn, wheat, barley, sorghum, soybean meal, rapeseed meal, cottonseed meal, peanut meal, corn stalks, wheat straw, rice straw, wheat hulls, etc. Regardless of the fiber or water content, our machine can process them well. This means our granulator can precisely and efficiently process various formulas. The finished pellets are always dense, smooth, and uniform. They more closely meet the feeding preferences of cattle. These videos show our feed pellet machine and its pelleting process.
production Capacity:
1-40 T/H
pellet diameter:
2-12 mm
main components
of Cattle Feed Pellet Mill

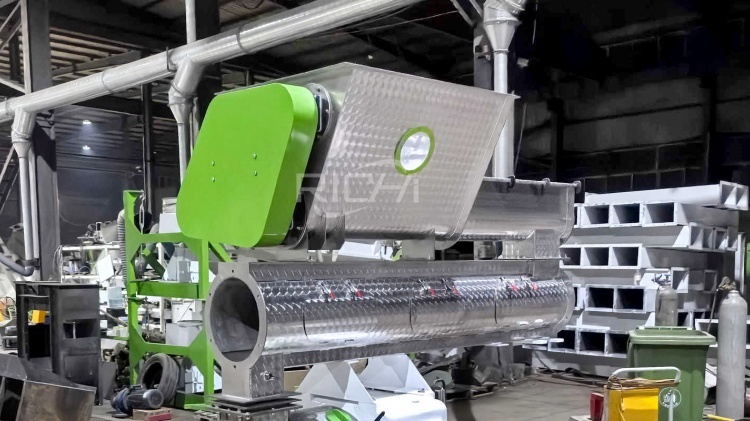

forced feeder
The RICHI cattle feed pellet making machine is equipped with a forced feeder. It can force and uniformly push different raw materials into the conditioner machine. This will minimize uneven feeding and raw material consumption. The rotational speed can be freely adjusted based on your production requirements.

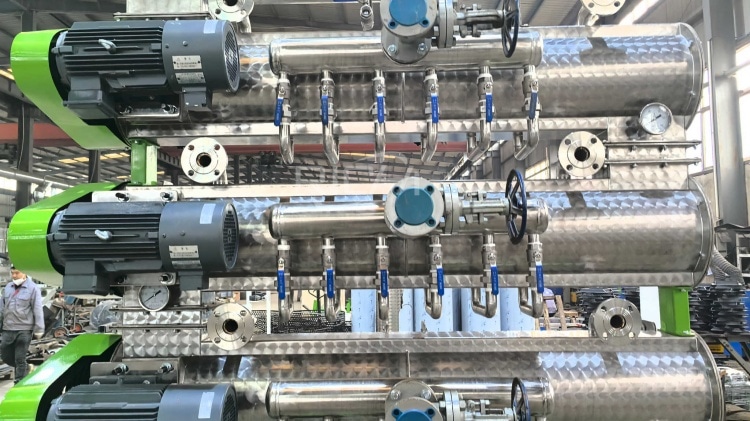

conditioner
When the raw materials enter the conditioner, they will be mixed with injected steam. After conditioning, the raw materials will become softened with even water content. Their gelatinization and ripening degree will also be improved. This will reduce the digestive burden of cattle.

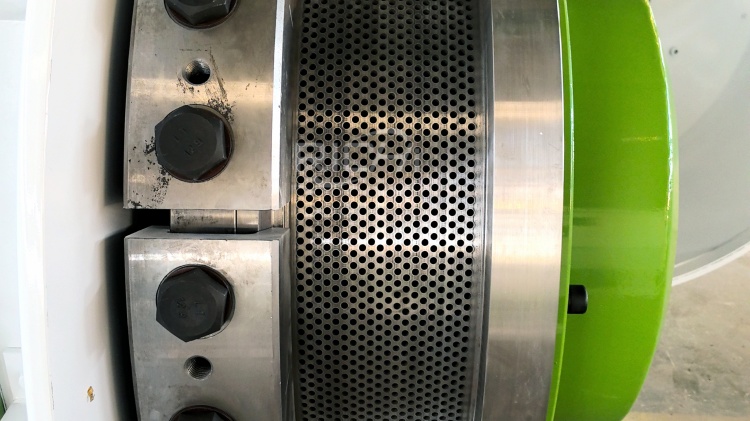

ring die
The ring die is the core component for pelleting. It can control the size of finished cattle feed pellets. Our pellet machine for cattle feed can supply pellets with diameters of 2-12 mm. You can select the suitable sizes according to your feeding needs.
pressure roller
The pressure roller can determine the density of different feed pellets. In addition, it can help push the raw materials into the ring die. Different pressure ratios will produce different densities. The pressure ratio can also be adjusted.
cutting blade device
Our cutting blade is made of stainless steel, ensuring it can serve for several years. Its main function is to cut the formed pellets to a uniform size. The shape of our cutting blade device can be customized.
parameters of
Cattle Feed Pellet Mill
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main Motor Power ( kW ) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power (kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Granule Diameter (mm) | 2~12 | |||||||
| Output（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
types of feed we can provide
The RICHI pellet making machine for cattle feed can provide pellets for various animals, such as sheep, horses, and other ruminants. The following are some specific application scenes.
sheep feed pellet
Our cattle feed pellet mill can also produce high-quality sheep feed pellets. It can process various raw materials with high fiber content. The finished pellets include many nutrients and trace elements. They are very beneficial for sheep to grow healthy and strong.
horse feed pellet
We have specific granulator to produce horse feed pellet. There are many pellet machine models for your selection. You can choose them for different production efficiency. What’s more,the machine can produce pellets with varying sizes and shapes according to different formulas.
other ruminants feed pellet
In addition to cattle, sheep, and horses, our feed pellet machine can also produce feed for many other ruminants. Just tell us your raw materials and the types of animals your raised. We can provide customized pelleting solutions based on your production requirements.
advantages of cattle feed pellet mill
safe & stable
Every cattle feed pellet maker has an independent electrical control system and safe shutdown system. When the pressure is excessive, they will shut off and disconnect power automatically. This can efficiently reduce the fault probability and maintenance expense. Meanwhile, this design can strongly ensure normal operation for a long time.
wearable & durable
The RECHI cattle feed pellet mill uses high-quality stainless steel, which can greatly improve the corrosion resistance of the machine. In addition, we adopt Siemens motors and superior SKF bearings. They have high wear resistance, preventing frequent replacement caused by poor quality.
clean & environmental
We have professional cleaning and screening equipment, including pulse dust removal, permanent magnet drum, and cylindrical pre-cleaning sieve. They can ensure that the entire production process is clean. In addition, the finished pellets have low powder content, which has almost no pollution to the environment.
global project cases for reference
Our cattle feed pellet mill has been widely used in over 90 countries and regions. The following cases intuitively show the real effectiveness and application value. This may provide a valuable reference for your equipment selection.

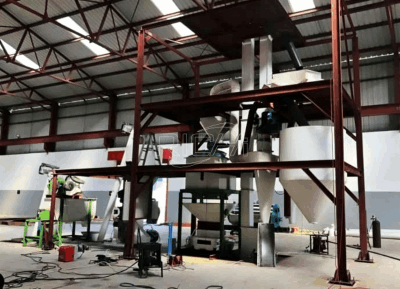

2.5 T/H cattle Feed Pellet Production Line in Oman
The client has abundant alfalfa resources. However, the water content of these raw materials is too high, resulting in high raw material consumption. This new production line can process various raw materials with varying water content. The finished pellets have a high formation rate and integrity. The client is very satisfied.
- Raw Materials: alfalfa, corn, wheat, soybean meal, etc.
- Finished Pellet Diameter: 6-8 mm
- Feed Machine Model: SZLH-250

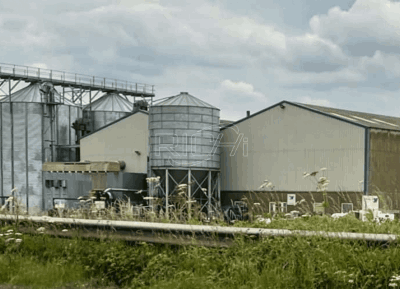

8-10 T/H cattle Feed Pellet Production project in Argentina
This is a customized production line. It has high formula compatibility and stable production efficiency. Its output tripled that of the old one. Apart from cattle feed pellets, the production line can also produce pellets for other ruminants. The finished pellets mainly supply farms in nearby regions and countries.
- Raw Materials: soybean meal, sunflower seed meal, corn, sorghum, hay, etc.
- Finished Pellet Diameter: 6-12 mm
- Feed Machine Model: SZLH-420

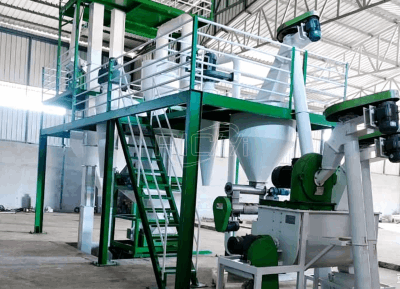

3-4 T/H cattle Feed Pellet processing line in Venezuela
The client wants a production line to process various raw materials with high fiber content. We dispatched 2 engineers to help them complete the entire pelleting line. This line is capable of processing almost all fiber raw materials. The client is very satisfied with the final effect. We quickly reached a partnership.
- Raw Materials: molasses, corn, sorghum stalks, cassava, cottonseed meal, etc.
- Finished Pellet Diameter: 4-8 mm.
- Feed Machine Model: SZLH-320
