Chicken feed pellet machine
Production process video of Chicken Feed Pellet machine
Premium-quality Manufacturing & Wide Applicability.

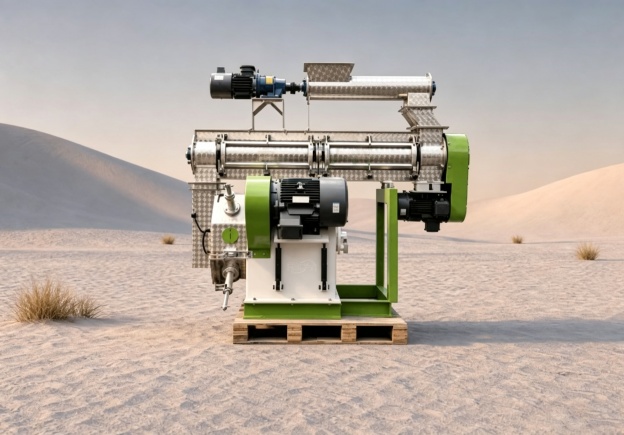

The RICHI chicken pellet maker is the core equipment in our feed production line. We have advanced equipment and production processes. We ensure every pellet meets the latest production standards. In addition, our pellet machine has wide applicability. It can produce different feed pellets based on different formulas. The finished pellets are suitable for the feeding requirements and physical characteristics. The video shows its pelleting process and the shape of the finished pellets.
Production Capacity:
1-40T/H
Pellet Diameter:
2-12mm
Parameters of
Chicken Feed Pellet Machine
We have a minimum output capacity of 1.0 T/H and a maximum of 40 T/H. You can select the machine that perfectly matches your production requirements. At the same time, we can provide you with the most suitable model based on your production capacity requirements and budget.
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Output (t/h) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Motor Power (kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Finished Pellet Diameter (mm) | 2-12 | |||||||
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
types of Chicken Feed we can produce
Chicks feed
Due to their young age, the chicks generally can only eat small pellets or mash feed. Our chicken pellet making machine can produce powdered, granular, and crumbled feed. You can select the most suitable feed types freely.
Broilers feed
The broilers usually require more high-quality protein and trace elements. Our chicken feed pellet machine can produce various feed types to match the different feeding requirements of broilers at different growth stages.
Laying Hens feed
The feeding goal for laying hens is to achieve long-term and stable egg production. The RICHI pellet machine for chicken feed can process different chicken feed formulas. The finished pellets can help improve profitability.
Main Components of
Chicken Feed Pellet Machine

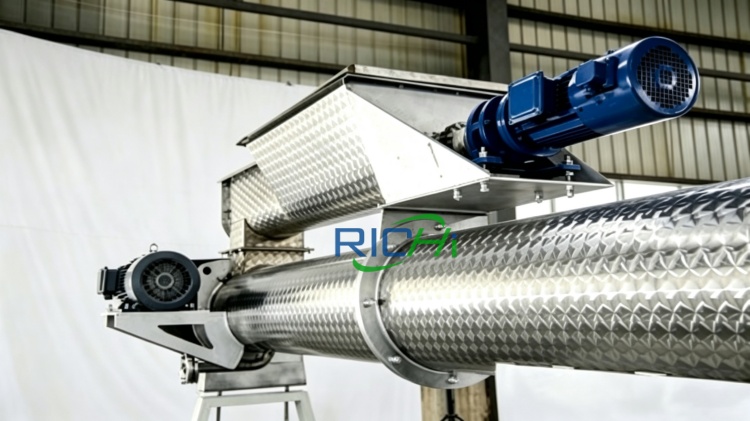

Variable Frequency Feeder
The RICHI chicken feed pellet maker is equipped with a variable frequency feeder. It can control the feeding rate, preventing too fast or too slow. You can adjust the variable frequency motor to control the feeding rate without changing the voltage.

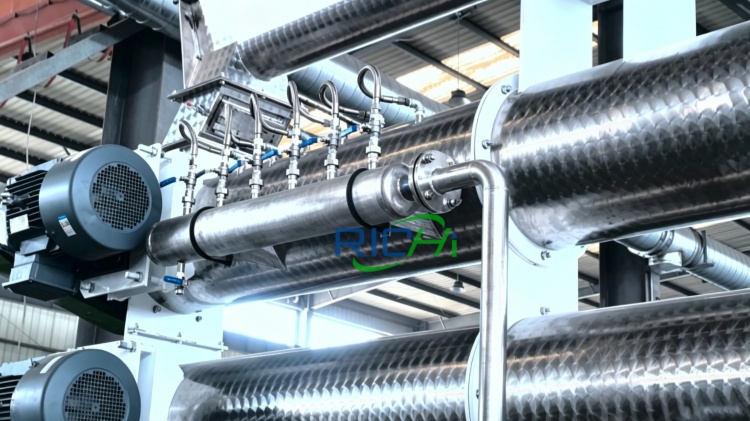

Conditioner
The conditioning process will help to realize gelatinization, ripening, and sterilization. It will soften the raw materials to make them more suitable for pelleting. In addition, this process will reduce the digestive burden on chickens.

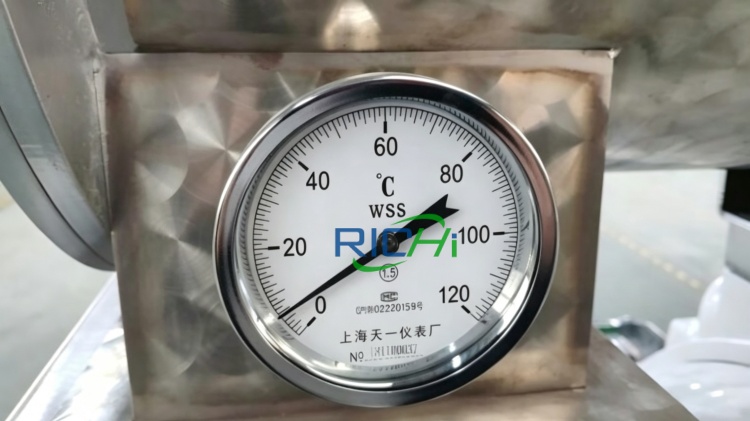

Thermometer
Before pelleting, the thermometer will detect the temperature of conditioned raw materials. Usually, the temperature needs to be around 80°C. When it is too low, the raw materials will be secondary conditioned.

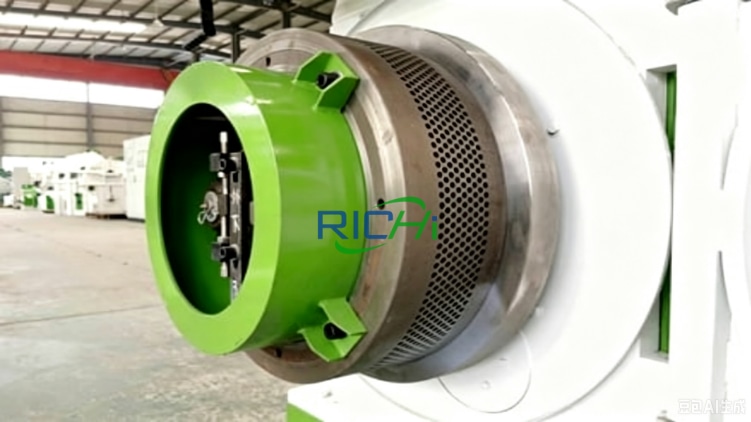

Ring Die & Rollers
These are the key components of our chicken feed pellet maker. You can freely adjust the ring die diameters and compression ratios according to your requirements. Then you will get various sizes of chicken feed pellets.

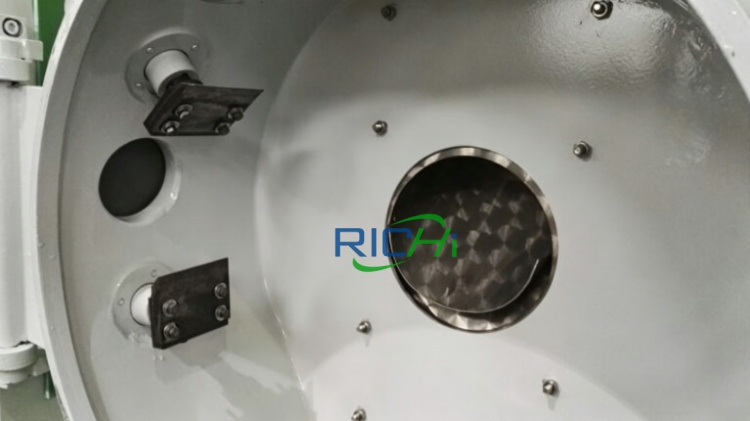

Cutting Blade Device
The cutting blade device will control the length of newly formed pellets. It is made of stainless steel. This design provides it with a lower failure rate and a longer service life.
global project Cases
Our chicken feed pellet machine has been widely used in many countries and regions. The following cases intuitively show the real effectiveness and application value. This provides a valuable reference for your equipment selection and application needs.

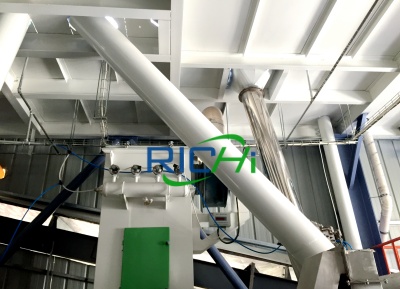

3-4T/H chicken feed pellet Production Line In Zimbabwe
This chicken feed pellet production line is specifically designed for medium-scale poultry farms. We provide customized feed processing formulations tailored to chickens at different growth stages, from chicks, layers, to broilers. The finished pellets have a high integrity rate and low powder content.
- Raw Material: corn, barley, soybean meal.
- Finished Pellet Size: 1–12 mm
- Feed Pellet Mill Model: SZLH-320

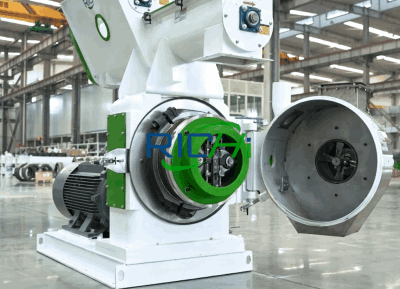

10-15T/H chicken feed pellet making machine In Brazil
This project, initiated by a social enterprise, is designed to serve medium-scale chicken farmers. We upgraded their production equipment, achieving a higher level of automation. This helps reduce labor costs by over 40%. The client is very satisfied with the final quality of the finished pellets and the production efficiency.
- Raw Materials: barley, corn, mineral additives.
- Finished Pellet Size: 2-8 mm
- Feed Pellet Mill Model: SZLH-508

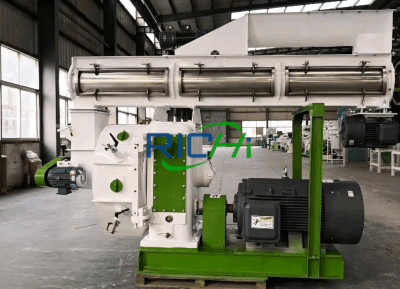

5-6T/H chicken feed pellet making machine In Saudi Arabia
The customer required a fully automated chicken feed pellet mill. They wanted to produce both powdered and granular chicken feed. We provided a complete design solution that perfectly matched the customer’s requirements. The pellet machine can process various raw materials and produce chicken feed with varying shapes.
- Raw Materials: corn, wheat bran, premixes.
- Finished Pellet Size: 3-8 mm
- Feed Pellet Mill Model: SZLH-350
Advantages of Chicken Feed Pellet Machine
High Flexibility
The RICHI chicken feed pelleting machine for sale has high flexibility. It can produce high-quality pellets according to different formulas. In addition, you can produce various feed pellets for ducks, geese, or other poultry. Whether they are at any growth stage, the finished pellets can meet their nutritional needs.
Strict Hygiene & Safety Standards
The high-temperature conditioning will effectively eliminate harmful bacteria such as E. coli and Salmonella. This process also helps improve the quality of finished chicken feed pellets, ensuring they are safe and clean. Clean and hygienic feed also reduces the risk of intestinal infections, increasing the chicken survival rate.
Stable & Efficient Production Capability
The RICHI chicken feed pellet mill adopts a stainless steel design and high-efficiency Siemens motors. These designs provide our machine with a low failure rate and a long service life. The machine can operate stably and consistently for over 16 hours. This will significantly help you reduce equipment maintenance costs.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
