chicken manure pellet machine

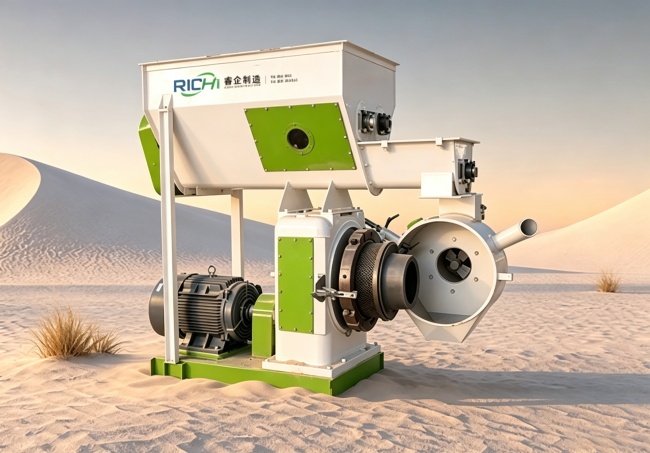

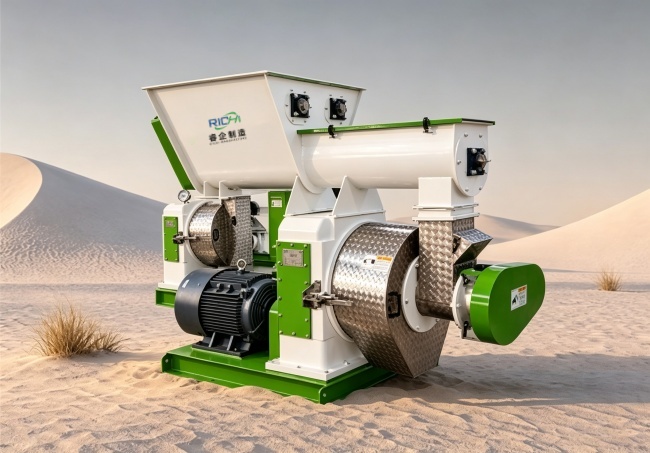

production process videos of Chicken Manure Pellet Machine
High pellet formation rate and low powder content.
Our chicken manure pellets machine has excellent and stable output performance. Regardless of the animal manure, it can process them well. The final pellet formation rate can be stably maintained above 95%. What’s more, our machine is made of stainless steel. This ensures the finished pellets have high density and integrity and low powder content. Whether you need powdered or granular fertilizer, we can produce them all. These videos show our pellet machine and the specific pelleting process of organic fertilizer. These videos show the entire pelleting process and the final pellet quality.
production Capacity:
1-26 T/H
pellet diameter:
4-12 mm
main components of
Chicken Manure Pellet Machine

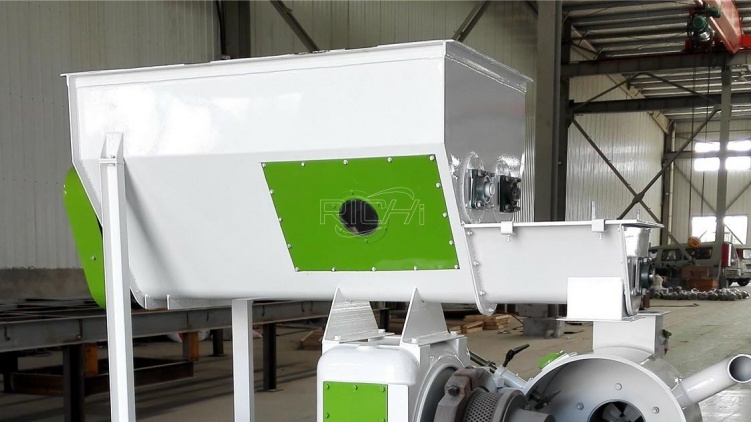

arch-breaking feeder
The RICHI chicken manure pelletizer is equipped with an arch-breaking feeder. To produce high-quality fertilizer pellets, we usually need to add some straw to the chicken manure to enhance stickiness. The arch-breaking feeder can prevent raw material blockage caused by materials that are too wet or too sticky.
conditioner
The conditioner can help soften the straw raw materials. After conditioning, the water content will be more uniform. They are easier to mix with chicken manure and other raw materials. Of course, you can add some water, microbial liquid, or other liquids during conditioning.

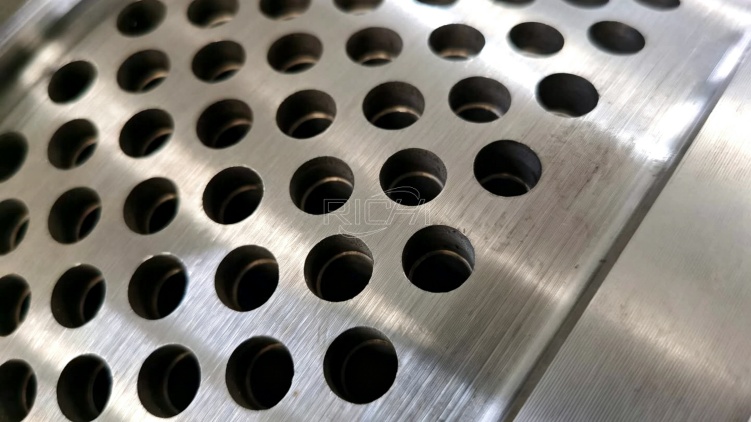

ring die
The ring die is the main component for pelleting. The mold hole is adjustable. You can adjust the ring die specifications to get different chicken manure fertilizer pellets with varying sizes. In addition, the ring dies are made of high-strength forgings, ensuring their long lifespan.

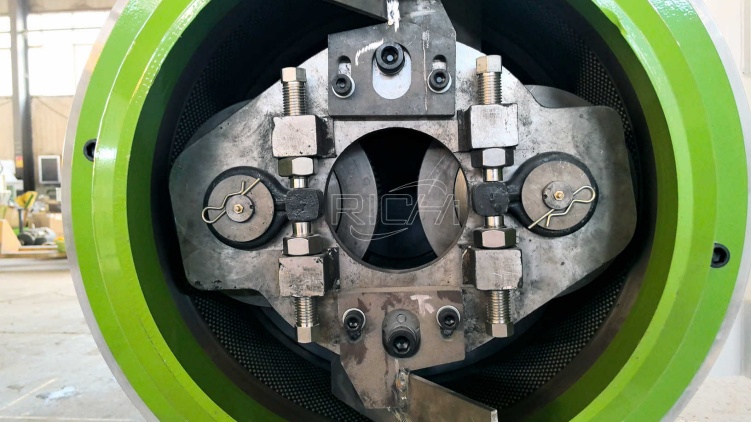

pressure roller
The pressure rollers can help push the raw materials into the ring dies. You can adjust the gap between the ring die and roller to produce various pellets. The pressure roller adopts circulating water cooling. This effectively reduces grease and energy consumption.
cutting blade device
The cutting blade is made of stainless steel. It can serve for several years. The chicken litter pellets processing machine is equipped with two cutters. They ensure a stable and efficient output. The cut fertilizer pellets can maintain high length uniformity.
parameters of
Chicken Manure Pellet Machine
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power (kW) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking feeder power (kW) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced feeder power (kW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished pellet Diameter (mm) | 4~12 | ||||||
| Output（T/H） | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of different raw materials and batching stages.
Types of animal manures we can process
In addition to various chicken manures, the RICHI chicken manure pellet machine for sale can also process many other animal manures, such as chicken, cow, pig, and horse manure. The following are some specific types of animal manures.
chicken manure
The chicken manure is an essential animal manure. It contains high levels of organic substances, such as nitrogen, phosphorus, and potassium. In addition, chicken manure has better stickiness. You will not need to add much adhesive. The water content of chicken manure is best maintained between 30% and 40%.
cow dung
The cow dung contains high crude fiber. It requires mandatory shredding. Our chicken manure pellet machine is usually equipped with an arch-breaking feeder. This feeder can crush the cow dung to a suitable size. In addition, to improve its stickiness, you need to add some molasses, starch, or nitrogen-containing raw materials.
pig manure
The pig manure has relatively high organic matter. Due to its high stickiness, we usually need to add some straw. They can help improve the breathability of pig manure. This will make pig manure fertilizer pellets have better economic value. We have professional fermentation equipment to help thoroughly and uniform fermentation.
horse manure
The horse manure has high fiber content. It needs to be crushed first. In addition, the water content of horse manure is usually high. We need to add some straw or dry it first. As a superior organic fertilizer raw material, it can generate high temperatures during composting. So it is always mixed with other materials to accelerate the decomposition process.
advantages of chicken manure pellet machine
efficient production
The chicken manure pellet mill uses a high-precision gear transmission system. Contrary to belt transmission, the working efficiency is increased by 15%. In addition, we adopt superior imported bearings and oil seals. They ensure that our machine can operate stably, efficiently, and quietly. This means that our pellet machine can achieve a high output.
low maintenance costs
The RICHI chicken manure pelletizer is equipped with a safety device. When the pressure is excessive, it will shut off and disconnect the power automatically. This will protect the main components from serious damage. In addition, our machine features a modular design. If the components are damaged, you can just replace them without large screw.
long lifespan
The main components of our fertilizer pellet machine are made of 42CrMo, such as the ring die, gear, and spindle. They are very wear-resistant and durable. In addition, our feeder, conditioner, and main door cover are made of stainless steel. This design can reduce the equipment corrosion rate. This means our machine can serve for several years.
global project cases for reference
The RICHI chicken manure pellet machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This may provide a valuable reference for your equipment selection.

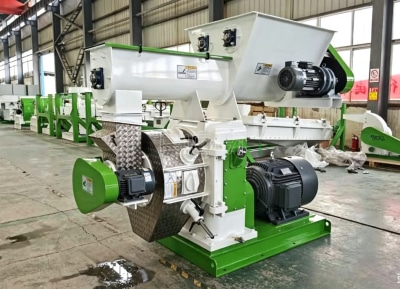

1-1.5 T/H chicken manure pelleting machine in Ghana
The client runs a small chicken farm. They have abundant chicken manure resources. Most of the chicken manure is discarded as waste. The client wants a pellet machine to change these chicken manure into superior organic fertilizer pellets. We recommended our FZLH250 model to them. It has a high pellet formation rate and low energy consumption.
Raw Materials: chicken manure, corn straw.
finished pellet diameter: 4-8 mm
pellet machine model: FZLH-250

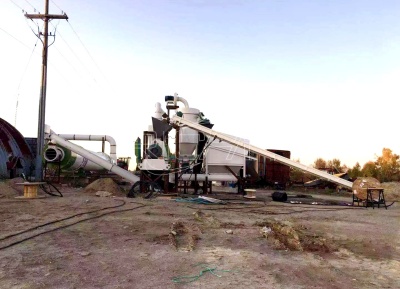

3-5 T/H chicken manure pelleting machine project in Thailand
This is an organic fertilizer processing plant. We design and install the entire production line for the client. This line can process various animal manures, including chicken manure and pig manure. Apart from the chicken manure pellet machine, we provide them with a crusher, mixer, compost turner, dryer, and conveying system. The output is very stable and excellent.
Raw Materials: chicken manure, pig manure, corn straw, etc.
finished pellet diameter: 4-10 mm
pellet machine model: FZLH-350

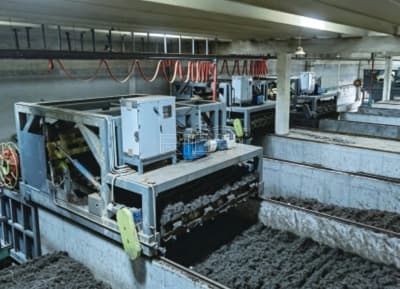

10-12 T/H chicken manure pelleting machine project in Egypt
This is a customized production line. The client wants to produce organic compound fertilizer. Their main raw materials are fresh chicken manure and wheat straw. Due to the high water content of the fresh chicken manure, we redesigned the drying and deodorization systems. The entire production process is clean and odorless. It is very environmentally friendly.
Raw Materials: chicken manure, corn straw, Phosphate fertilizer.
finished pellet diameter: 4-6 mm
pellet machine model: FZLH-520
vertical crusher machine
mixer machine
rotary dryer
Counter-flow cooler
Vibrating screener
packaging scale
main auxiliary equipment
In addition to the chicken manure pellet machine, we have complete auxiliary equipment. The following are some specific equipment details.

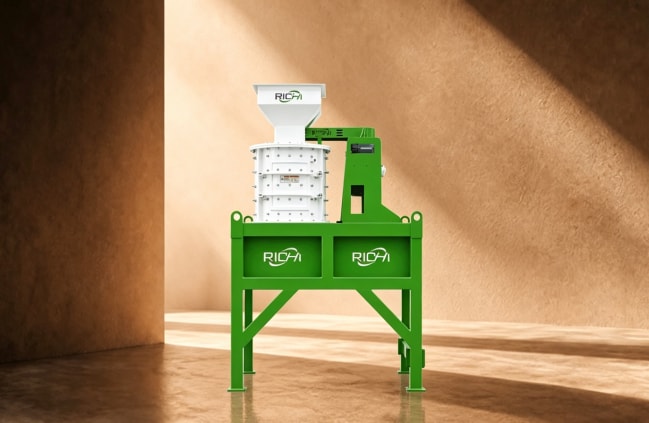

vertical crusher machine
The vertical crusher machine has chain and Hammer blades. It is suitable for processing wet raw materials. It can prevent the material from sticking. To crush to the suitable size, we will carry out two rounds of crushing.
mixer machine
The RICHI offers paddle mixers, drum mixers, high-speed molasses mixers, and ribbon mixers for your selection. They can process various raw materials. You can select suitable models based on your production targets.

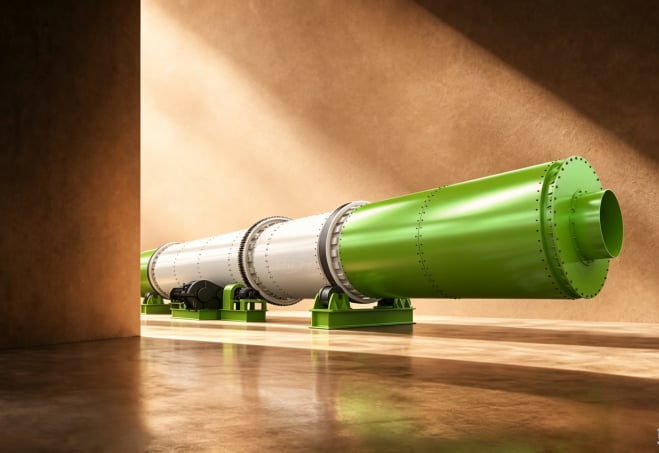

Rotary dryer
The feed pellets usually a mesh-belt dryer. The hot air temperature is adjustable. What’s more, the drying time and the number of mesh belt layers can also be flexibly customized.
Counter-flow cooler
Our counter-flow cooler adopts a gentle and gradual cooling method. This will achieve a high pellet completeness and smoothness rate. The finished pellets have a low crack rate.

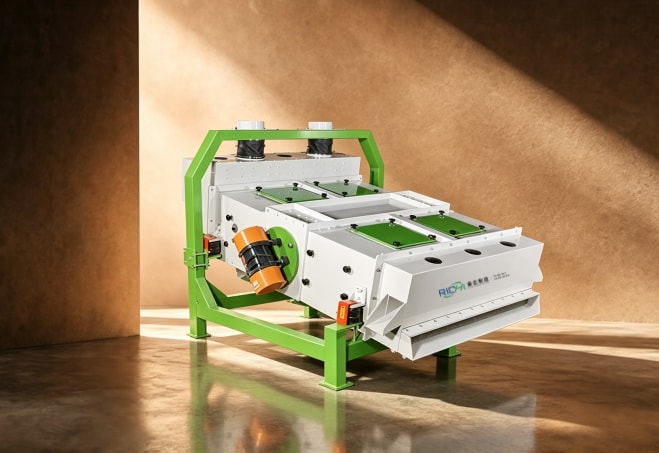

Vibrating screener
The vibrating screener has a knocking device at the top. It can dislodge the wet materials adhering to the screen mesh. This will reduce raw material consumption. It is also easy to clean.
packaging scale
The packaging scale is mainly used for weighing the finished pellets. When it reaches the threshold, the feeding will stop automatically. This ensures the uniform weight of every bag.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
