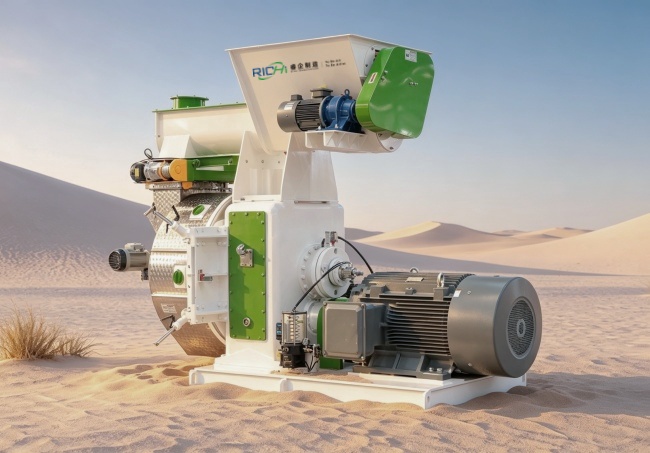

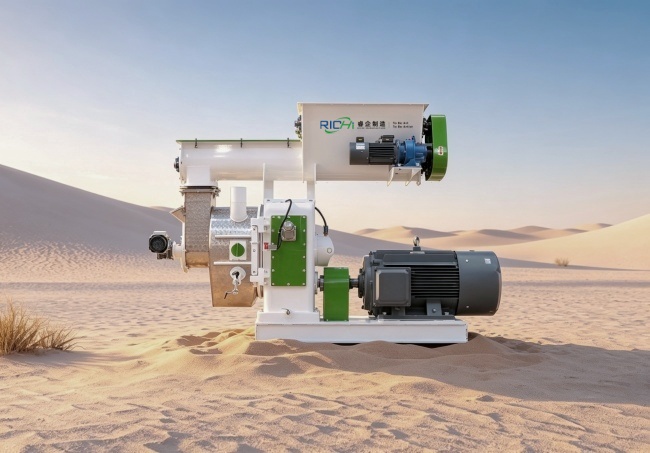

Paper Cat Litter Pellet Machine
Watch videos to learn more about the specific pelleting process
High-efficiency granulation and superb technology.
Our paper cat litter pellet machine features efficient production and excellent manufacturing. It has almost no restrictions on the types of waste paper raw materials. Relying on high-quality components and advanced technology, it has superior pelleting capability. The finished pellets have a high formation rate, integrity, and smooth surface. You can watch these videos to learn more about the pelleting process of our cat litter pellet machine.
production Capacity:
1-40 T/H
pellet diameter:
2-12 mm
How does the Paper Cat Litter Pellet Machine work

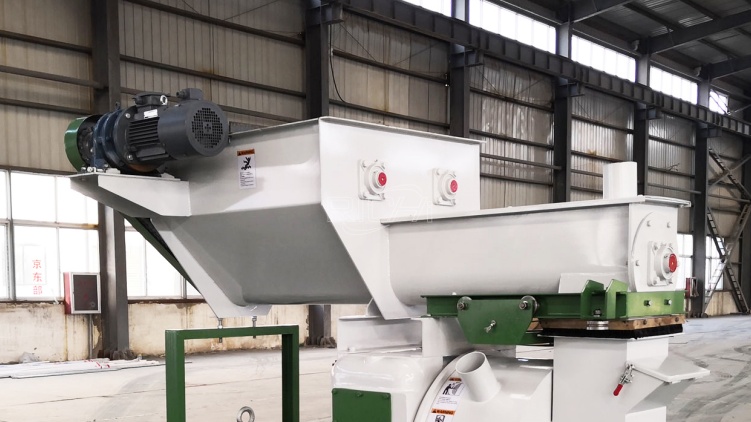

variable frequency feeder
The RICHI paper cat litter pellet making machine has a variable frequency feeder. It can control the feeding speed to match the working efficiency of the granulator. This will help prevent machine clogging or no-load operation.

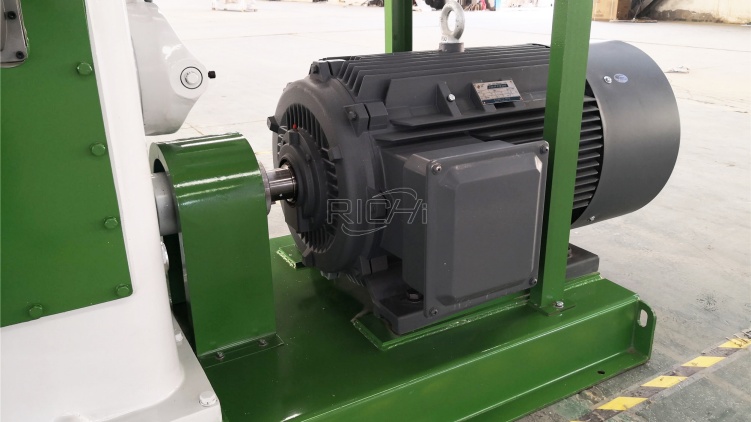

Siemens Motors
Our main motor is a Siemens motor. It has excellent production efficiency, ensuring stable operation even in a high-pressure environment. What’s more, it is very energy saving. This will help you reduce energy consumption to a great extent.

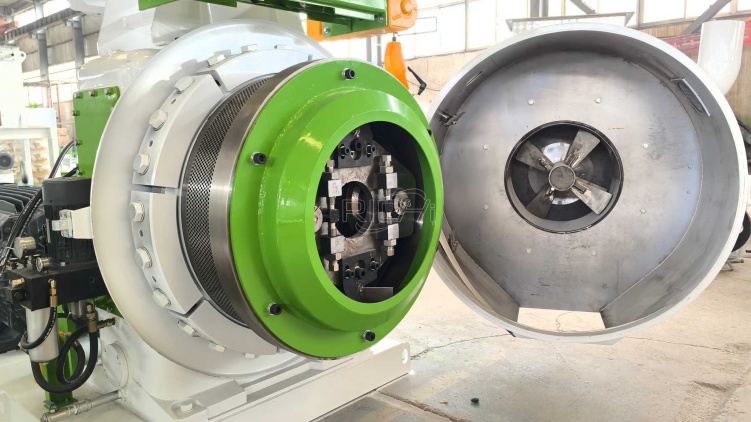

ring die & roller
The ring die and rollers are made of stainless steel. They can serve for a long time. We provide different specifications for ring dies and rollers. You can adjust the gap between the ring die and rollers to get different cat litter pellet sizes.

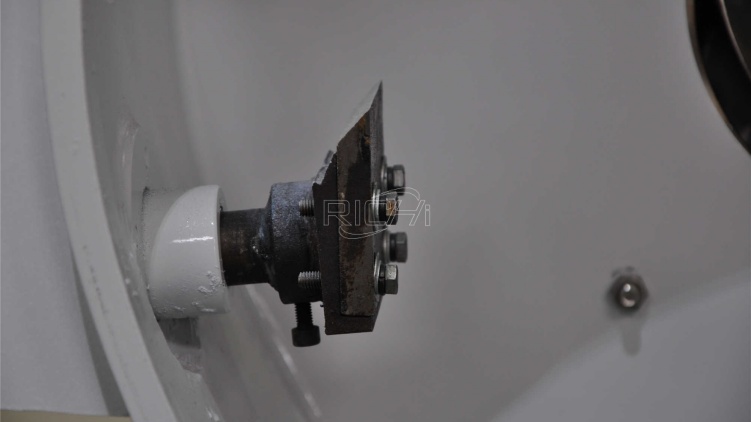

cutting blade device
The cutting blades are also made of stainless steel. It is not easy to error. We have two cutters. They will cut the formed cat litter pellet to ensure a uniform length. The shape of our cutting blades can also be customized.

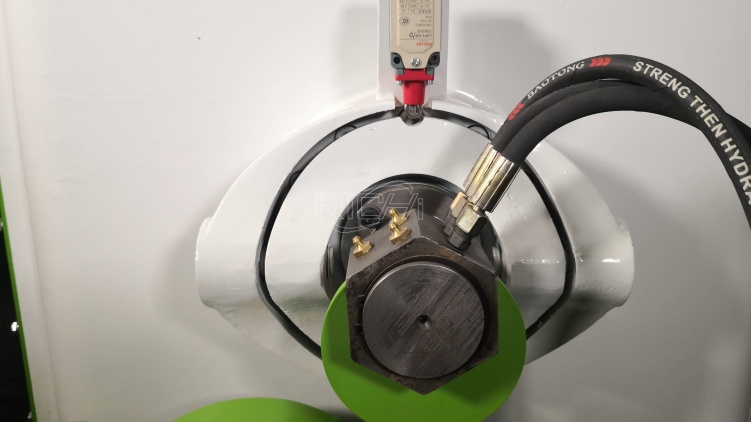

safety device
Our paper cat litter pellet mill is equipped with a safety device. If the pelleting chamber is damaged, it will shut down and disconnect the power. This will protect the main components and the pellet machine from damage.
main parameters of
Paper Cat Litter Pellet Machine
In addition to our MSZLH pellet machine models, we also have wood pellet machines for your selection. They can process various wood, straw, and other high-fiber raw materials. The following are the specific parameters.
wood pellet machine
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power ( kW ) | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking feeder power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced feeder power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Granule Diameter (mm) | 4~12 | |||||
| Output（T/H） | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
cat litter pellet machine
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Motor Power (kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Output (T/H) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of different raw materials and batching stages.
Types of waste paper we can process
The RICHI paper cat litter pellet machine has a range of compatibility with waste paper raw materials. It can process almost all types of paper. The following are some specific waste paper types.
Old newspapers
The old newspaper is a common paper raw material. It is widely available and low-cost. The finished pellets are soft and water absorptent.
Corrugated cartons
The corrugated cartons contain high fiber. The finished pellets are not easy to break. However, you need a crusher to help remove the nails and glue.
Office waste paper
The office waste paper has high purity. It is easy to clean and granulate. Our paper cat litter pellet machine can turn them into high-end cat litter pellets.

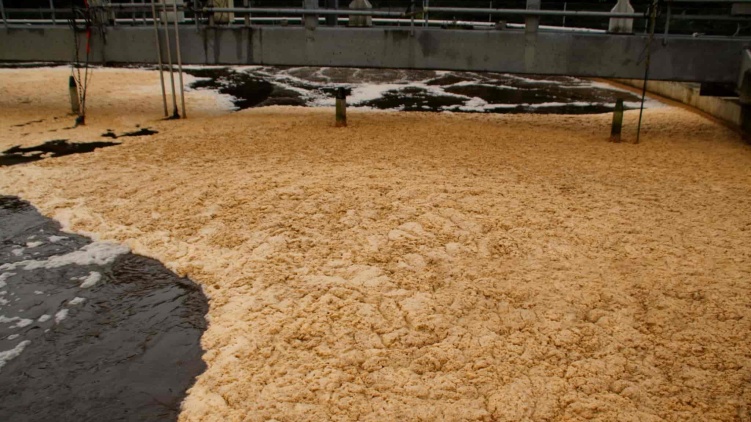

Paper mill sludge
The paper mill sludge refers to sediment generated after paper making. It is a low-cost paper raw material. Usually, it operates with some cleaning equipment.
Paper packaging waste
The paper packaging waste includes courier boxes, takeout containers, and food packaging boxes. They have a high utilization rate.
types of supplementary materials we need for Premium cat litter
Binder materials
To improve the clumping ability of paper cat litter pellets, we usually add some binder materials, such as carboxymethyl cellulose (CMC), corn starch, tapioca starch, or other highly adhesive additives. This will make the finished paper cat litter less likely to break.
absorbent materials
The absorbent materials include superabsorbent polymer (SAP), bentonite, sepiolite, peanut shells, plant ash, etc. They can improve water absorption and reduce production costs. Our paper cat litter pellet machine can process the mixture well.
deodorizing materials
During the pelleting process of paper cat litter, we usually add some deodorizing materials, such as activated carbon and zeolite powder. They can help prevent the fumes from spreading. This will provide a clean and odor-free living environment.
global project cases for reference
The RICHI paper cat litter pellet mill has been widely used in over 100 countries and regions. The following cases clearly show the real effectiveness and application value. This may provide a valuable reference for your equipment selection.

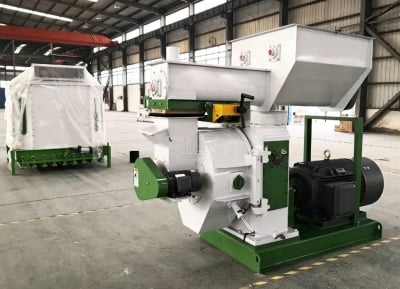

2-3 T/H paper cat litter pelleting machine in Colombia
The main raw materials the client processes are old newspapers and waste office paper. They want a pellet machine to improve the resource utilization rate. We provide them with the MSZLH320 cat litter pellet machine models. In addition, the client wants to add some binder and deodorizing materials. So we also supply them with a mixer machine.
Raw Materials: old newspapers, waste office paper, corn starch, bentonite, etc.
finished pellet diameter: 2-8 mm
pellet machine model: MSZLH-320

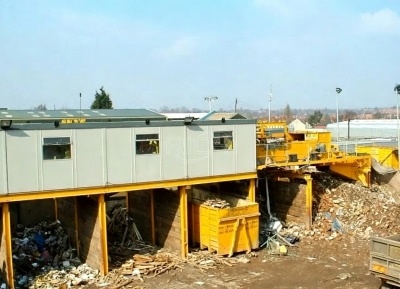

12-15 T/H wood paper cat litter pelleting machine project in Turkey
This is a cat litter processing plant. The client wants an entire cat litter pellet production line. We dispatched 2 engineers to help them install the entire line. The main raw materials are old newspapers, discarded packaging boxes, and some sawdust. We provided them with granulators, a crusher, a mixer, a dryer, a cooler, and an entire conveying system.
Raw Materials: old newspapers, discarded packaging boxes, sawdust, etc.
finished pellet diameter: 2-10 mm
pellet machine model: MZLH-768

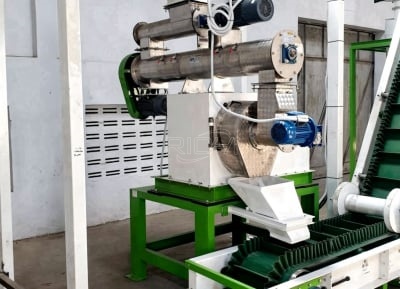

6 T/H paper cat litter pelleting machine project in Bangladesh
This is a small cat litter production line. The main raw materials are various types of waste paper. They want a paper cat litter pellet machine with high compatibility. Our pellet machine can process various raw materials and maintain a high pellet formation rate. The client is very satisfied with the final pellet quality. We quickly confirmed cooperation.
Raw Materials: waste office paper, Cartons, cardboard, bentonite, etc.
finished pellet diameter: 4-8 mm
pellet machine model: MSZLH-350
Water-drop type pulverizer
Ribbon Mixer
rotary dryer
Counter-flow cooler
Rotary Grading Screen
packaging scale
main auxiliary equipment
RICHI has complete cat litter pellet production lines. In addition to the paper cat litter pellet machine, we have complete auxiliary equipment. The following are some specific equipment details.

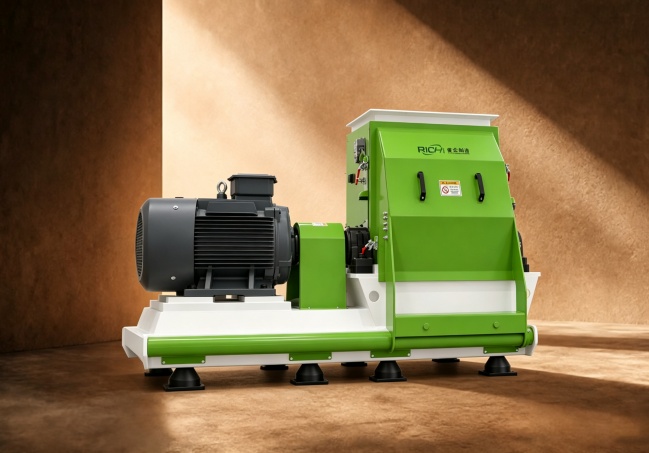

Water-drop type pulverizer
The water-drop type pulverizer can help crush waste paper and wood raw materials into 3-8 mm pellets in diameter. The crushed raw materials are more suitable for pelleting.

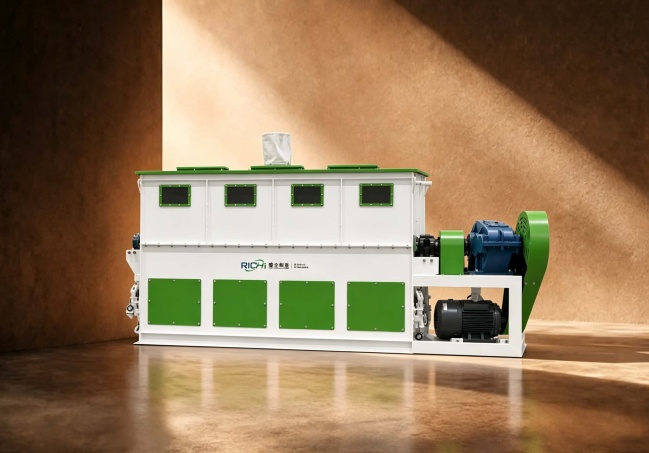

Ribbon Mixer
Our ribbon mixer is made of carbon steel, ensuring its long lifespan. Its mixing capacity per batch can reach 2000kg.

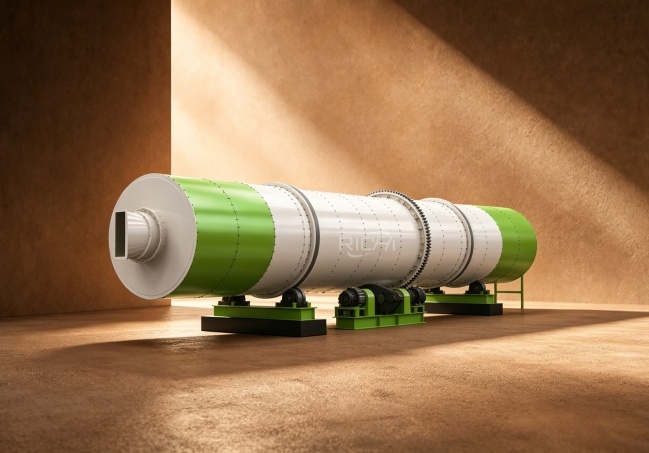

Rotary dryer
Our rotary dryer has variable-frequency speed regulation. The drying time and drying level can be adjusted.
Counter-flow cooler
The cold air will flow from the bottom and then gradually permeate upwards. This cooling method can help maintain the integrity and smoothness of the finished pellets.

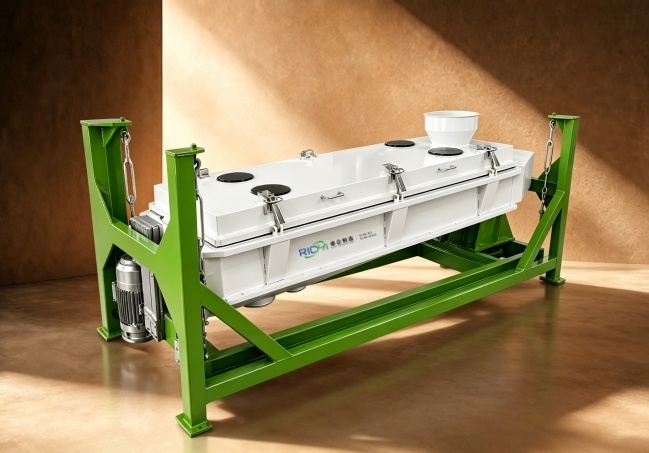

Rotary Grading Screen
The rotary grading screen can help control finished pellet sizes to maintain uniformity. Those unqualified cat litter pellets will be returned for secondary processing.

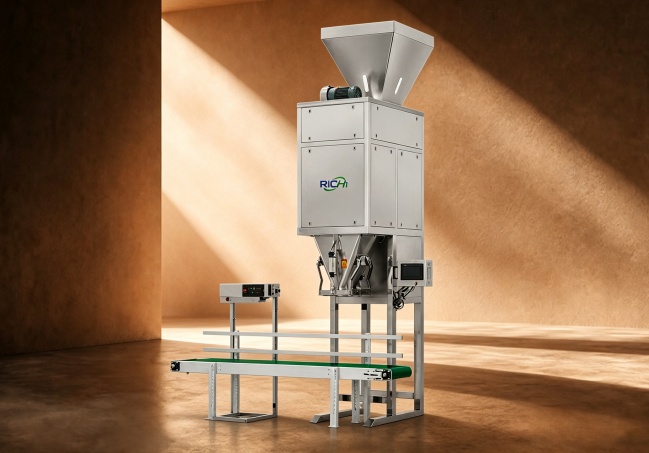

packaging scale
The packaging scale can weigh automatically. When it reaches the threshold, the feeding will stop. This helps maintain a uniform weight for every bag.
advantages of paper cat litter pellet machine
Our paper cat litter pellet mill has excellent and stable production efficiency. It has various strengths, making it an ideal choice. These are some specific advantages for your reference.
