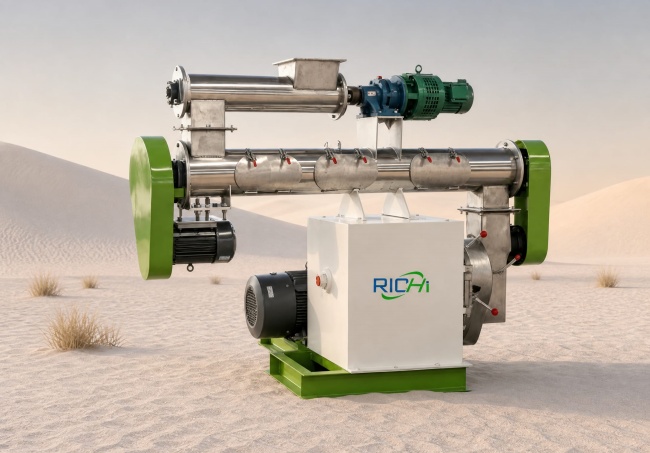

Sheep Feed Pellet Machine
Production process video of sheep Feed Pellet machine
Premium-quality manufacturing for high-end feed supply.
The RICHI sheep feed pellet making machine is the core equipment in our animal feed pellet production line. Our pellet machine for sheep feed can produce pellets with a high formation rate and uniform size. Regardless of the water and fiber content of the raw materials, the sheep feed pelleting machine can process them all. The quality of the finished pellets can be surely guaranteed. The video shows its pelleting process and the shape of the finished pellets.
Production Capacity:
1-40T/H
Pellet Diameter:
2-12mm
parameters of
sheep feed pellet Machine
RICHI has many models of feed pellet mills. These are relevant parameters of our pellet machines. You can select the machine that perfectly matches your production requirements.
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Output (t/h) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Motor Power (kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Finished Pellet Diameter (mm) | 2-12 | |||||||
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
types of sheep Feed we can produce
The RICHI sheep feed pellet machine can produce pellets ranging from 2mm to 12mm in diameter. The finished pellets can be used for various sheep. The following are some types of finished sheep feed.
Lambs feed
Due to their immaturity, they prefer feed pellets with superior palatability and digestibility. We can produce feed pellets with high protein content tailored to lambs’ specific needs. In addition, we can also produce powdered feed. You can select feed types based on your actual needs.
Fattening Sheep feed
Fattening Sheep usually require more kinds of trace elements, such as energy and protein, to promote rapid growth. Our feed pellet mill can process different sheep feed formulas. The finished pellets will provide them with more balanced nutrition.
Adult Sheep feed
Adult sheep are fully mature animals with well-developed digestive systems. Large pellets can efficiently stimulate their rumination capability and promote digestive function. Our machine can produce optimal pellet sizes for them with diameters of 2-12 mm.
Main Components
of sheep feed pellet machine

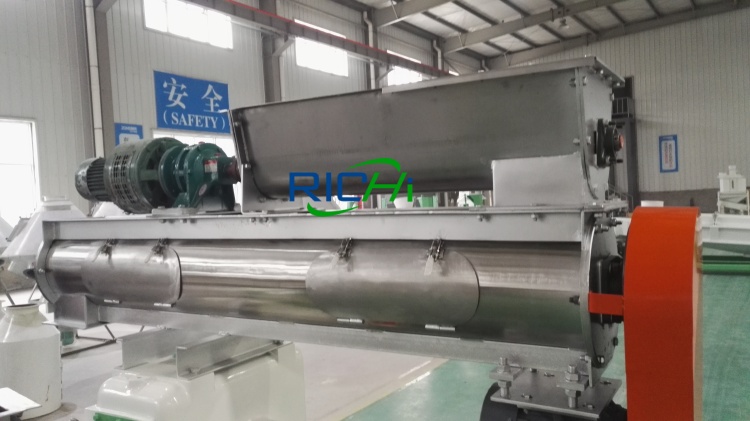

Forced Feeder
The forced feeder will make the feeding speed stable and even. Some raw materials are difficult to convey. The forced feeder will use screw blades to push the material into the granulator. This will effectively prevent machine blockage and reduce raw material consumption.

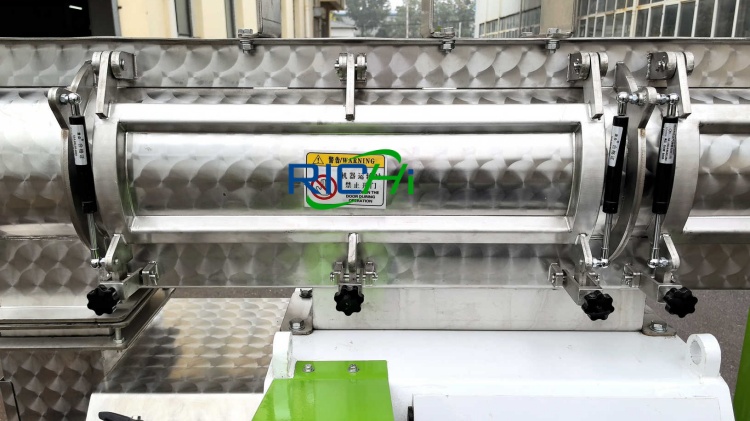

Conditioner
During conditioning, the raw materials will be mixed fully with injected steam or water. This will ensure the raw materials maintain a uniform water content. The ripening degree of raw materials and formation rate of finished pellets will be improved obviously.

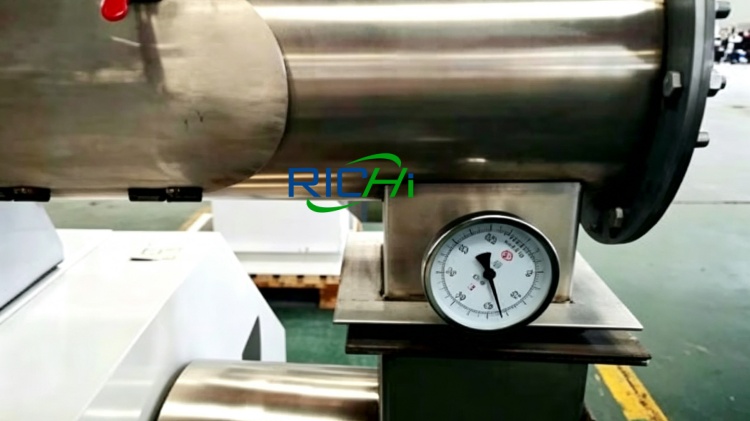

Thermometer
The thermometer will precisely control the temperature of raw materials. When the temperature is around 80°C, the conditioned raw materials are suitable for pelleting. Whether the temperature is too high or too low, the raw materials will be reconditioned.

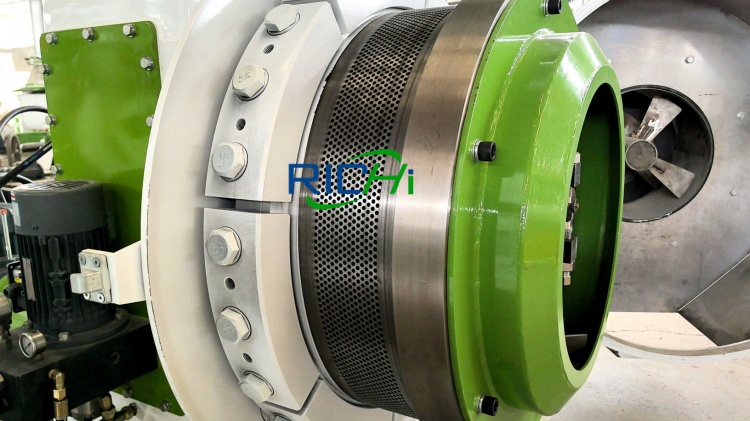

Ring Die
The specifications of ring dies determine the diameters of finished pellets. You can freely adjust compression ratios and the diameters of ring dies. Then you will get different sheep feed pellet sizes.

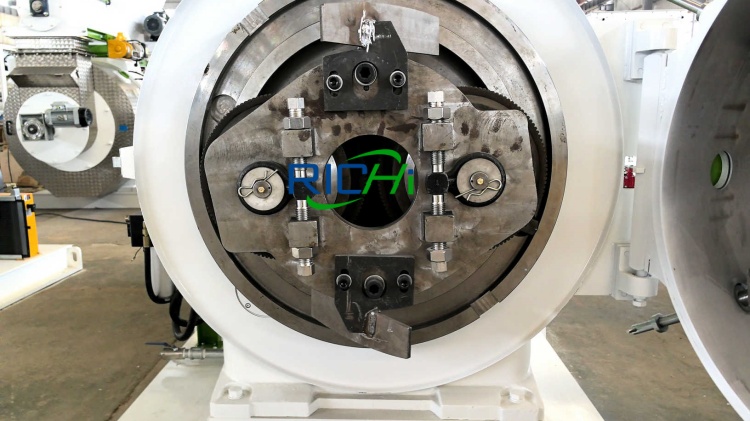

Roller
The rollers help push the raw materials into different ring dies. The rollers are made of wear-resistant alloy steel. This can effectively prevent material adhesion and reduce failure and wear rates.

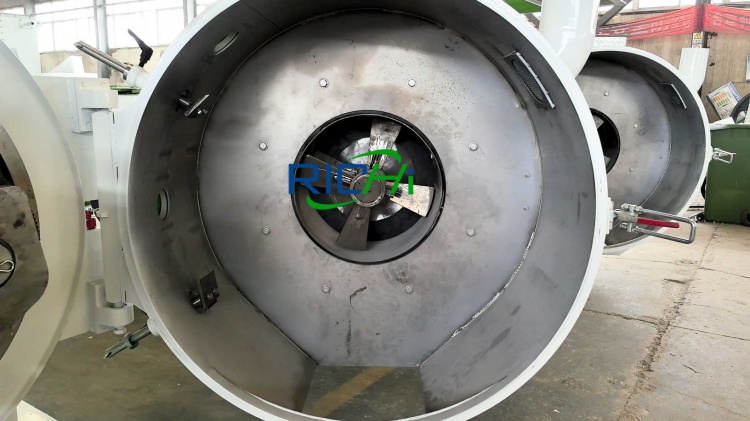

Cutting Blade Device
Our cutting blade device can help you get different pellet lengths. You can select the suitable size according to your different production needs. The shape of our cutting blade device can be customized.
Global project cases of
Our sheep feed pellet machine for sale has been widely used in many countries and regions. The following cases intuitively show the real effectiveness and application value. This may provide a valuable reference for your equipment selection and application needs.

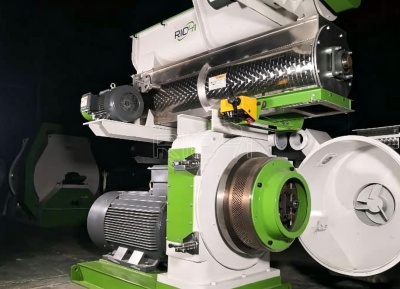

2-4T/H Sheep Feed Pellet Making machine In Indonesia
This is a family farm. The customer wants a mill to produce both powdered and pellet feed to match the nutritional requirements of lambs. We provided the customer with a customized formulation and a complete set of equipment, including a screener, grinder, and pellet mill. The customer was very satisfied with the solution.
- Raw materials: corn, barley, alfalfa, premix, wheat.
- Finished Pellet Size: 2-6 mm
- Feed Pellet Mill Model: SZLH-320

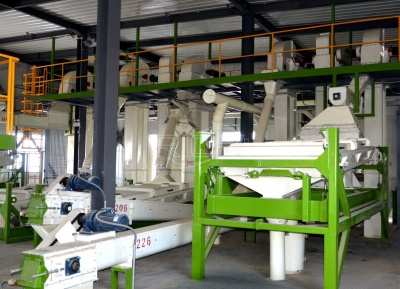

10 T/H Sheep Feed Pellet Making machine In Mauritania
This is a large-scale farm that feeds many kinds of livestock, including pigs, cattle, sheep, and so on. The client wanted a complete and fully automated feed pellet production line. We dispatched 3 professional engineers to assist them in equipment selection, installation, commissioning, and operation.
- Raw materials: straw, husk, corn, soybean meal, oil, premix.
- Finished Pellet Size: 6-12 mm
- Feed Pellet Mill Model: SZLH-768

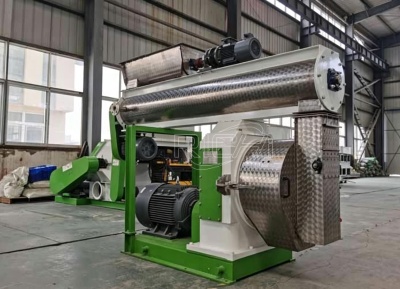

3-4T/H Sheep Feed PelletMaking machine In Vietnam
The client is a medium-scale livestock farm. They have their own production line, but they want to upgrade their equipment. The client wants a higher-capacity and more environmentally friendly feed pellet machine. Our pellet mill can produce high-quality feed with low powder content. The finished pellets are very environmental.
- Raw materials: corn, barley, wheat, pea, alfalfa, premix.
- Finished Pellet Size: 4-8 mm
- Feed Pellet Mill Model: SZLH-558
Advantages of Sheep Feed Pellet Machine
High Palatability
The finished sheep feed pellets contain a variety of nutrients. This gives the finished feed pellets improved palatability and a better nutritional profile, effectively minimizing feed sorting. We ensure that the finished pellets highly meet the preferences of sheep.
Low Maintenance Cost
The RICHI sheep feed pellet mill is equipped with a safety lock device. It will automatically shut off power in case of excessive pressure or resistance, preventing damage to critical components. This will help you minimize the equipment maintenance costs.
Low Energy Consumption
The sheep feed pellet mill is equipped with a high-efficiency Siemens motor and a high-wear-resistant alloy steel ring. All designs can help efficiently reduce failure and wear rate. This means the machine can operate for several years without needing to be replaced.
