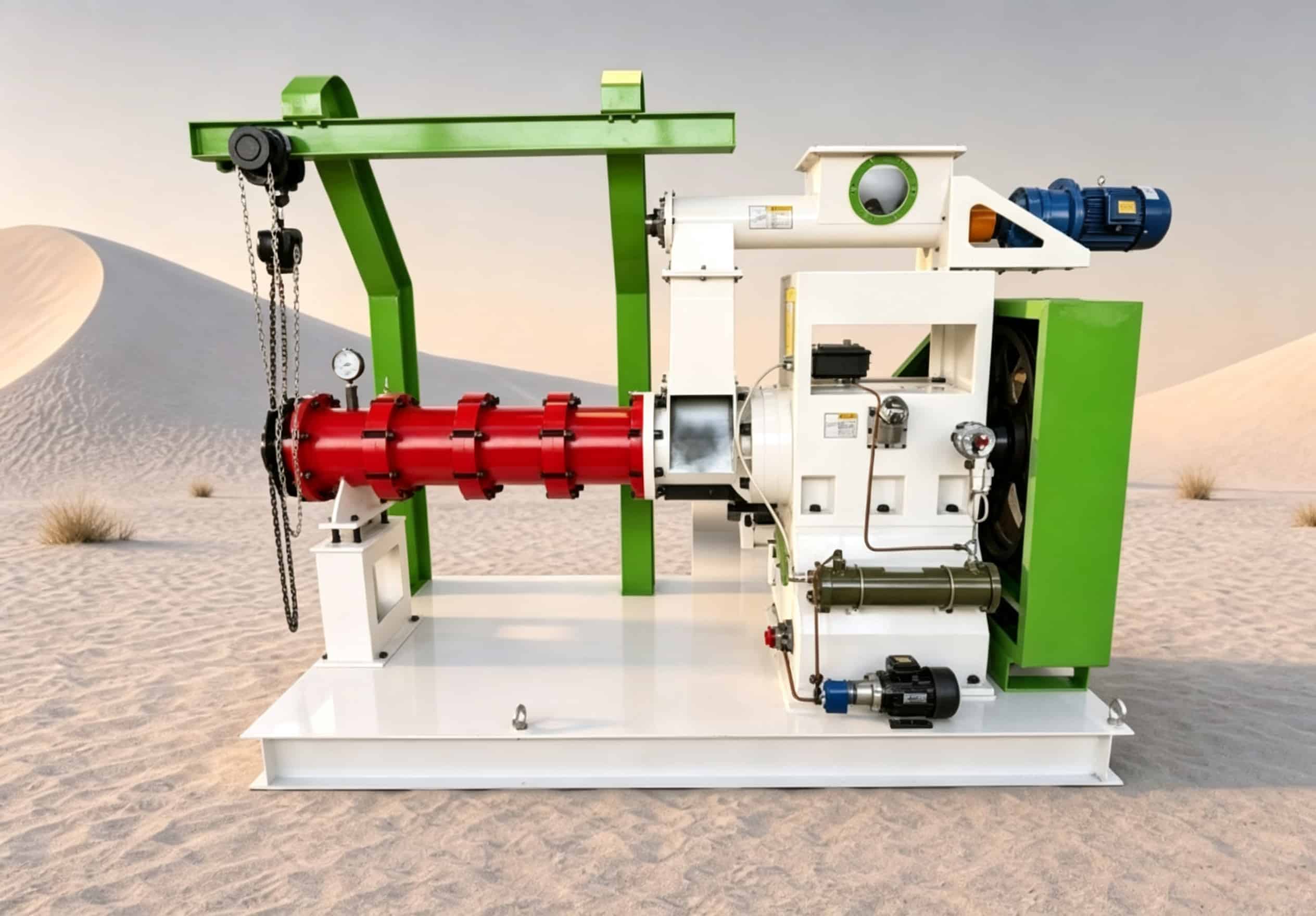

Soya Extruder Machine
Production process video of soybean extruder
Wide Material Versatility & Optimum Manufacturing.

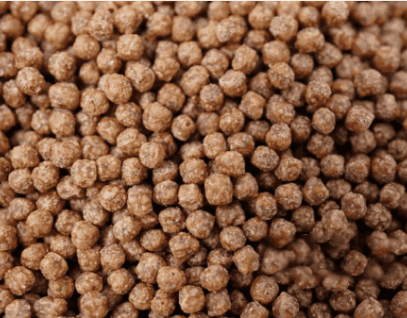

The RICHI soya extruder machine can process a variety of grains and oilseeds, such as corn, soybeans, rice, wheat, barley, rice bran, and cottonseed meal. Our soya extruder mill can produce feed pellets with different sizes and shapes. The finished pellets have high palatability, balanced nutrition, and better safety performance. They are very helpful for animals to grow healthily. This video shows the extrusion process and finished soya pellets.
Production Capacity:
0.4-4.5T/H
Pellet Diameter:
1-12mm
parameters of
Soya Extruder Machine
We have various models of grain extruders for your selection. You can select the machine models that perfectly match your production requirements.
Dry Grain Extruder
| Model | RCYP140G | RCYP160G | RCYP200G | ||
| Main Motor Power (kw) | 55 | 75 | 90 | 110 | 132 |
| Screw diameter (mm) | 140 | 140 | 140 | 160 | 200 |
| Feeder Motor Power (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Soybean output (T/H) | 0.75-1.0 | 0.9-1.3 | 1.2-1.9 | 1.4-2.1 | 1.7-2.3 |
| Corn output (T/H) | 0.4-0.5 | 0.6-0.75 | 0.7-0.85 | 0.85-1.2 | 1.2-1.4 |
Wet Grain Extruder
| Model | RCYP140G | RCYP160G | RCYP200G | RCYP200G | ||
| Main Motor Power (kw) | 55 | 75 | 90 | 110 | 132 | 160 |
| Screw diameter (mm) | 140 | 140 | 140 | 160 | 200 | 200 |
| Feeder Motor Power (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Modulator power (kW) | 4 | 4 | 4 | 7.5 | 7.5 | 7.5 |
| Soybean output (T/H) | 1.2-1.3 | 1.5-2.1 | 1.6-2.3 | 2.0-2.9 | 2.8-3.8 | 3.8-4.5 |
| Corn output (T/H) | 0.7-0.8 | 0.8-1.0 | 0.9-1.2 | 1.1-1.4 | 1.6-2.2 | 2.2-2.7 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
Animals that can use soybean extruded feed
The RICHI soya chunks extruder machine can make grains more palatable and safer after extrusion. The finished pellets can be used for various animals. The following applications may offer you some references.
poultry
The extruded soya feed is very suitable for poultry, such as broilers and layer hens. It can serve as a high-quality energy feed to supply more nutrition to poultry.
ruminants
The soya extruder machine can provide feed pellets with high protein content. The finished feed will help stimulate and improve the digestive system of ruminants.
pets
Our soya extruder mill will help improve the grain gelatinization and ripening degree. They have almost no burden on the digestive system of pets.
aquatic animals
The finished soya pellets can be used for aquatic animals, such as fish and shrimp. They have high nutritional value, ensuring they grow more quickly and healthily.
Main Components of
Soya Extruder Machine

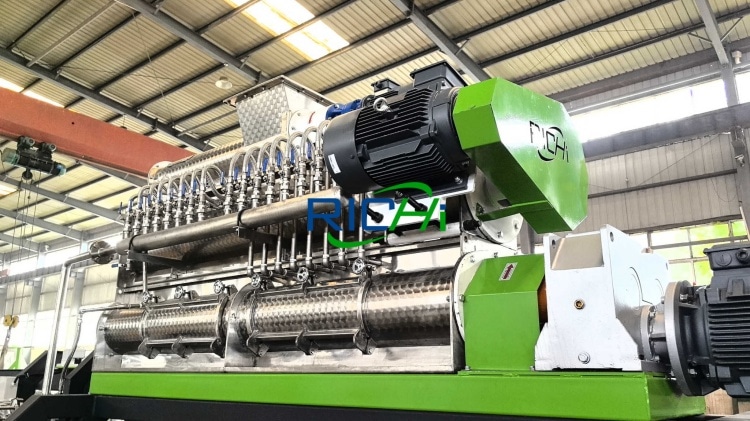

Variable Frequency Feeder
The variable frequency feeder can realize precise feeding according to your production needs. You can control the feeding rate by adjusting the variable frequency motor. This will prevent uneven feeding and high load operation of the machine.

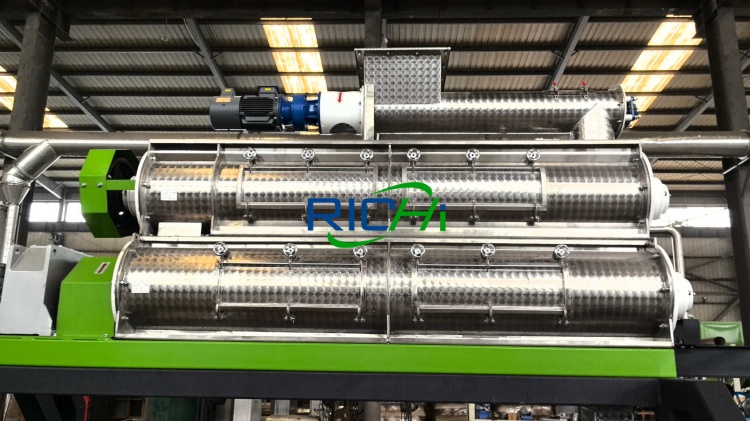

Conditioner
It is the key equipment for softening materials. The crushed raw materials will be fully mixed with injected steam and water. The thoroughly conditioned raw materials will enhance the extruding effect.

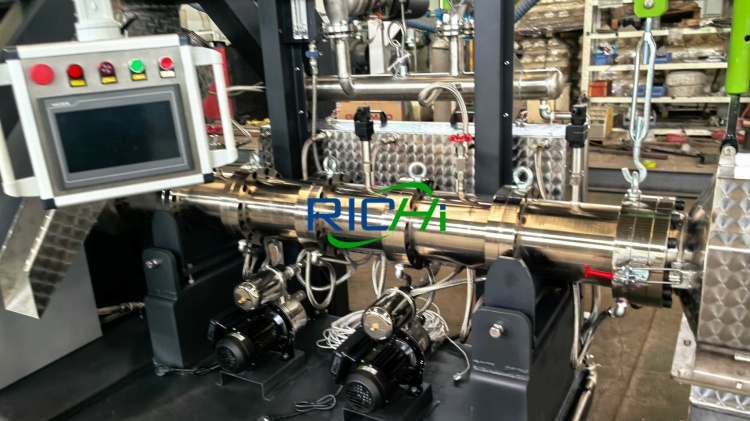

Puffing Cavity
Our soya extruder is equipped with a large extruding cavity. It can secondarily mix the soya to make its water content uniform. You can control the extrusion efficiency by adjusting the screw and pitch.

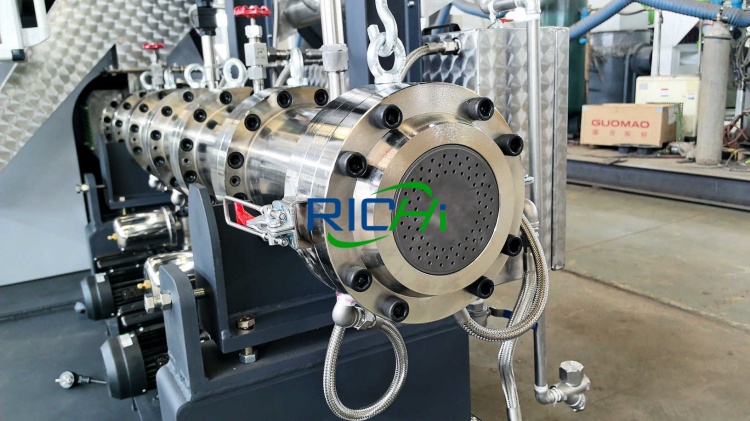

Granulation Mold
The granulation mold is the key device to control the pellet size and shape. You can get different sizes and shapes of soya pellets by changing the die and die hole specifications. The diameter of the mold ranges from 0.6mm to 20mm for your selection.

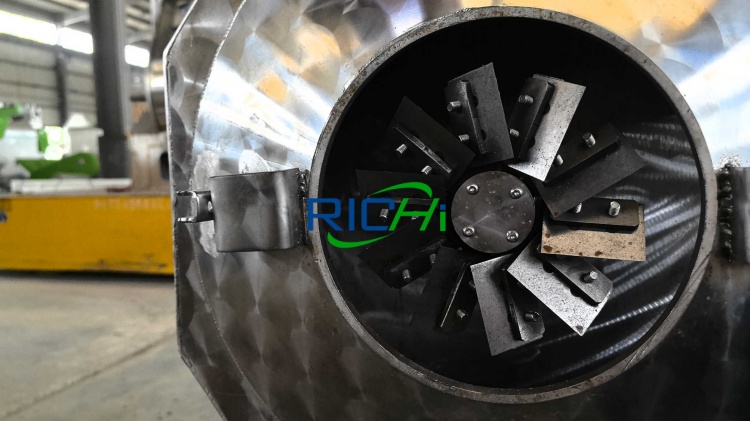

Cutting Blade Device
The cutting blade device can help you freely control the pellet length. We can also customize the mold shape according to your preference. Our cutting blade is made of stainless steel, which is wear-resistant and durable.
global project cases
Our soya extruder machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This provides a valuable reference for your equipment selection and application needs.

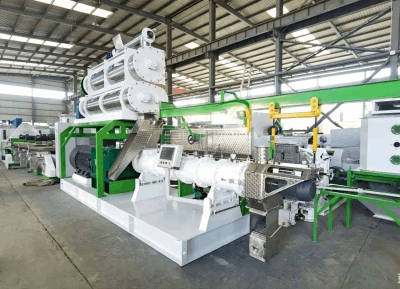

1.2-2 T/H grain Soya production line extruder In Peru
The client has abundant corn and soya resources. They mainly provide feed for farms in the surrounding areas and countries. They want a pellet machine to improve the resource utilization rate for more profit. We provide them with a 7.5 kW conditioned grain extruder. This equipment has a conditioner. It can efficiently process various grains.
- Raw materials: soya, corn, wheat.
- Finished Pellet Diameter: 4-10mm
- Extruder Machine Model: RCYP160G

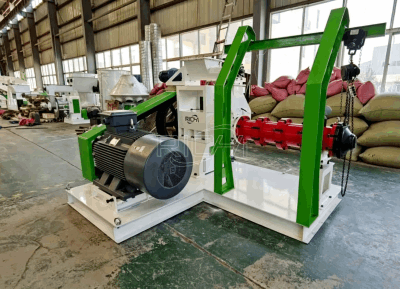

1 T/H grain Soya Feed Extruding machine In Senegal
The client is a small pet feed processing plant. They have abundant agricultural resources but with low utilization. They want a pellet mill with a high formation rate. We provide them with a crusher, mixer, dryer, and an extruder. The final pellet formation rate can reach 96%. In addition, the finished pellet has low powder content. The client is very satisfied.
- Raw materials: corn, soybean, premix.
- Finished Pellet Diameter: 2-12mm
- Extruder Machine Model: RCYP140G

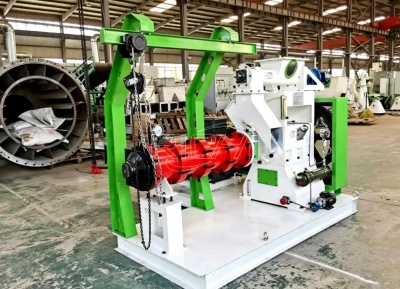

0.4-0.8 T/H grain Soya Extruding machine In Moldova
The client has 300,000 fish fry. They are looking forward to having an extruder to enhance the floating performance of fish feed. We provide them with a crusher, mixer, and an extruder. The finished pellets can float for up to 6 hours. What’s more, this extruder can process various grains based on different formulas. The finished pellets maintain excellent water resistance.
- Raw materials: wheat, corn, soybean.
- Finished Pellet Diameter: 2-8mm
- Extruder Machine Model: RCYP140G
Advantages Of soybean extruder for sale
Excellent Production Capability
Compared with similar models, the production capability of our full fat soya extruder machine is increased by 15% to 20%. You can produce feed pellets with different characteristics on the same machine. What’s more, our machine can consistently operate for over 16 hours.
High-efficiency Maintenance Design
The RICHI soya extruder mill has a safety device. It will automatically shut off power in case of excessive pressure or resistance, preventing damage to critical components. In addition, we adopt a modular design. If key components are out of order, you can replace them easily without a large crew.
Energy Saving & Environmental Production
Our soybean extruder adopts a wear-resistant alloy design. This design provides our machines with a lower failure probability, less energy consumption, and a longer service life. We have pulse dust collectors and an enclosed production line to prevent dust and cross-contamination.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
