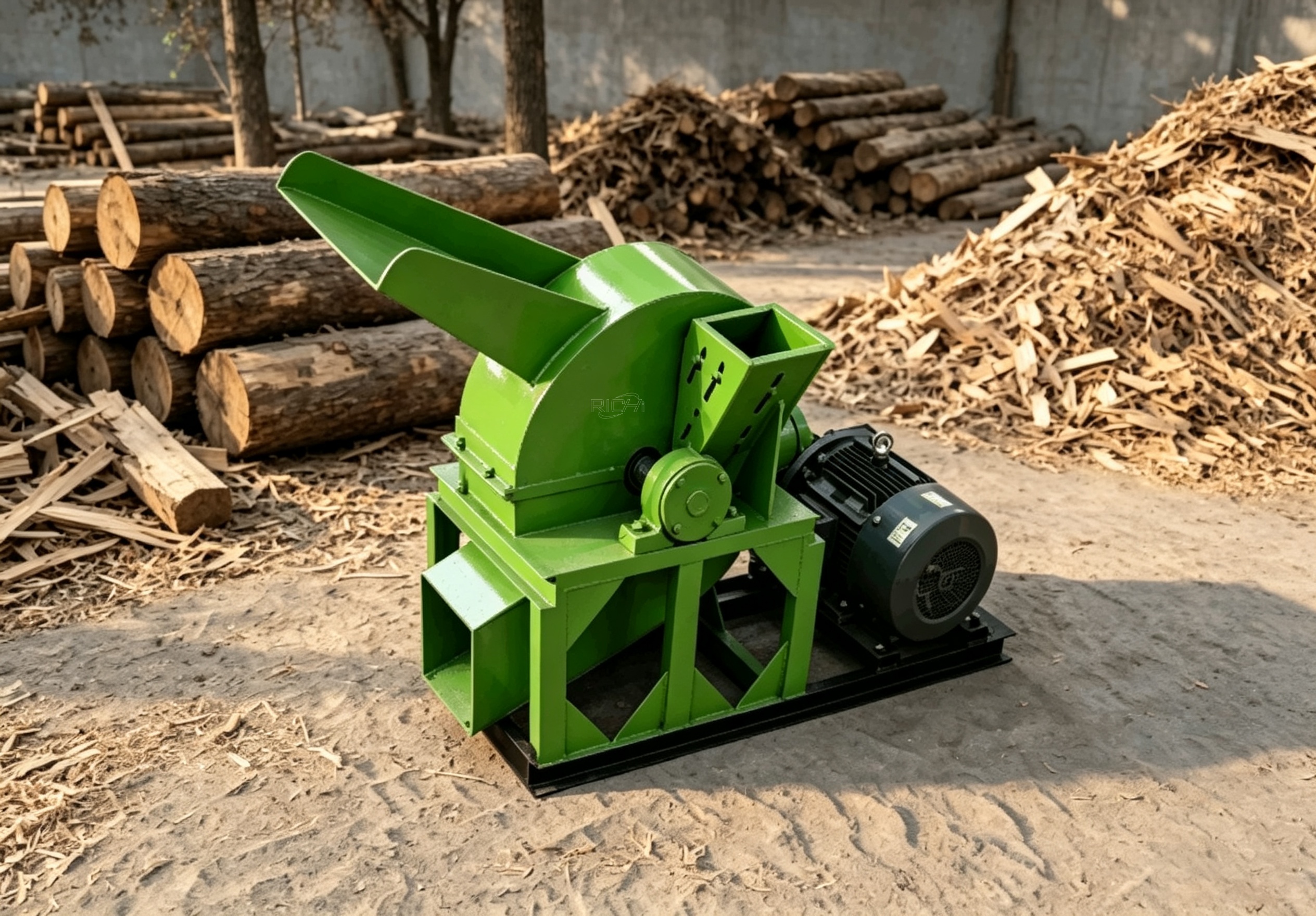

Tree Crusher Machine
crushing process video of Tree Crusher Machine
High Compatibility With Various Wood Raw Materials.
The RICHI tree root crusher is capable of processing various wood raw materials, such as logs, wood chips, sawdust, waste pallets, tree bark, straw, grass, and even some bamboo. Whether it is dry or wet, our machine can process it. We have a specialized drying system to help you dry the excess moisture from raw materials to a suitable level for pelleting. This video shows its entire production process.
Production Capacity:
0.2-4T/H
Pellet Diameter:
4-12mm
videos Of different Tree Crusher models
We have different types of wood crusher machines to match the varying wood crushing needs. The following is the specific work process of different tree crusher machines.

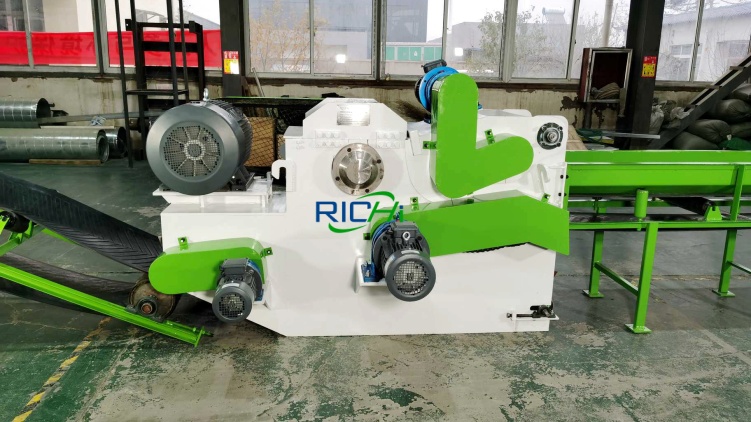

Drum Chipper
The diameter of logs is usually large. They can’t be pelleted directly. The Drum chipper will help them form thin slices of about 3mm for further processing.

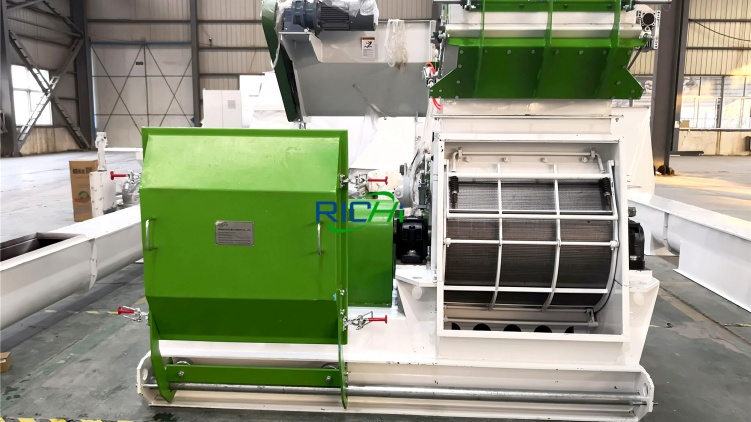

SFSP Water Droplet Crusher
The SFSP water droplet crusher will directly crush the sliced wood chips into sawdust with 3-5mm in diameter.
Sawdust Crusher
The RICHI sawdust crusher is suitable for small wood blocks and low‑volume logs. It can help you maximize economic benefits.

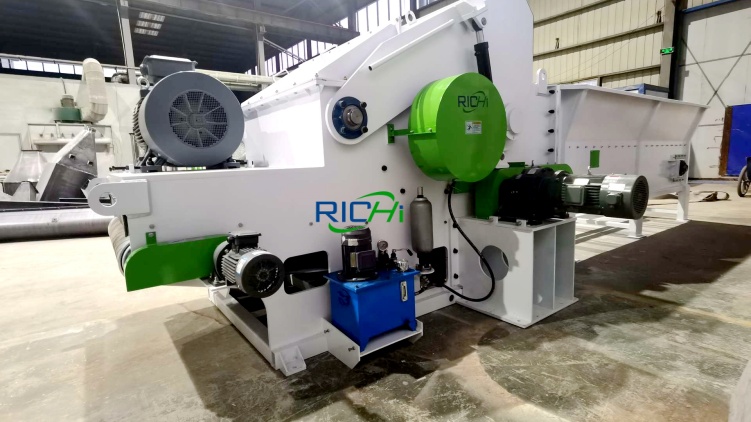

Template Crusher
Our template crusher can produce various wood waste, such as wooden pallets, wooden boards, and old furniture with nails.
parameters of
Tree Crusher Machine
We have a minimum output capacity of 0.2 T/H and a maximum of 4 T/H. You can select the models that perfectly match your production requirements.
Drum Chipper
| Model | XPJ500x230 | XPJ680x300 | XPJ500*500 | XPJ850*500 | XPJ1200*500 | XPJ850*600 |
| Main Motor Power（kw） | 75 | 90 | 110 | 132 | 200 | 200 |
| Feed Motor Power（kw） | 4+3 | 4+3 | 4+3 | 4+3 | 5.5+4 | 7.5+7.5 |
| Hydraulic Pump Pow（kw） | 0.75 | |||||
| Discharge Belt Powe（kw） | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
SFSP Water Droplet Crusher
| Model | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP66*120 | SFSP66*150 | |||||||
| Rotor Diameter（mm） | 560 | 660 | 660 | 660 | 660 | 660 | |||||||
| Rotating Spee（rpm） | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 | |||||||
| Power（kw） | 37 | 55 | 75 | 75 | 90 | 110 | 110 | 132 | 160 | 160 | 185 | 220 | 220 |
| Grain production（t/h） | 3-5 | 5-6 | 6-7 | / | 8-10 | 10-12 | / | 15-17 | 20-22 | / | 25-27 | 30-32 | 40-50 |
| Forage/strw production (t/h) | 0.8-1.0 | 1.0-1.5 | / | 2.0-2.5 | / | / | 3.0-4.0 | / | / | / | 5.0-6.0 | / | 7.0-8.0 |
| wood production（t/h） | 0.5-0.6 | 1.0-1.2 | / | / | 2.0-2.5 | / | / | 3.0-4.0 | / | / | 4.0-5.0 | 5.0-6.0 | 7.0-8.0 |

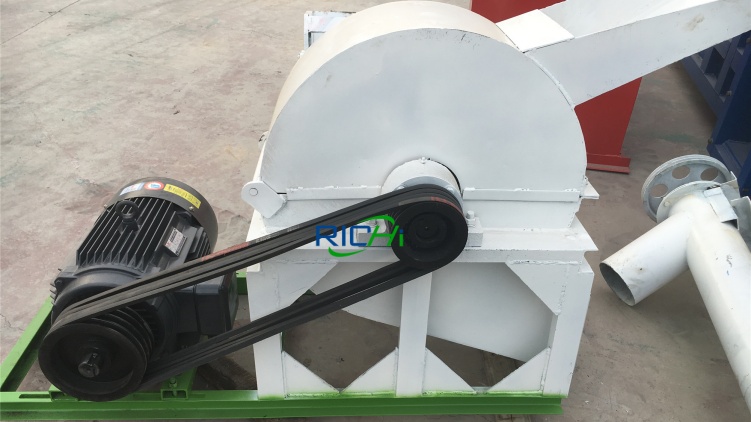

Wood Chip Grinder
| Model | RI-600 | RI-800 | RI-1000 | RI-1200 |
| Power（kw） | 30 | 45 | 75 | 90 |
| Maximum Processing Diameter (mm) | 170 | 220 | 320 | 360 |
| Number Df Cutters | 4 | 4 | 6 | 8 |
| Number Of Hammer Blades | 15 | 24 | 36 | 48 |
Template Crusher
| Model | RIBPC 1000*300 | RIBPC 1000*350 | RIBPC 1250*400 | RIBPC 1250*450 | RIBPC 1250*500a | RIBPC 1250*500b | RIBPC 1500*450 |
| Feed inlet size (mm) | 1000*300 | 1000*350 | 1250*400 | 1250*450 | 1250*500 | 1250*500 | 1500*450 |
| Main Motor Power（kw） | 75 | 90 | 110 | 132 | 160 | 220 | 220 |
| Feed Motor Power（kw） | 4*2 | 5.5*2 | 7.5*2 | 11+7.5 | 11+7.5 | 11+7.5 | 11+7.5 |
| Discharge conveyor power (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Number of hammers | 20 | 24 | 24 | 24 | 28 | 32 | 32 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
auxiliary equipment of
Tree Crusher Machine

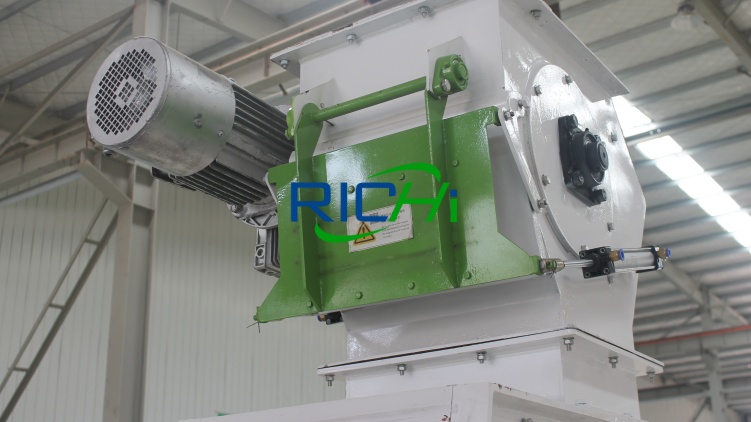

Forced Feeder
The forced feeder will push various woods into the crusher. It will prevent the feeding speed from being too fast or too slow. What’s more, this operation will well protect the motors from serious damage caused by machine blockage or overheating.

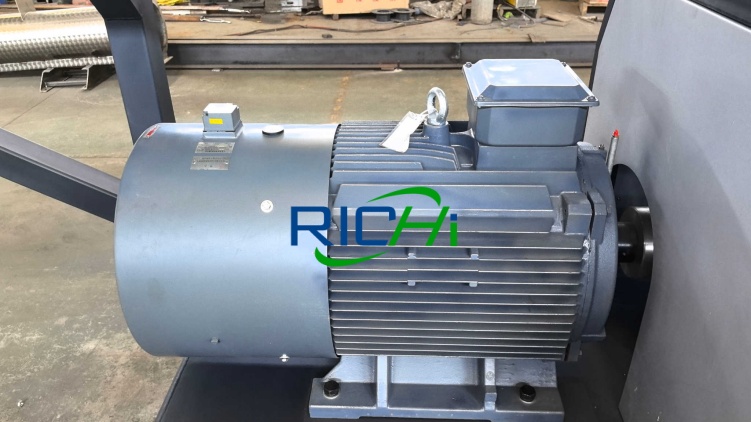

Siemens Motors
The main motors of the RICHI tree crushers are all equipped with high-efficiency Siemens motors. This will provide our machine with higher output and lower energy consumption.

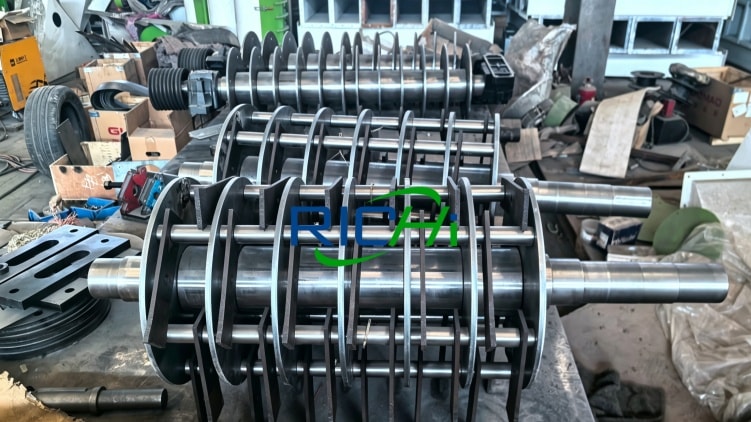

Hammer
The main function of the hammer is to grind the wood raw materials into smaller particles. We have hammers with a thickness of 3-5 mm for your selection. They are made of 45 steel, ensuring high durability.

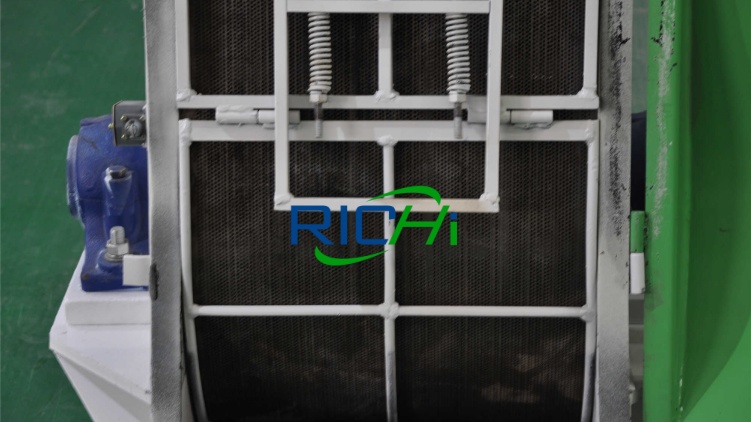

Sieve Mesh
Our sieve mesh will help control the size of crushed raw materials. Usually, the crushed wood raw materials are suggested to maintain 3-8 mm in diameter. If the crushed raw materials are too large, they need to be secondary crushed.

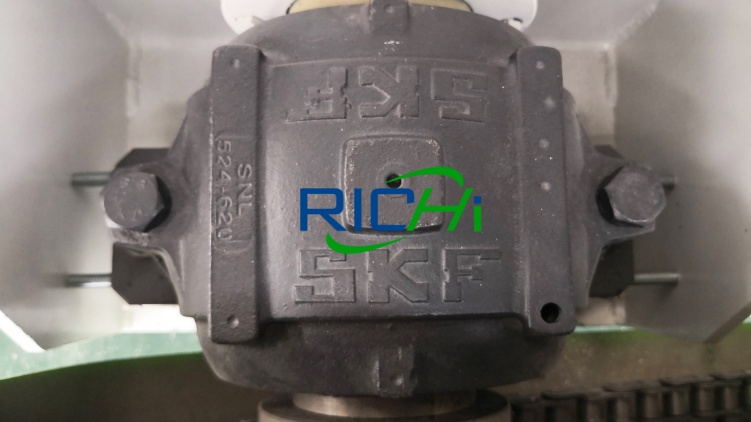

SKF Bearing
Our tree crusher mill is equipped with superior SKF bearings. They have excellent wear resistance and durability, ensuring our bearings can serve for a long time. In addition, they will significantly help reduce equipment maintenance costs and energy consumption.
global project cases
Our tree crusher machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This provides a valuable reference for your equipment selection and application needs.

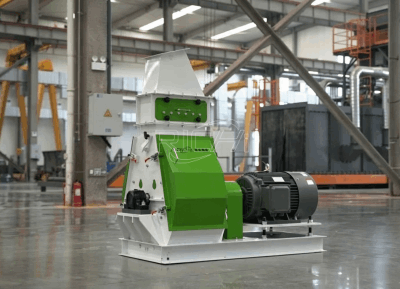

1.5-2T/H Biomass Wood Production Line crusher machine In Mexico
The client has a medium-sized wood processing plant. They had an existing production line but with low production capability and uneven crushed pellet sizes. We helped them upgrade the entire production line. The current output is triple the original level, and the pellet size is uniform. The crushed raw materials are uniform and qualified.
- Raw materials: wood branches, sawdust, etc.
- Finished Pellet Diameter: 5-10 mm
- Main Device: crusher, granulator, dryer.

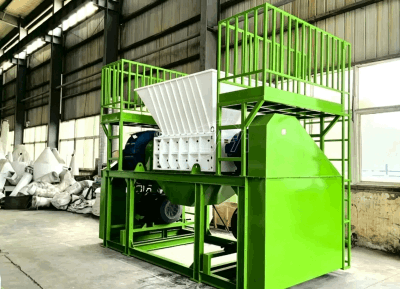

3 T/H Wood Fuel Pellet Production Plant crusher machine In Norway
The raw materials that the client processes are mainly wood waste and furniture waste. These raw materials always have large lumps. We provided the client with a crusher and other auxiliary equipment. This crusher machine can process various wood raw materials with varying volumes and water content. Its production efficiency is stable.
- Raw materials: branches, bark, pallets, etc.
- Finished Pellet Diameter: 4-12 mm
- Main Device: crusher, granulator, cooler.

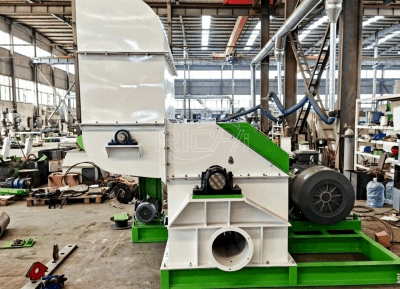

1-1.2T/H Wood Pellet Production Line crusher machine In Portugal
The client has abundant agricultural and forestry resources. The client wants a production line that can process wood and straw at the same time. We recommend our crusher to them. It can process both wood and straws efficiently. In addition, we dispatched 3 engineers to help them complete the installation of the entire line.
- Raw materials: wheat straw, spruce, beech.
- Finished Pellet Diameter: 4-12 mm
- Main Device: crusher, granulator.
Advantages of tree crusher machine
Wear-Resistant Alloy Steel Design
The RICHI tree branch crusher is equipped with high-efficiency Siemens motors and high-wear-resistant alloy steel rings. These designs provide our machines with a lower failure probability, lower maintenance costs, and longer service life.
Maintenance-Friendly Design.
The entire line adopts a fully modular construction. If the key components are out of order, you can only replace the damaged parts. In addition, we can flexibly combine and install the equipment according to your production needs.
Overload Protection Device
The RICHI tree crusher for sale is equipped with a safety lock device. When the pressure or resistance is excessive, it will automatically shut off the power. This design can effectively prevent damage to critical components and give the machine a longer service life.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
