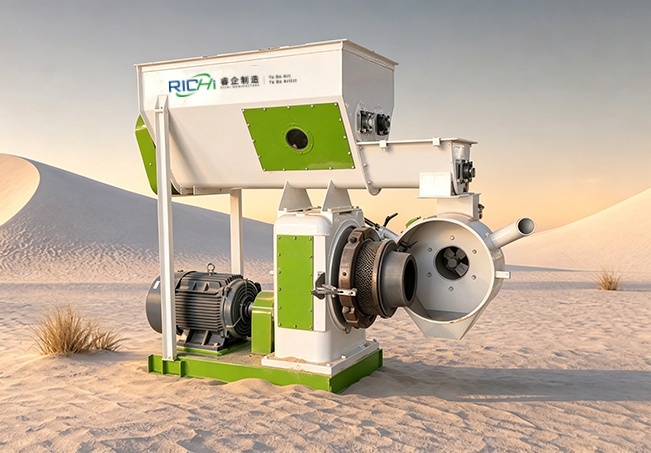

Compost Granulating Machine
production process video of compost granulating Machine
Wide Compatibility & Superior Manufacturing.
The RICHI compost pelleting machine can process various wastes, such as animal manure, straw, and kitchen waste. It can achieve precise batching and efficient production according to different production needs. The final pellet hardness, size, fines content, compost maturity, and safety performance all meet the industrial standard. The finished compost can help you maximize profits and minimize costs. This video shows its basic pelleting process.
Production Capacity:
1-26 T/H
Pellet Diameter:
4-12mm
parameters of
Compost Granulating Machine
We have multiple models of compost pellet machines for your selection. You can select the model that perfectly matches your production requirements.
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power (kw) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking Feeder Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4~12 | ||||||
| Output (t/h) | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
strengths of compost
The RICHI compost granulating machine can produce various organic fertilizers and organic compound fertilizers. They can promote crops to grow healthily and strongly. The following are some specific strengths.
Improve Soil Structure
Compost is abundant in organic matter, which can help improve soil compaction and acidification. At the same time, this will help the soil enhance its water retention capacity.
Balanced Nutrition & Harmless
Compost contains various trace elements, including nitrogen, potassium, and calcium. They will provide nutrients for the soil for up to 6 months during natural degradation.
Increase Crop Yield
The obvious function of organic fertilizer is to increase crop yield while improving soil structure. What’s more, it even helps improve crop quality to make them more delicious.
Environmentally Friendly
Organic fertilizer is made of nutritional and harmless raw materials. They can naturally degrade, which will have almost no negative impact on soil quality and the environment.
main components of
compost granulating Machine

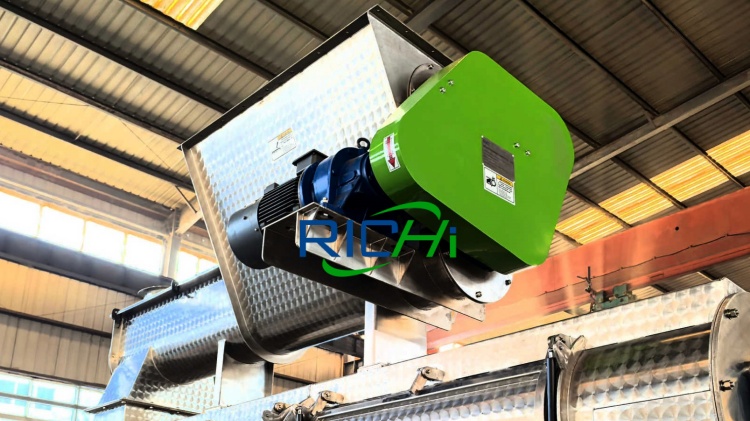

Variable Frequency feeder
The variable frequency feeder is mainly used for controlling the feeding speed. You can adjust the feeding speed according to your production needs at any time. This will help you minimize raw material consumption.

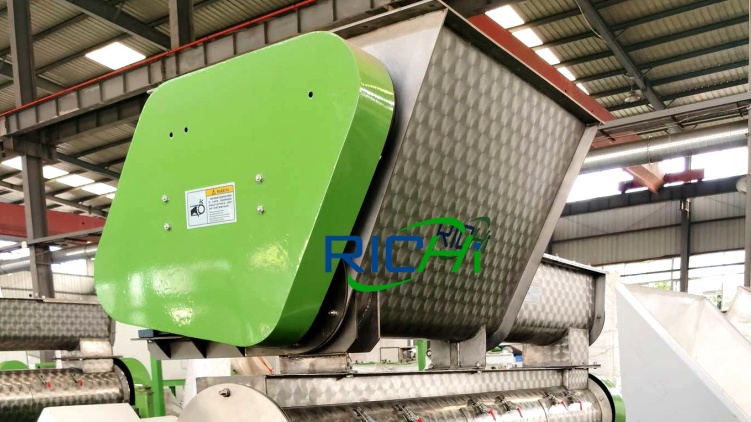

Arch-Breaking Feeder
Due to the crushed straws having high water content, they are easy to arch. Our arch-breaking feeder will help push them into the granulator, preventing raw material adhesion.

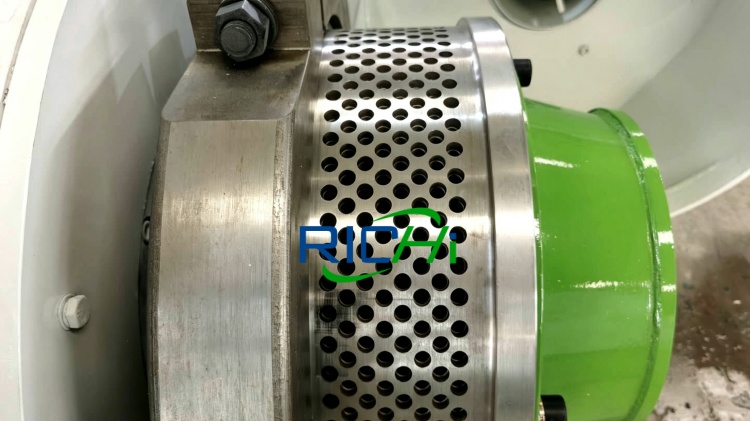

Ring Die
When the fermentation process is finished, the raw materials will be sent for pelleting. We have different ring dies with varying specifications. You can select different ring dies for specific pellet sizes.

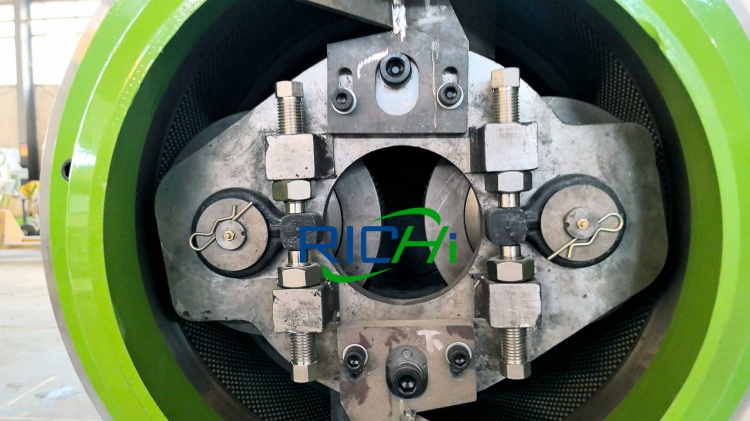

Pressure Roller
The pressure rollers will effectively help push the fermented raw materials into the granulation cavity. The compression ratio can be adjusted. In addition, our rollers are made of alloy steel, which can prevent raw material adhesion and machine malfunctions.

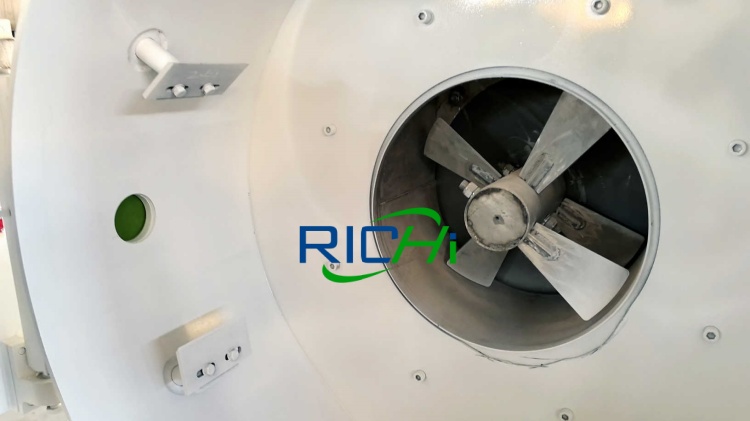

Cutting Blade Device
The RICHI cutting blade device can bring pellets with different lengths. Its shape can be customized according to your preference. Our cutting blade device can service for a long time because of its stainless design.
global project cases
Our compost granulating machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value.

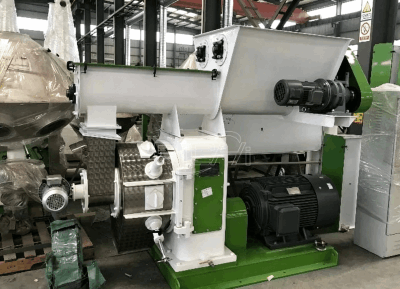

3-4T/H Compost Fertilizer making machine In Greece
The client is a local compost processing plant. They mainly supply compost to nearby countries and areas. The client wants to produce powdered fertilizer. So we provide them with a crusher, compost turner, cooler, and an automatic packaging machine without a granulator. This compost granulator can produce pellets with varying sizes.
- Raw materials: cattle manure, wheat straw.
- Finished Pellet Diameter: 4-6 mm
- Pellet Machine Model: FZLH-350

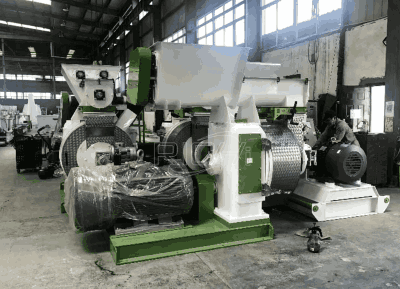

2 T/H Compost Fertilizer Pellet making machine In Thailand
The client has his own chicken farm and abundant agricultural resources. They want a compost pellet making machine to process the large amounts of chicken manure. We dispatched 2 engineers to help them complete the entire production line. In addition, we provided them with a remote online installation guide.
- Raw materials: chicken manure, rice straw.
- Finished Pellet Diameter: 4 -8 mm.
- Pellet Machine Model: FZLH-320

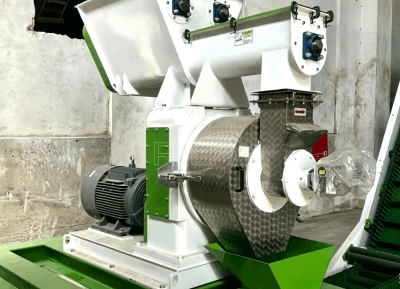

1.5-2T/H Organic Compost Fertilizer making machine In Mexico
The client wants organic compost fertilizer production equipment to increase the potassium content in the fertilizer. We provided the client with a mixer, compost turner, cooler, granulator, screener, and other auxiliary equipment. The client is very satisfied with this cooperation. We quickly reached an agreement on the partnership.
- Raw materials: chicken manure, corn straw.
- Finished Pellet Diameter: 3-7mm
- Pellet Machine Model: FZLH-320
Advantages of Compost Granulating Machine
Energy-efficient
The RICHI compost fertilizer making machine is equipped with high-efficiency Siemens motors and a high-precision gear rotation design. These designs provide our machines with a lower failure probability, lower energy consumption, and longer service life.
Environmental Production
We have specialized pulse dust collectors to remove dust from raw materials. The entire production line operates within enclosed systems, effectively preventing dust pollution. In addition, we use high-quality imported bearings to ensure efficient and low-noise operation.
Safety Protection Design
Our electric compost machine has a safety device. It will automatically shut off the power when the pressure or resistance is excessive, preventing damage to critical components. This design will better protect efficient and stable production.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
