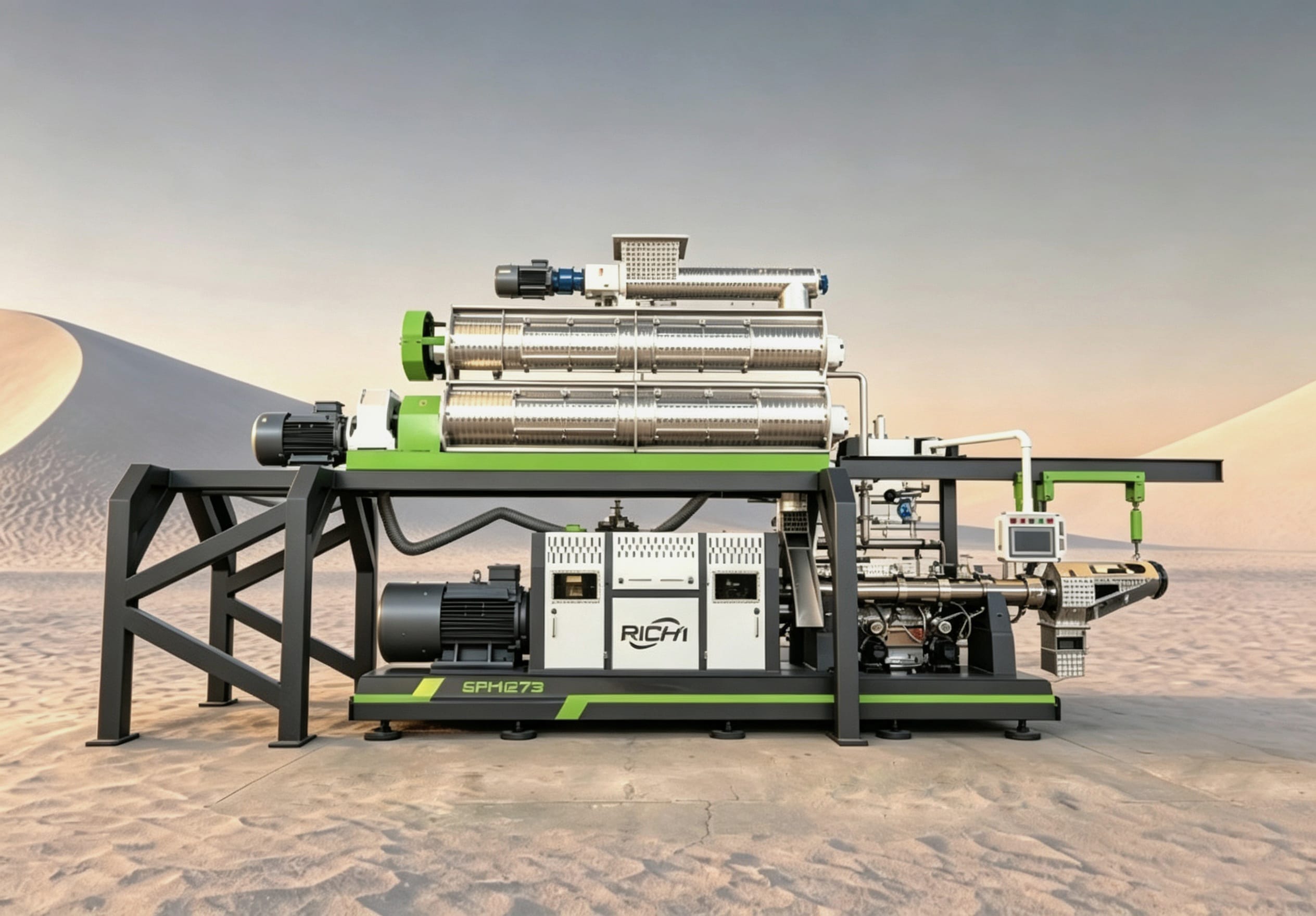

Dog Food Extruder Machine
Production process video of dog food extruder machine
Optimum Manufacturing Brings High Patalability.
The RICHI dog treat extruder adopts high-quality bearings and Siemens motors. It can produce high-quality pellets with its precise proportioning and high-efficiency manufacturing. The final pellet hardness, size, powder content, ripening degree, gelatinization degree, and palatability all meet industrial standards. They will highly match the nutritional and physical requirements of dogs. This video shows the entire dog food production process.
Production Capacity:
0.2-12T/H
Pellet Diameter:
1-12mm
parameters of
Dog Food Extruder Machine
The following is the main parameters table for RICHI dog food extruder models. You can select the machine models that perfectly match your production requirements.
Single-Screw Extruder Machine
| Model | DGP-90B | DGP-120B | DGP-160B | DSP-90B | DSP-135B |
| Output (t/h) | 0.2-0.4 | 0.5-0.6 | 0.8-1.0 | 0.5-0.6 | 0.8-1.0 |
| Main Motor Power (kw) | 37 | 55 | 90 | 37 | 75 |
| Feeder Motor Power (kw) | 0.75 | 202 | 3 | 7.5 | 7.5 |
| Cutting Power (kw) | 0.55 | 1.1 | 1.5 | 1.1 | 1.5 |
Twin-Screw Extruder Machine
| Model | SPHS75x2 | SPHS120*2 | SPHS120*2 | SPHS150*2 | SPHS185*2 |
| Output (t/h) | 0.5-1.0 | 1.5-2.0 | 3.0-4.0 | 5.0-6.0 | 10-12 |
| Main Motor Power (kw) | 55 | 90 | 110 | 200 | 355 |
| Feeder Motor Power (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Modulator Power (kw) | 7.5 | 11 | 11 | 11 | 11 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
Main Components of
Dog Food Extruder Machine

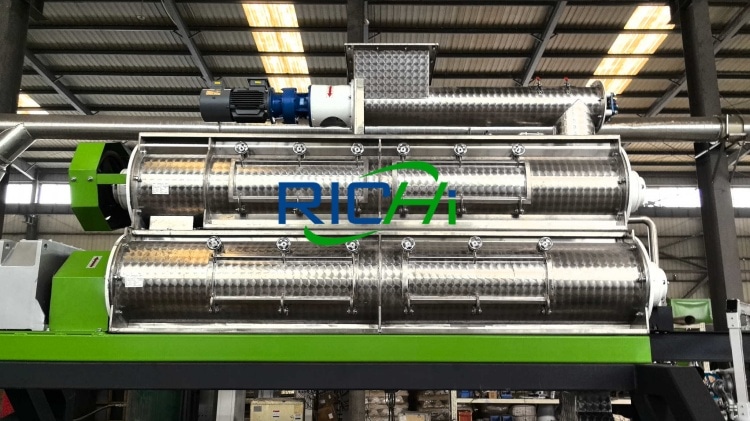

Multi-Stage Conditioner
When the crushed raw materials enter the conditioner, they will be fully mixed with injected steam. The process promotes the mixing of different raw materials. You can control the conditioning time and gelatinization degree by adjusting the number of conditioners.

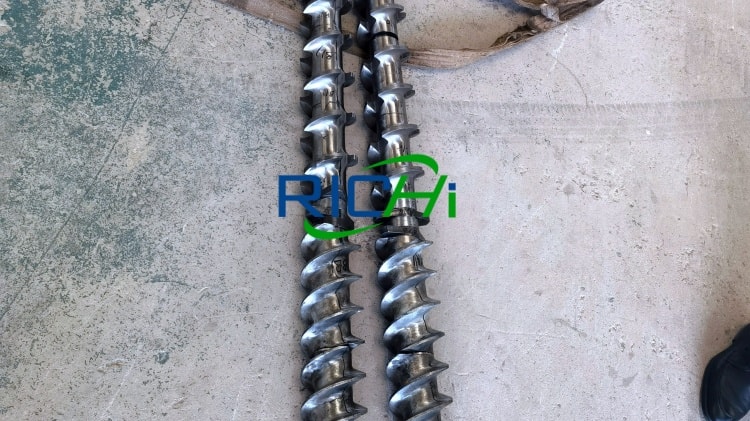

Screw & Pitch
The screw and pitch are the essential components for extruding pellets. Different specifications of the screw and pitch will provide you with different dog food pellets with varying sizes and densities.

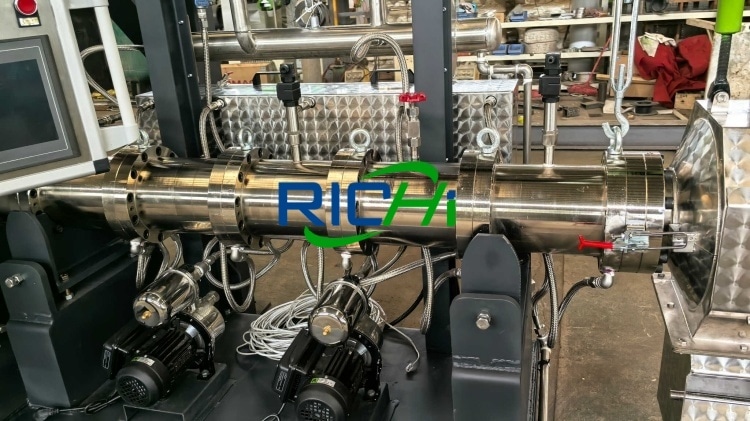

Puffing Chamber
The puffing chamber is the key device for storing and pelleting. The water content of the raw materials is best maintained between 24% and 25% before entering the extruder. After extrusion, the finished pellets need to be sprayed with an appropriate amount of oil to ensure the required oil content.

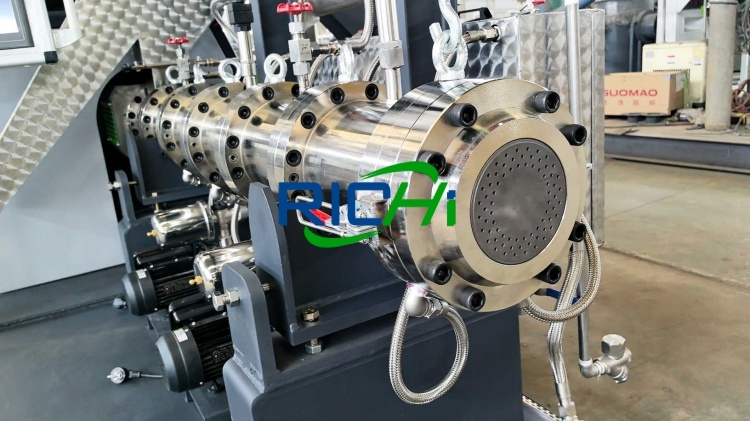

Granulation Mold
The granulation mold is the key device to control the pellet sizes and shapes. You can get different sizes and shapes of pellets by changing the die and die hole specifications. The diameter of the mold ranges from 0.6mm to 20mm for your selection.

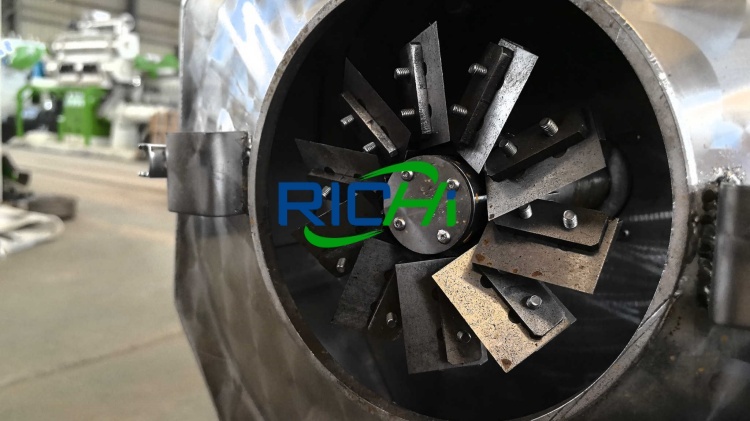

Cutting Blade Device
The cutting blade device can help you freely control the pellet length. We can also customize the mold shape according to your preference.
Auxiliary Equipment Of
Dog Food Extruder Machine
RICHI has many other auxiliary equipment to help the dog food extruder produce high-quality pellets. The following equipment may offer you some references.

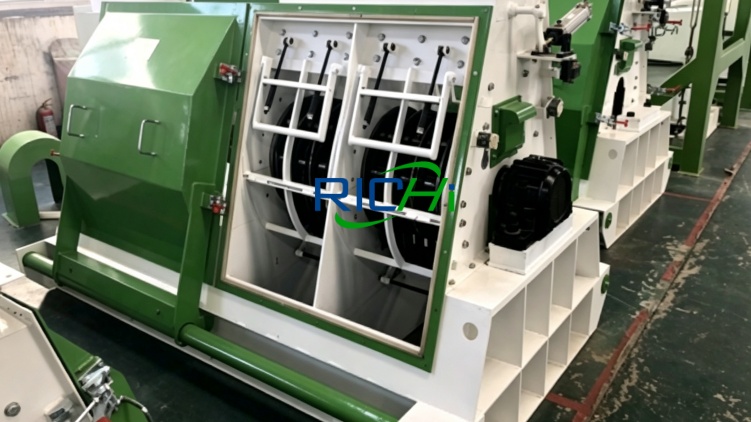

SFSP Water Droplet Crusher

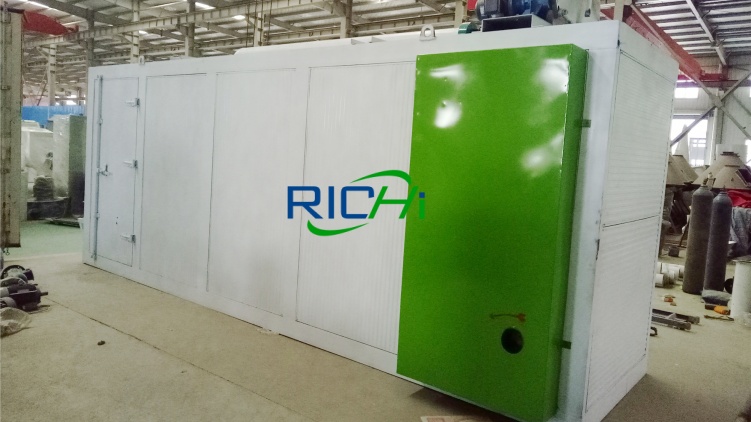

Drying oven

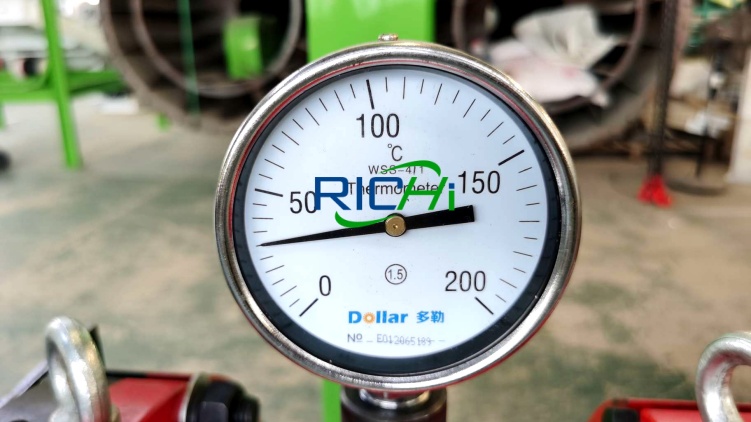

Thermometer

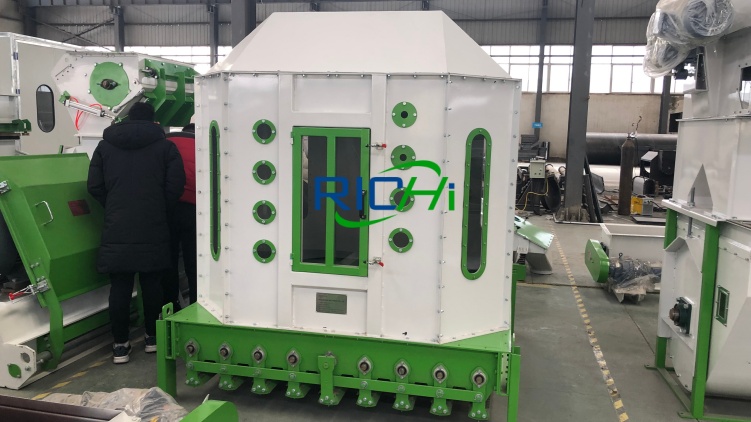

Counter-Flow Cooler

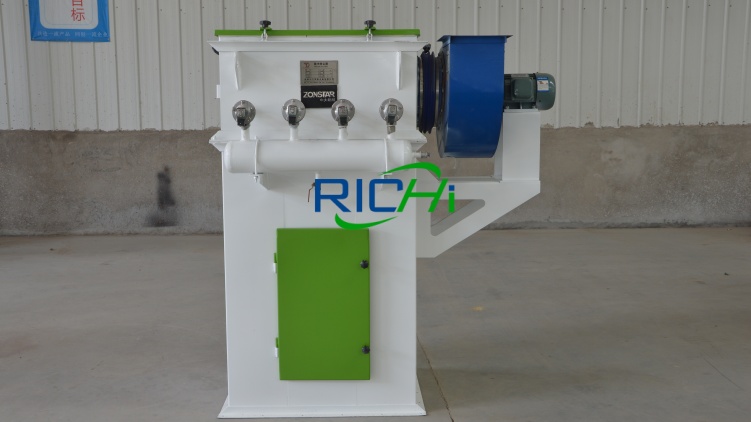

Pulse Dust Collector

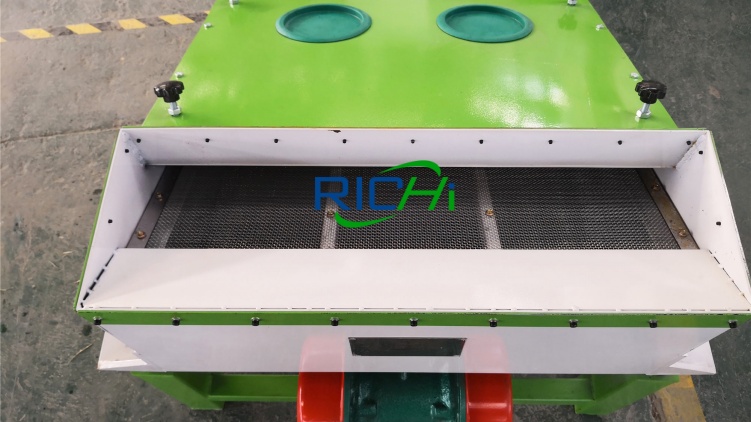

Vibrating Screener

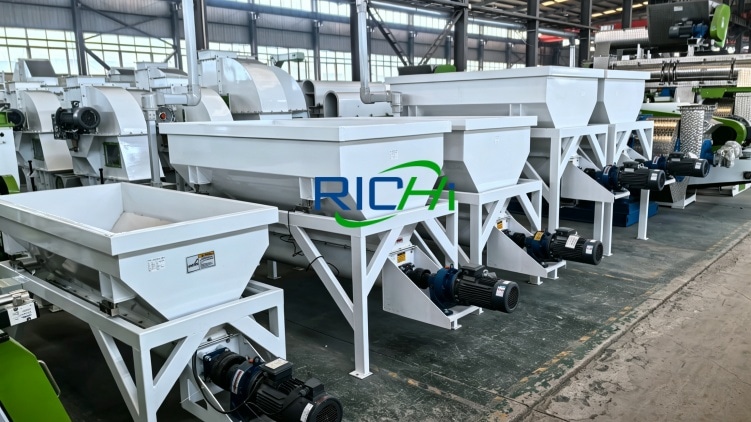

Electronic Packing Scale

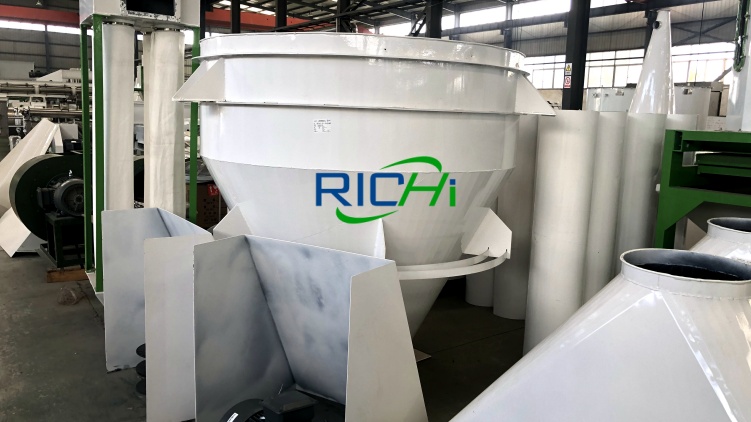

Batching Scale
global project cases
Our dog food extruder machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This may offer some references for your equipment selection and application needs.

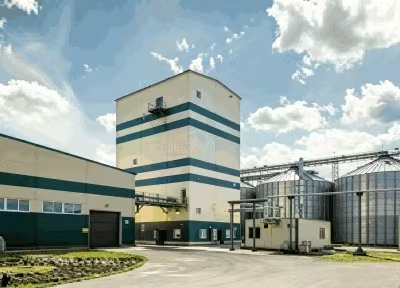

3-4 T/H Dog Feed Pellet processing plant In Ireland
The client is a local pet feed pellet production plant. They have abundant high-quality meat raw materials such as cattle, sheep, and fish. They mainly supply premium pet pellets to nearby countries. They have their own formulation. They want a pellet mill that can fully mix various protein ingredients, achieving a high formation rate with superior pellet quality.
- Raw materials: beef, fish meal, corn, barley.
- Finished Pellet Diameter: 1.5-6mm
- Pellet Machine Model: SPHS120*2

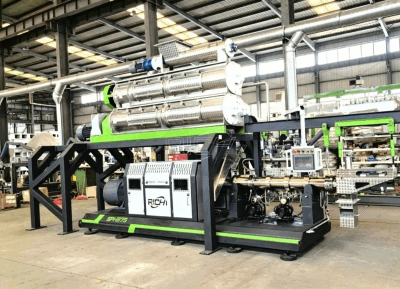

1.5-2 T/H Dog Feed Pellet making machine In Vietnam
The client is a small pet feed production plant. The client has an existing production line. However, the finished pellets are uneven in size. In addition, many raw materials have high moisture content, making them difficult and costly to process. So the client wants an extruder, which can process various raw materials. We customized a dryer and an extruder for them. The client was very satisfied.
- Raw materials: chicken, cassava, fish meal.
- Finished Pellet Diameter: 3-7mm
- Pellet Machine Model: SPHS120*2

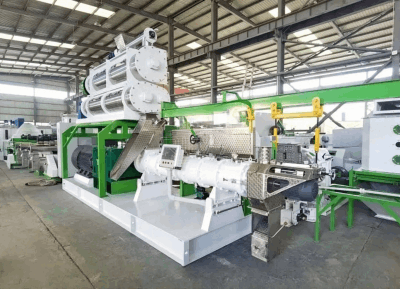

0.8-1 T/H Dog Food Pellet making machine In India
The client is a local specialized dog food processing supplier. They mainly provide feed pellets for large, small, and medium-sized dogs in the surrounding countries and regions. We designed the entire production line for them. In addition, we provided them with detailed guidance on adjusting ring die specifications and raw material pre-processing.
- Raw materials: chicken, rice bran, corn.
- Finished Pellet Diameter: 1-12mm
- Pellet Machine Model: DSP-135B
Advantages of Dog Food Extruder for sale
High Nutrient Absorption Rate
Our dog food extruder machine is equipped with a multi-layer conditioner and a large extruder cavity. The starch gelatinization degree can be maintained at a level above 90%. Through extrusion and oil spraying, the finished pellets are nutritious and highly palatable. It will have almost no burden on the digestive system of dogs.
Flexible Modular Design
We have complete feed pellet production equipment, covering crusher, screener, extruder, spraying device, etc. All equipment can be combined and adjusted according to your production needs to suit various capacity requirements. What’s more, in case key components are out of order, you can replace them easily without a large crew.
Powerful Production Efficiency
Our dog extruder is made of wear-resistant alloy (38CrMoAi) screws. They provide our machines with a lower failure probability, lower maintenance costs, and a longer service life. The machine can operate stably for over 12 hours even under high-pressure conditions. All designs ensure stable, efficient, and continuous production.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
