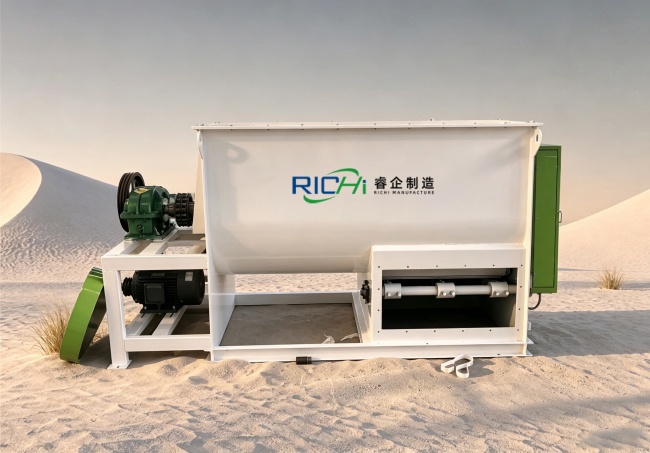

Fish Feed Mixer Machine
Production process video of fish feed mixer machine
Precise Batching According To Different Formulas.
The RICHI fish feed mixer has high raw material compatibility. It can process various raw materials, such as corn, wheat, barley, sorghum, rice bran, wheat bran, fish meal, meat and bone meal, soybean meal, rapeseed meal, cottonseed meal, oils, etc. During the mixing, you can also add some additives, such as vitamins, trace elements, amino acids, etc. We have an electronic batching scale to precisely weigh and measure the required proportions of different raw materials according to the formulation. The video shows its mixing process.
Production Capacity:
8-80T/H
Pellet Diameter:
0.5-15mm
parameters of
Fish Feed Mixer Machine
We have different mixer models for our fish feed machines to match varying raw materials and mixing requirements. You can select the machine models that perfectly match your production requirements.
Single-Shaft Double-Layer Paddle Mixer
| Model | SLHJ1A | SLHJ1B | SLHJ2A | SLHJ2B | SLHJ3A | SLHJ4A | SLHJ6A |
| Material | Carbon steel | stainless steel | Carbon steel | stainless steel | Carbon steel | Carbon steel | Carbon steel |
| Power (kw) | 11 | 11 | 22 | 22 | 30 | 37 | 55 |
| Mixing amount per batch (kg/P) | 500 | 500 | 1000 | 1000 | 1500 | 2000 | 3000 |
| Effective volume (m³) | 1 | 1 | 2 | 2 | 3 | 4 | 6 |
Twin-Shaft Paddle Mixer
| Model | SLHSJ0.5A | SLHSJ0.5B | SLHSJ1.0A | SLHSJ1.0B | SLHSJ2.0A | SLHSJ4.0A |
| Material | Carbon steel | stainless steel | Carbon steel | stainless steel | Carbon steel | Carbon steel |
| Power (kw) | 5.5 | 5.5 | 7.5 | 7.5 | 18.5 | 30 |
| Mixing amount per batch (kg/P) | 250 | 250 | 500 | 500 | 1000 | 2000 |
| Effective volume (m³) | 0.5 | 0.5 | 1 | 1 | 2 | 4 |
Single-Shaft Double Ribbon Mixer
| Model | SLHY0.5A | SLHY1.0A | SLHY1.0A | SLHY2.5L | SLHY3.5L | SLHY5.0L | SLHY7.5L |
| Power (kw) | 4 | 7.5 | 7.5 | 18.5 | 30 | 37 | 45 |
| Mixing amount per batch (kg/P) | 250(manual feeding) | 500 (manual feeding) | 500 (pneumatic feeding) | 1000 (pneumatic feeding) | 1500 (pneumatic feeding) | 2000 (pneumatic feeding) | 3000 (pneumatic feeding) |
| Effective volume (m³) | 0.5 | 1 | 1 | 2.5 | 3.5 | 5 | 7.5 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
types of feed we can mix and supply
The RICHI fish feed mixer machine can produce mixtures for various animals. The following applications may offer you some references.
Fish feed
All types of fish, including shallow-water fish and deep-water fish, can consume the finished pellets. After mixing, the finished pellet has more balanced nutrition and stronger stability in the wter.
Shrimp feed
We are experienced in shrimp feed formulation and manufacturing. We can condition different feed formulas according to the varying characteristics and physical requirements of shrimp.
Crab feed
The crabs always live in the deep water environment. Our finished pellets have high water resistance. They can keep contact in the water for over 6 hours without breaking apart.
Turtle feed
The mixed raw materials always have high degrees of maturation and gelatinization. This will promote the absorption rate without much burden on their digestive system.
Pet feed
Our fish feed mixing machine can also be used for pets, such as cats, dogs, hamsters, guinea pigs, etc. You can get different pellet sizes by changing the die and die holes specifications.
main components of
Fish Feed Mixer Machine

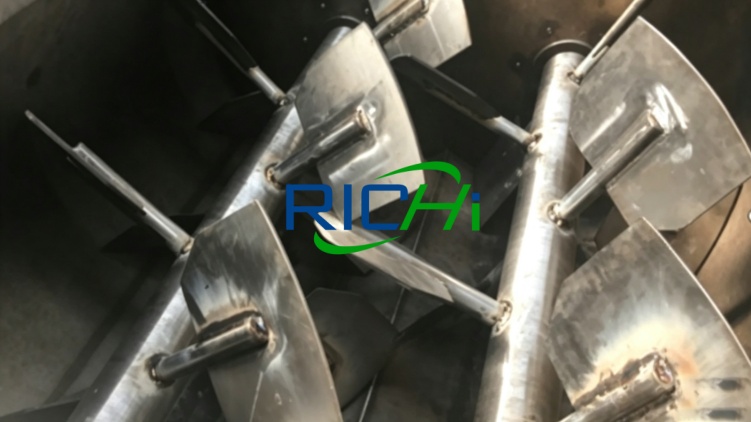

Blade
Our blades adopt wear-resistant steel and thickened design. It can process almost all raw materials with varying fiber and water content. In addition, its wear resistance and durability performance gives it a longer service life with low failure.

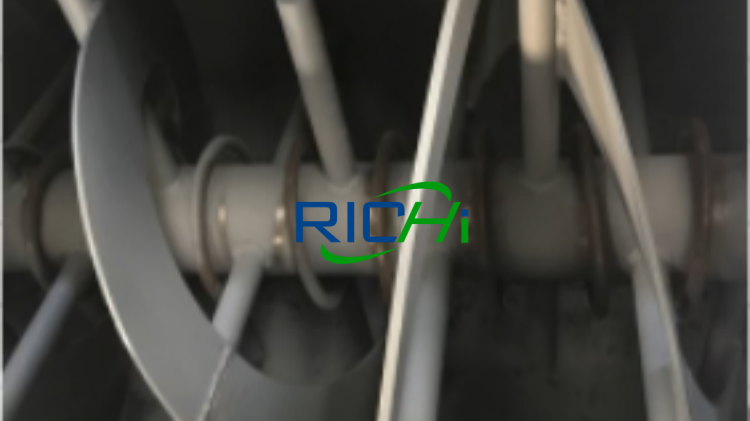

Ribbon
We adopt double ribbon design, ensuring thorough mixing of different raw materials. Whether the characters of raw materials, our mixers can peocess them all. We have various ribbon mixers models for your selection.

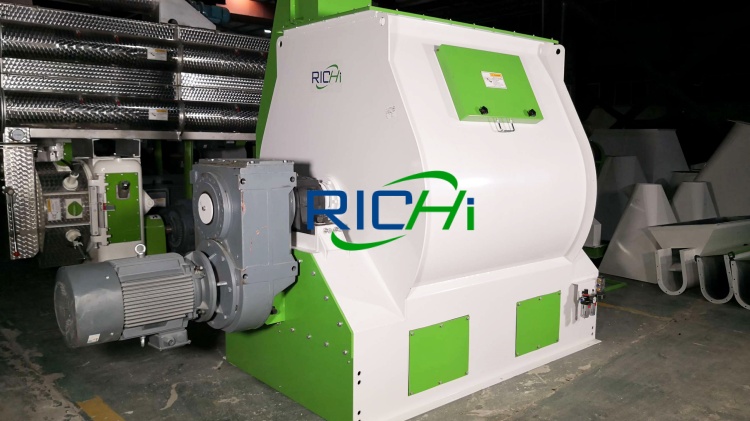

Speed Reducer
The speed reducer can help reduce the rotational speed of mixers. This will protect main motor from overloaded while maintaining efficient mixing of various raw materials. This design will help maximize output and minimize failure rate.

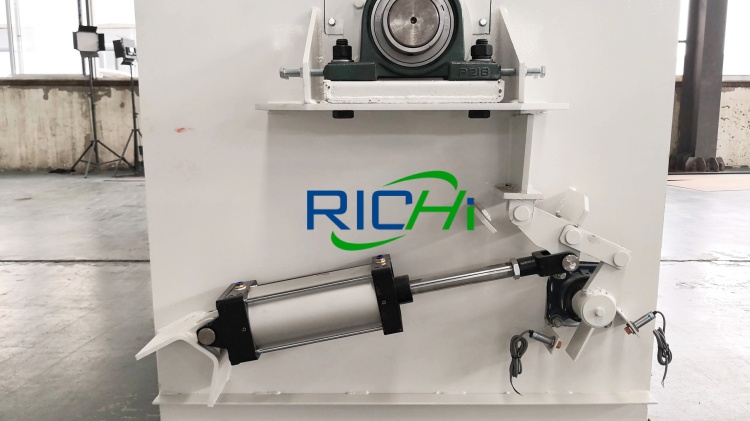

Pneumatic Discharge Device
When mixing is finished, the raw materials will be quickly discharged. What’s more, its discharge bin gate is fully closed during mixing. This entire closed process will prevent raw material pollution to ensure the high-quality of finished pellets.

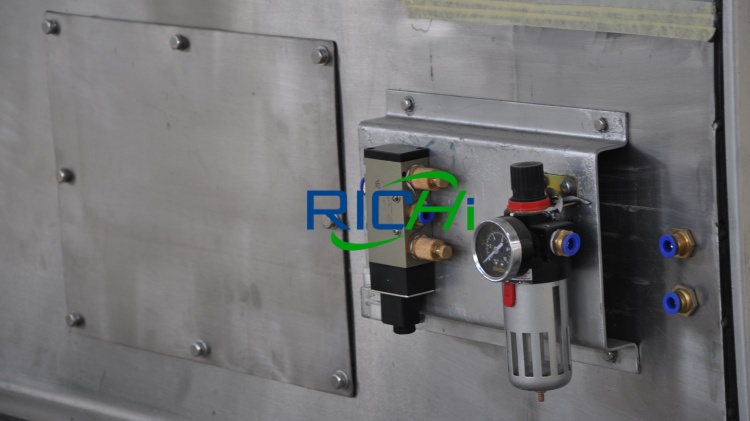

Oil-Water Separator
The RICHI oil-water separator will remove moisture, oil, and impurities from the air. This will maintain clean process during operating. In addition, this device features a built-in oil lubricator. It can lubricate the internal piston reduce the cylinder wear rate.
global project cases
Our fish feed mixer machine has been widely used in over 100 countries and regions. The following cases intuitively show the real effectiveness and application value. This may provide a valuable reference for your equipment selection and application needs.

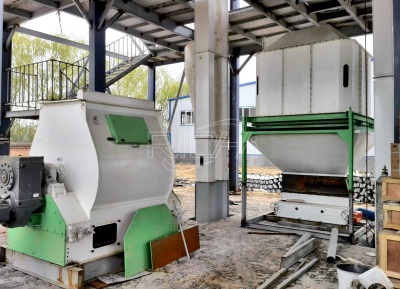

1-2 T/H Floating Fish Feed Production Line In Uzbekistan
The client is a local fish feed processing plant. They had their own production line. However, the finished pellets are difficult to float and easy to disintegrate in water. We helped the client optimize the formulation. The final formed pellets can float for over 8 hours without breaking apart. The client is very satisfied with the finished pellets.
- Raw materials: corn, fish meal, oil, premix.
- Finished Pellet Diameter: 1-6 mm
- Main Equipment: hammer mill, mixer, extruder.

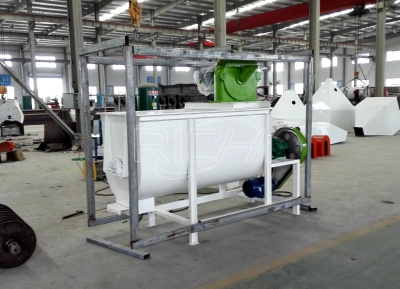

0.8 T/H Fish Feed Production Line In Bosnia and Herzegovina
The client has a large fishing ground. They want a production line to produce fish feed pellets for fish at different growth stages. Our technical team designed an entire production line for the client. At the same time, we provided them with some necessary auxiliary equipment and detailed operation guidance.
- Raw materials: corn, rice bran, wheat bran, oil.
- Finished Pellet Diameter: 1-12 mm
- Main Equipment: mixer, extruder, dryer.

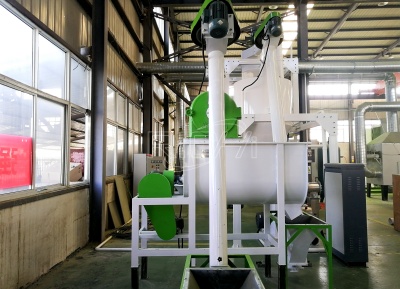

0.3-0.5 T/H Fish Feed Production line mixer machine In Rwanda
The client has abundant agricultural resources. They want a fully automated production line to produce both fish feed and pet feed. We dispatched three engineers to assist the client in completing the design and installation of the entire production line. The client is very satisfied with this cooperation.
- Raw materials: corn, wheat, barley, fish meal.
- Finished Pellet Diameter: 4-12 mm
- Main Equipment: mixer, extruder, cooler.
Advantages Of Fish Feed Mixer Machine
High Nutrient Conversion Rate
Our fish feed mixing machine is equipped with a multi-layer conditioner and a large extruder cavity. The starch gelatinization degree can maintain a level above 90%. Through extrusion and oil spraying, the finished pellets are nutritious and highly palatable. It will better promote the nutritional absorption rate of fish.
Overload Protection Device
The RICHI fish feed mixer equipment is equipped with a safety lock device. When the pressure or resistance is excessive, it will automatically shut off the power. This design can effectively prevent damage to critical components and give the machine a longer service life.
Low Energy Consumption
Our fish feed mixing mill is made of wear-resistant alloy. This design provides our machines with a lower failure probability, lower maintenance costs, and longer service life. The machine can operate stably even under high-pressure conditions.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
