Pig feed pellet Machine
Production process video of pig Feed Pellet machine
High Raw Material Adaptability & Application Versatility.
The RICHI pig feed machine can process various raw materials, including wheat, barley, brown rice, wheat bran, rice bran, rapeseed meal, peanut meal, minerals, premix, etc. From family , small, medium, and large farms, to feed processing plants, the machine will highly match your production needs. Our pellet mill can produce feed pellets with diameters of 2-12 mm for pigs at different growth stages. You can choose different formulas according to your needs. The video shows its pelleting process.
Production Capacity:
1-40T/H
Pellet Diameter:
2-12mm
Parameters Of
pig Feed Pellet Machine
We have a minimum output capacity of 1.0 T/H and a maximum of 40 T/H. You can select the models that perfectly match your production requirements.
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Output (t/h) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Motor Power (kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Finished Pellet Diameter (mm) | 2-12 | |||||||
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
All the machine mentioned above have their own rated capacities for complete production lines. Actual output capability may vary depending on the pre-processing of raw materials and batching stages.
types of pig Feed we can produce
Pigs at different growth stages have different nutritional requirements and preferred pellet sizes. The RICHI pig feed pellet machine can produce various feed pellets precisely tailored for piglets, fattening pigs, breeding pigs, and sows. The following applications may offer you some reference.
Piglet feed
The digestive systems of piglets are not yet fully developed. They usually require more nutritional formulations and smaller pellets. Our pig feed pellet mill can produce powdered, granular, and crushed feed for different feeding needs.
Fattening Pig feed
Precise feed formulation can promote healthy growth of fattening pigs. Our machine can produce many types of feed pellets and premixes. The finished feed has higher palatability and more balanced nutrition.
Breeding Pig feed
The breeding pigs can eat large feed pellets because of their fully developed digestive system. The RICHI pig feed machine can produce feed pellets varying from 2mm to 12mm in diameter. They can match the feeding needs of breeding pigs.
Main Components
of pig feed pellet Machine

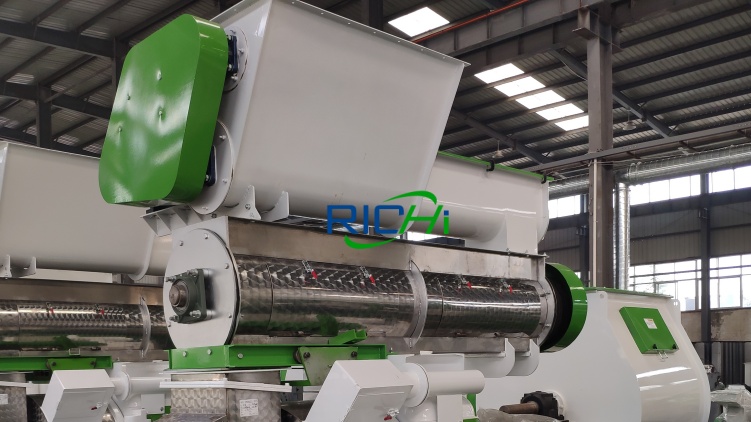

variable frequency feeder
The RICHI variable frequency feeder is equipped with a variable frequency motor. When the feeding speed is too fast or too slow, you can adjust it at any time without changing the voltage. This will efficiently reduce raw materials consumption.

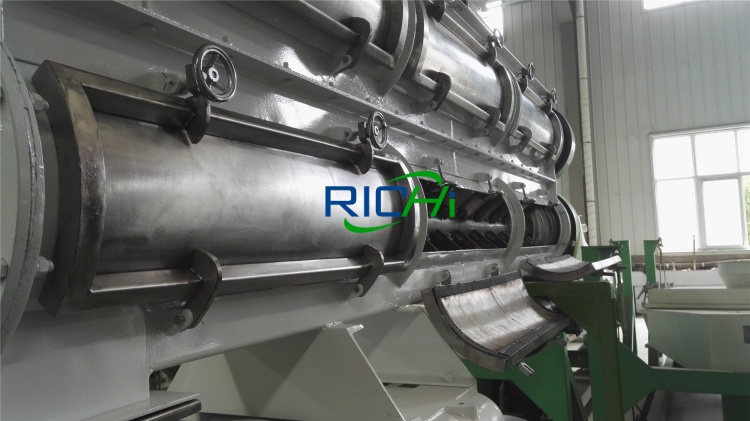

Conditioner
The conditioner will help raw materials be mixed fully with injected steam or water. Then the softness and ripening degree are very suitable for granulating. In addition, the high temperature conditioning effectively eliminates harmful bacteria such as E. coli and Salmonella.

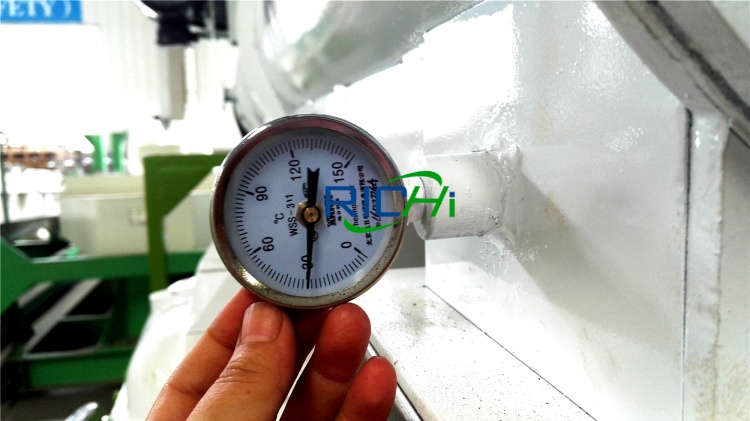

Thermometer
The thermometer will automatically detect the temperature of conditioned raw materials. If the temperature is around 80°C, the raw materials are suitable for pelleting. Otherwise, the raw materials will be reconditioned.

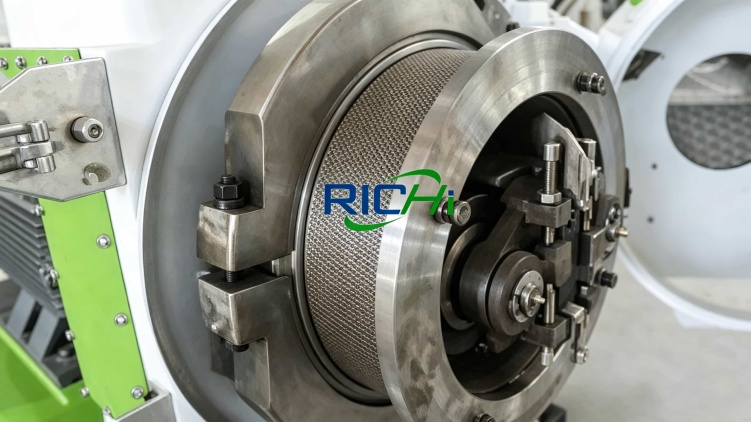

ring die & roller
The conditioned raw materials will form dense cylindrical pellets under the high-pressure extrusion of the ring die and rollers. Different specifications of the ring die and rollers will bring different pellet sizes.

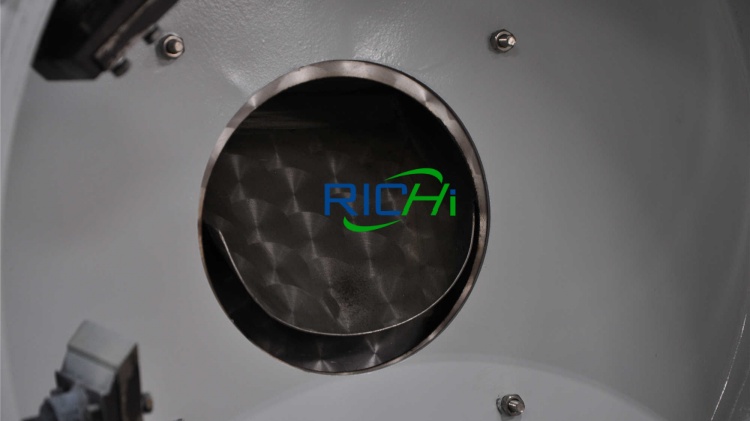

Cutting Blade Device
Our cutting blade device is mainly used to control the pellet lengths. You can select different sizes based on different production needs. In addition, we can customize the shape of the cutting blade device.

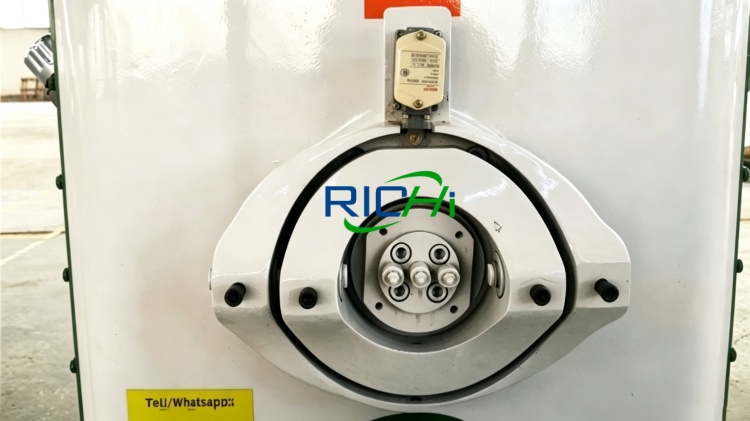

Safety Lock Device
Our pig feed pellet mill is equipped with a safety lock device. It will automatically shut down and disconnect the power, preventing serious damage to key parts.
global project Cases
Our pig feed pellet machine have been widely used in many countries and regions. The following cases may offer a valuable reference for your equipment selection and application needs. If you have specific needs, we can also customize relevant equipment for you.

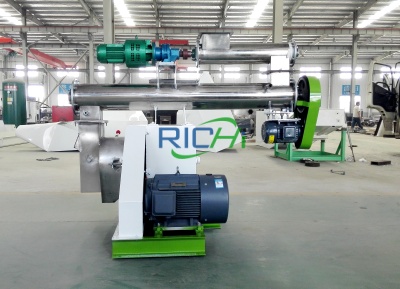

1-2.5T/H pig feed making machine In Tanzania
The client has a medium-sized family farm. The main local crops are corn and cassava. They want a highly automated pellet machine that can meet the feeding needs of livestock at different growth stages. The pellet machine can produce various animal feed pellets. Apart from pigs, the finished pellets can also be used for chicken, sheep, and cattle.
- Raw materials: corn, cassava, sorghum.
- Finished Pellet Size: 2-8 mm
- Feed Pellet Mill Model: SZLH-320

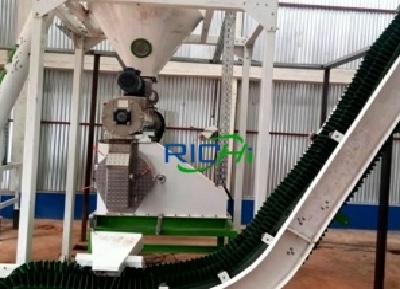

2-3T/H pig feed production line In Argentina
This is a local feed processing line that uses mainly corn and soybeans to produce animal feed pellets. The client wants an automated production line for pigs, cattle, sheep, and other livestock. We provide them with a crusher, mixer, granulator, and conveying system. This line has stable production capability. The finished pellets maintain a high formation rate.
- Raw materials: corn, barley, soybean meal.
- Finished Pellet Size: 5-10mm
- Feed Pellet Mill Model: SZLH-320

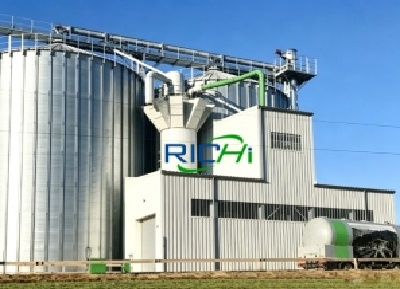

8-12T/H pig feed processing Plant In Bolivia
This is a local animal feed processing plant. The client wants a complete pig feed pellet production line. They want to produce pellets with varying sizes to meet the nutritional needs of pigs at different growth stages. We designed the entire production line for them. The production line can achieve automatic production. Its production efficiency is strong and stable.
- Raw materials: corn, wheat, sunflower meal.
- Finished Pellet Size: 2-12mm
- Feed Pellet Mill Model: SZLH-420
Advantages of Pig Feed Pellet Machine
Low-cost Energy Consumption
The pig feed pellet mill uses a high-precision gear transmission system, equipped with a high-efficiency Siemens motor and a stainless steel design. All designs can help reduce failure rates and maintenance costs.
High Nutrient Absorption Rate
The finished feed pellets contain a variety of nutrients. After mixing and high‑temperature conditioning, the finished feed pellets are more fragrant and crispy, minimizing feed sorting. It will efficiently reduce the digestive burden on pigs and minimize nutrient loss.
Excellent Production Performance
The RICHI pig feed making machine can maintain stable and efficient output. We adopt high-quality imported bearings. They are very wear-resistant and durable with a low failure rate. Our pellet machine can consistently operate for over 12 hours even under a high preesure environmental.
why choose RICHI machinery
Founded in 1995, RICHI Machinery has been committed to innovating and precision engineering, serving thousands of clients in over 140 countries. We have accumulated extensive experience in cross-regional projects. We provide customized solutions according to specific conditions, including but not limited to pellet processing standards, raw material properties, and climate conditions.
30+
Years Of Experience
CE、ISO
International Certification
140+
Countrys & Regions
60000m²
Factory Area
Innovation Focused & Professionally Certified & Precision Engineered.
Our independent R&D center is staffed with lots of professional and mature experts and innovators. We focus on developing pellet mills and complete production lines. RICHI owns advanced processing and testing equipment, such as large-scale CNC plasma cutting machines and CNC dynamic balancing machines. With various advanced equipment, we ensure the efficient transformation of technical innovations and high-quality pellet production.
Authorized Certifications Of RICHI Machinery
We have obtained many authorized certifications, including CE, BV, AETX, and ISO. Our professional expertise and technical capabilities fully meet the latest industry standards.
Previous
NEXT
service support of RICHI machinery
RICHI is more than just a single-piece equipment supplier. We can provide you with integrated service support tailored to your specific needs.
Project Planning & Design
We will provide a preliminary project planning and design scheme based on your site conditions, production capacity requirements, and production targets.
Equipment Selection
We have pellet mills with various
specifications that are available on our website. We will recommend the equipment that perfectly matches your needs.
Logistics & Transportation
We have cooperated with safe and efficient logistics service providers. We ensure that your equipment will arrive safely and quickly.
Equipment Installation & Commissioning
We will dispatch experienced and
qualified engineers to help you install and commission the equipment, ensuring it works efficiently.
After-Sales Training
After installation, our technical engineers will provide detailed operation training. We need to ensure that your team is fully capable of operating the equipment independently.
Process Optimization & Equipment Maintenance
We will dispatch professional
engineers to help you optimize and maintain the equipment based on the contract terms.
